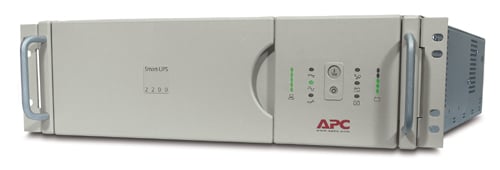

American Power Conversion SU2200R3X167
2200VA 120V/230V 3RU Smart UPS with 120V Out

OUR PART #:  SU2200R3X167

APC's SU2200R3X167 Smart UPS offers the following specs and features: 1600 Watts /2200 VA Input 120V, 230V /Output 120V Interface Ports: DB-9 RS-232...
Learn More
Our Price: $1,888.90
List Price: $2,620.00
You save 28%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SU2200R3X167
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

APC's SU2200R3X167 Smart UPS offers the following specs and features:

  • 1600 Watts /2200 VA
  • Input 120V, 230V /Output 120V
  • Interface Ports: DB-9 RS-232, SmartSlot
  • 3RU Rack Height

Includes:

  • CD with software
  • USA detachable power cord
  • Smart UPS signalling RS-232 cable
  • User Manual

Output:

  • Output Power Capacity: 1600 Watts / 2200 VA
  • Max Configurable Power: 1600 Watts / 2200 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Crest Factor: --
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: (8) NEMA 5-15R  NEMA 5-15R

Input:

  • Nominal Input Voltage: 120V, 230V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-20P  NEMA 5-20P
    Schuko CEE 7 / EU1-16P
    British BS1363A
    Italian CEI 23-16
  • Cord Length: 6 feet (1.83 meters)
  • Input voltage range for main operations: --V
  • Input voltage adjustable range for mains operation: --V

Batteries & Runtime:

  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 3 hours
  • Replacement Battery: RBC12
  • RBC™ Quantity: 1

Communications & Management:

  • Interface Ports: DB-9 RS-232, SmartSlot
  • Available SmartSlot™ Interface Quantity: 1
  • Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO): Optional

Surge Protection and Filtering:

  • Surge energy rating: 480 Joules
  • Filtering: Full-time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

  • Dimensions: 5.2" H x 19" W x 25" D (132 x 483 x 635 mm)
  • Rack Height: 3RU
  • Net Weight: 103.00 lbs. (46.82 kg)
  • Shipping Weight: 123.00 lbs. (55.92 kg)
  • Shipping Dimensions: 10" x 24.5" W x 37.5" D (254 x 622 x 953 mm)
  • Color: Beige

Environmental:

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10,000 feet (0-3,000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50,000 feet (0-15,000 meters)
  • Audible noise at 1 meter from surface of unit: 47.00 dBA
  • Online Thermal Dissipation: 275.00 BTU/hr
  • Protection Class: --

Conformance:

  • Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778
  • Standard Warranty: 2 years repair or replace, optional on-site warranties available, optional extended warranties available
  • Equipment protection policy: --

Sustainable Offer Status:

  • RoHS: Compliant
  • PEP: Visit www.apc.com for more information
  • EOLI: Visit www.apc.com for more information
  • Other Environmental Compliance: China RoHS
