Cables To Go 50227 15' Select VGA + 3.5mm M/M A/V Cable

OUR PART #: 50227

Copied to clipboard

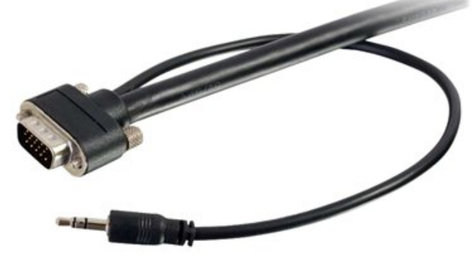

Cables To Go 50227 15' Select VGA + 3.5mm M/M A/V Cable Image 1
Cables To Go 50227 15' Select VGA + 3.5mm M/M A/V Cable
Our Price: $48.99

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$2/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The C2G Select VGA + 3.5mm A/V Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536) and support for stereo audio. The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. The 3.5mm audio pigtail on the source side of the cable extends 24 inches away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where the VGA video output and 3.5mm audio output are commonly placed on opposite sides. The 3.5mm audio pigtail on the display side of the cable extends 10 inches away from the VGA connector providing easy connectivity without excess cabling. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, ensuring that the content from the source is sent at the optimal resolution for the display.

Specifications:

  • Connector 1: (1) HD15 Male, (1) 3.5mm Stereo Male
  • Connector 2: (1) HD15 Male, (1) 3.5mm Stereo Male
  • Color: Black
  • Warranty: Lifetime
  • Weight: 1.180 LB
  • Length: 15.00 Foot
  • Electrical Characteristics
    • Maximum resolution supported: 2048x1536
    • Impedance: 75±5O
    • Capacitance: 58pF/m
    • Conductor resistance at 20°C: 30AWG - 376.96O/km, 28AWG - 237.25O/km, 24AWG - 98.25O/km
    • Insulation resistance: 10MO/km at 20°C DC 500V
    • Dielectric strength: AC 500V/1 minute
  • Physical Characteristics
    • Voltage rating: 30V
    • Minimum bend radius: 85mm
    • 3.5mm breakout length: Source - 24in, Dispaly - 10in
  • Conductor (3 conductors)
    • Conductor type: 30AWG (7/0.127) (tinned copper(OFC))
    • Shield: Aluminum foil (100% coverage)
    • Drain wire: 26AWG (7/0.20)(tinned copper)
    • Insulation: Foamed PE
    • Covering: PVC
  • Conductor (9 conductors)
    • Conductor type: 28AWG(7/0.20) (tinned copper(OFC))
    • Insulation: SR-PVC
  • Conductor (2 conductors)
    • Conductor type: 24AWG (7/0.20) (tinned copper(OFC))
    • Shield: Aluminum foil (100% coverage)
    • Drain wire: 24AWG (7/0.20) (tinned copper)
    • Insulation: Foamed PE
    • Covering: PVC
  • Overall cable construction
    • Drain wire: 26AWG (7/0.20) (tinned copper(OFC))
    • Foil shield: Aluminum foil (100% coverage)
    • Braided shield: 16/7/0.12±0.008mm (tinned copper(OFC)) (85% coverage)
    • Jacket: CMG
  • Connectors
    • Connector types: VGA (HD15), 3.5mm
    • Plating: Nickel
    • Housing: Black PBT
    • VGA connector dimensions: 13.1 x 31.2 x 34.0mm
