Cables To Go 41403

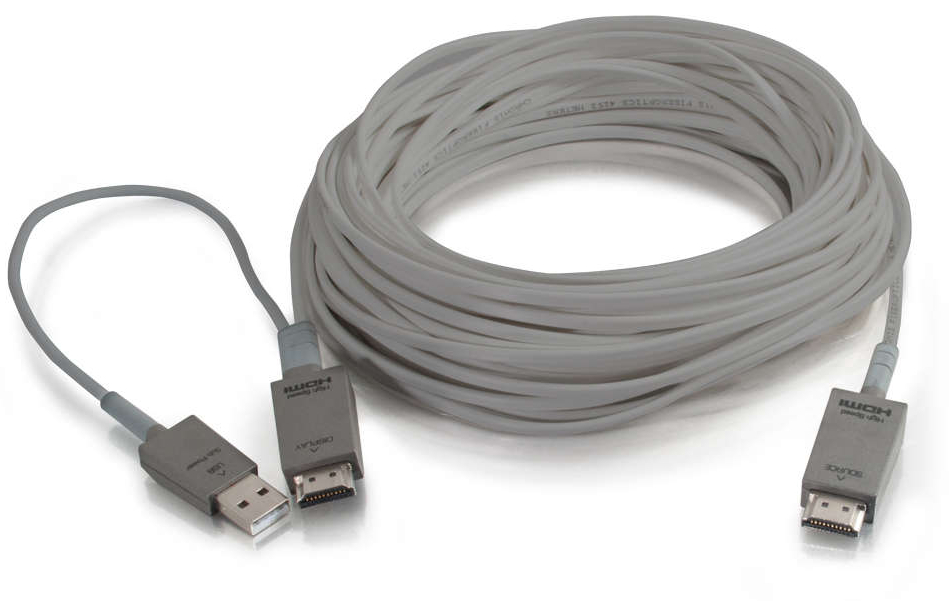

20m (65.6ft) TruLink High Speed HDMI Active Optical Cable - AOC

OUR PART #:  41403

The 41403 is a TruLink optical cable that extends HDMI signals over optical cable and supports the latest HDMI features including Ultra HD, 4k at 50/60 (2160p)...
Learn More
Sale Price: $93.92
List Price: $299.00
You save 69%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 41403
Qty:
In Stock
Similar Products

The 41403 is a TruLink optical cable that extends HDMI signals over optical cable and supports the latest HDMI features including Ultra HD, 4k at 50/60 (2160p), up to 32 audio channels and wide angle theatrical 21:9 video aspect ratio.

The TruLink High Speed HDMI AOC is the perfect solution for exteding HDMI signals in classrooms, conference rooms, healthcare facilities, houses of worship and other commercial environments. Utilizing AOC technology that performs similar to traditional copper cabling, the optical fiber construction between the connectors provides optimum performance and easy installation. The AOC technology delivers several advantages which make it a smart choice in select installations.

The cable diameter is smaller than copper and more flexible which makes it easier to install in tight spaces. Constructed from fiber strands, this cable reduces the risk of EMI/RFI so performance is stable when used in typically high interference environments such as data centers, surgical theaters or manufacturing facilities where high resolution and consistent display are critical. The TruLink AOC features an added USB connector that allows the AOC to draw power from displays that have a USB port. Optionally, the AOC may also be powered from an AC to USB adapter (#22328).

With HDMI, users can take advantage of the latest advances in HDMI technology including:

  • 4K @ 50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
  • 3D video, Deep Color and x.v. Color™
  • Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • Simultaneous delivery of dual video streams to multiple users on the same screen
  • Simultaneous delivery of multi-stream audio to multiple users (up to 4)
  • Support for the wide angle theatrical 21:9 video aspect ratio
  • Dynamic synchronization of video and audio streams
  • CEC extensions for control of consumer electronics devices through asingle control point

The cable is the ideal extension solution for digital signage applications in retail, hospitality and commercial settings. Combine the AOC with wall plates for a clean, professional connectivity solution that can be used with projectors in classrooms, conference rooms or training rooms.

Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable. Also - This cable must be powered by a USB port on the display, or by a separate AC to USB power adapter like C2G's part number 22328.

Features:

  • Resistant to EMI/RFI
  • High speed HDMI
  • USB powered - 5V DC (receiver end)
  • Connector 1: (1) HDMI Male
  • Connector 2: (1) HDMI Male, (1) USB-A Male

Specifications:

Video

  • Physical bandwidth - 10.2Gbps (3.4Gbps per channel)
  • Refresh Rate Supported - 120Hz at 1080p, 24bit color depth
  • HDMI Features Supported - 1080p video resolution, 3D, Deep Color, x.v.Color™, Dolby® True HD, DTS-HD Master Audio, HDMI-CEC, HDCP

Electrical

  • Transmitter
  • Power Input - 5V DC
  • Operating Current - 13mA
  • Power Consumption - 0.65W

Receiver

  • Supplemental Power Connector - USB Type A
  • Power Input - 5V DC
  • Operating Current - 230mA
  • Power Consumption - 1.15W

Physical Characteristics

HDMI Connectors

  • Connector Dimensions (HxWxD) - 11.54 x 19.57 x 58mm / 0.45 x 0.77 x 2.28in.

USB Connector

  • Connector Dimensions (HxWxD) - 8.78 x 17.17 x 50mm / 0.35 x 0.68 x 1.97in.

Cable Assembly

  • Connector Pull Strength - 10kg / 22.05 lbs.
  • Minimum bend radius - 3mm / 0.12"
  • Operating temperature range - 0° - 50°C
  • Operating humidity range - <(><<)> 95% relative humidity
  • Storage temperature range - -30° - 50°C
  • Storage humidity range - 10 - 85% relative humidity
  • Jacke - PVC
