Magma EB1T
1-Slot PCI Express Over Thunderbolt Expansion Chassis

OUR PART #:  EB1T

The most user friendly Thunderbolt PCIe expansion chassis for connecting one PCIe card.
Learn More
Our Price: $579.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma EB1T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

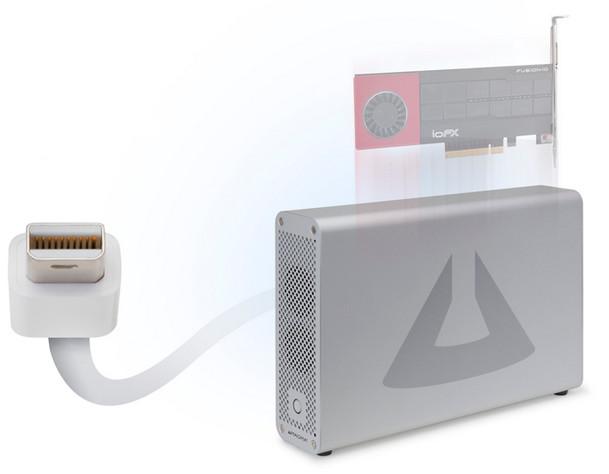

The most user friendly Thunderbolt PCIe expansion chassis for connecting one PCIe card. Twice the speed of USB 3.0 and 12x faster than Firewire - ExpressBox 1T is the fastest and easiest solution for connecting a PCIe card using the power of Thunderbolt Technology.

Enhance the power of your Thunderbolt equipped computer with the Magma ExpressBox 1T and harness lightning-fast throughput over a single cable via Thunderbolt technology. ExpressBox 1T enables serious professionals to use specialty PCIe cards with any Thunderbolt-equipped computer, so that you can achieve high performance wherever your work takes you. Add a PCIe card to ExpressBox 1T and your computer turns into a powerful workstation capable of HD video capture and editing, media transcoding, audio processing, data processing, or high-speed storage and networks.

ExpressBox 1T offers the largest card length slot (7.75") among all half-length 1-slot Thunderbolt chassis on the market, giving your Mac the power to achieve maximum performance with any compatible PCIe card. Whether your mission involves professional video capture, audio interface, SAS & SATA HBA, 8Gb Fibre Channel, 10 Gigabit Ethernet, or a RAID controller card, Magma's family of Thunderbolt products provide the perfect outside-the-box solution for your project.

Need a quiet work environment for your recording or video projects? ExpressBox 1T features quiet ventilated cooling with two user-controlled fans, allowing you to adjust fan speed and noise level based on your working environment needs.

ExpressBox 1T offers quick and easy installation for its users. Open the chassis with two thumbscrews, no tools required. The card carriage slides right out, providing quick access to the PCIe slots and easy installation of cards. We designed our products with optimal ease of access so that you can be up and running in seconds.

ExpressBox 1T protects your valuable PCI Express cards in a heavy duty chassis while providing lightweight portability, so you can take high performance anywhere your work requires. The extruded aluminum shell provides a strong, protective housing while also removing heat from the cards inside. The sleek design of the ExpressBox 1T matches elegantly with your Thunderbolt equipped Mac, ensuring that you stay classy with a Magma chassis. Magma’s expertise in developing products that extend PCI and PCI Express signals over a cable and outside the computer provides a reliable foundation for producing rock solid products that offer the highest performance even in the most demanding configurations.

Magma EB1T Includes:

  • Power indicator
  • PCI Express card slot opening
  • Thunderbolt ports
  • Power cord socket
  • Easy installation thumbscrew
  • Power Supply

Magma EB1T Features:

  • Attach a PCIe card to Thunderbolt equipped mobile andall-in-one computers
  • Transfer data at up to 10 Gbps. That’s 2x faster thanUSB 3.0 and 12x faster than FireWire 800!
  • Daisy-chain up to six Thunderbolt devices
  • Use any compatible half-length PCIe card for HD videocapture, audio interface, SAS/SATA HBA10 Gigabit Ethernet, 8Gb Fibre Channel,SSD data transfer, and more!
  • Connect to high-resolution display, such asDisplayPort, mDP, HDMI, and VGA monitors
  • Easy Plug and Play installation
  • Supports any compatible x1, x4, x8 or x16 PCIe card
  • Two Thunderbolt connectors
  • Two cooling fans with speed control
  • Rugged extruded aluminum enclosure
  • External 65W?Power Supply

Magma EB1T Specifications:

  • Technology:
    • Backplane:
      • (1) PCI Express Slot  (For cards that are 7.75" or less
      • Physical - x16 PCIe 2.0
      • Electrical - x4 PCIe 2.0 (Thunderbolt spec)
    • Cable:  Thunderbolt (Sold Separately)
    • Interconnect Bandwidth:  10 Gbps (1.25GBps)Bi-directional
  • Enclosure:
    • Material:  Heavy-Duty Extruded Aluminum
    • Dimensions (LxWxH): 9.5” x 2.3” x 6.9” (249mm x 58mm x 174mm)
    • Weight: 3.0 lbs (1.4 kg)
    • System Cooling:  (2) Fans with Speed Control
    • Power Supply:  65W Power Supply, 100-240 VAC, 47-63HZ
  • Environmental:
    • Ambient Temperature  0º to 50º C
    • Storage Temperature  -20º to 60º C
    • Relative Humidity  5% to 85% non-condensing
  • Compliance:
    • Regulatory
      • FCC Class A Verified
      • RoHS Compliant
      • CE Compliante
  • Supported Operating Systems: Mac OS X 10.6.8 orhigher
  • Warranty: 30 Day Money back guarantee 1 year return tofactory
