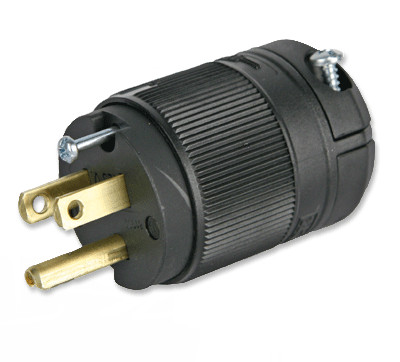

Lex Products Corp X515P
15A 125 VAC NEMA 5-15 Lex-Loc Edison Plug

OUR PART #:  X515P

15 Amp, 125 VAC, 2 Pole, 3 Wire, NEMA 5-15 LexLoc Edison Plug.
Learn More
Our Price: $6.21
List Price: $8.95
You save 31%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp X515P
Qty:
Similar Products

15 Amp, 125 VAC, 2 Pole, 3 Wire, NEMA 5-15 LexLoc Edison Plug.

Applications:

  • Theatrical
  • Motion Picture
  • Live Events
  • Industrial
  • Military
  • Extension cords
  • New or replacement appliance
  • Lamp and luminaire plugs

Lex Products Corp. X515P Features:

  • Cage clamp terminations cannot loosen, eliminatingthe main cause of device failure
  • Does not require tools; simply finger-open and closethe terminals
  • Two fast-travel assembly screws save labor.
  • All-black color blends into scenery.
  • External cord clamp provides enhanced strain relief for a wide range of cord sizes.

Lex Products Corp. X515P Specifications:

  • Rating: 15 Amp, 125 VAC
  • Agency Approvals: UL Listed
  • Lex-Loc™ devices meet or exceed Hospital Grade U.S.tests. Devices conform to U.S. Standards for hospital equipment, #498 and#544, including:
    • Abrupt plug removal (parallel to wall) test
    • Ground contact temperature test
    • Ground resistance test
    • Grounding contact overstress test
    • Assembly security test
    • Mold stress relief test
    • Crush test
    • Cord grip strain relief tests
    • Static cord pull test
    • Rotary cord pull test
    • Impact resistance test
    • Mechanical drop test
  • CONSTRUCTION
    • Housing and Body: Nylon – Tough and resistant to a wide range of chemicals. UL Recognized for 125°C continuous use. UL 94V-2 Flammability Index. Beveled design to resist snagging.
    • Blades and Contacts: Solid brass for excellent conductivity
    • Terminal Cover: Clear polycarbonate – terminals visible
    • Assembly Screws: Two U-drive combination slot/crosshead
  • MECHANICAL
    • Accommodates 18/3 SJ through 10/3 S cable
    • Cord Accommodation (with inserts): .300''- .430''
    • Cord Accommodation (inserts removed): >.430''- .655''
  • ELECTRICAL
    • Dielectric Withstand Voltage: >3,000V
    • Heat Rise: Maximum 30°C after 100 cycles at 150% of rated current
    • Current Interrupting: Yes
    • U.L.Listed File E57672
    • C.S.A.Cer tified File LR81290
