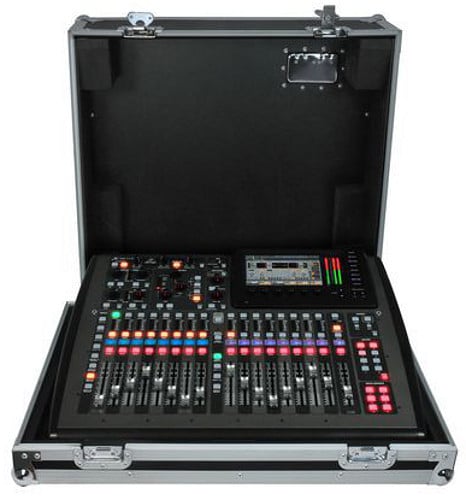

Behringer X32 COMPACT TP
40-Input 25-Bus Digital Mixing Console with Touring Case

OUR PART #:  X32-COMPACT-TP

Behringer's X32 COMPACT provides the best features of the X32, such as MIDAS preamps, easy-to-use GUI...
Learn More
Behringer X32-COMPACT-TP 1
Behringer X32-COMPACT-TP 2
Behringer X32-COMPACT-TP 3
Behringer X32-COMPACT-TP 4

Click a thumbnail to see more images. (6 total)

Our Price: $1,699.99
List Price: $2,549.99
You save 33%!
Write the first review.
Behringer X32 COMPACT TP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Behringer's X32 COMPACT provides the best features of the X32, such as MIDAS preamps, easy-to-use GUI, customizable LCD scribble strips and high-quality onboard FX, in a more compact package - perfect for project studios, small to mid-sized performance venues, or houses of worship.

When Behringer began development on the X32 COMPACT, they called on their sister companies, MIDAS and KLARK TEKNIK, recognized the world over for their digital consoles and EQ/FX processing, for implementation support. The programmable, high-grade micpreamps found in the X32 COMPACT are based on a genuine MIDAS design, all the way down to their A/D converters. The resulting design ensures superior common mode rejection ratio (CMRR) and extremely low harmonic distortion (THD). The X32 COMPACT is an amazingly clean amalgam of high technology merged with superb user-friendly features.

Behringer also received brilliant support from MIDAS and KLARK TEKNIK in designing X32 COMPACT’s GUI (graphical user interface), a major advancement in digital mixing made easy, productive, and well… fun! They also drew on their extensive experience in FPGA (Field Programmable Gate Array) coding for rock-solid, ultra-low latency digital channel patching—giving the X32 COMPACT the capacity to handle up to 168 sources on 168 destinations, including the two AES50 ports. You can expect to see more collaboration between BEHRINGER and MIDAS in the very near future.

Ultimate connectivity remains the battle cry of the X32 COMPACT with its 40 inputs, 25 buses, 16 programmable MIDAS-designed mic preamps, FireWire and USB 2.0 recording capability. Not sure which X32 is right for you? They totally get it. That’s why the entire X32 family is designed to be beautifully scalable through the powerful AES50 ports built right in. Connect the powerhouse S16 digital snakes to these inputs to add an additional 16 mic preamps to your setup.

Need another X32 for side of stage or the broadcast control booth? X32 COMPACT packs all the features with the same great 7" TFT screen and customizable LCD scribble strip so you can take on the world of sound with all the firepower you’ll ever need – without hauling a world of outboard gear and analog snake cables.

New Features with Firmware Version 3.04:

  • Auto-mix on first 8 input channels
    • X-TOUCH control over X32
    • Crossover filters added to main left/right mix and main mono busPhase inversion added on routing page to all outputs
    • New X32 Edit GUI
    • X32 Edit can go full screen
  • X32 Edit can open multiple windows and use multiple screens
  • X32 Edit now has two user definable banks of faders

Behringer X32 COMPACT TP Features:

  • Compact 40-input channel, 25-bus digital mixing console for Studio and Live application
  • 16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
  • 17 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
  • 8 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
  • Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
  • 32 x 32 channel audio interface over FireWire and USB 2.0, with DAW remote control emulating HUI and Mackie Control
  • iPad and iPhone apps for professional remote operation available free of charge—no host PC required
  • High-resolution 7" day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
  • 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready* via dual AES50 ports, featuring KLARK TEKNIK's SuperMAC networking capability for ultra-low jitter and latency
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
  • Additional user-definable control section allows to set up short-cuts to your favorite views or parameters
  • ULTRANET connectivity for Behringer's P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI
  • Networked remote control for show setups with on-screen software editor via Ethernet
  • Built-in expansion port for audio interface cards or digital networking bridges
  • Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
  • Conceived and designed by Behringer Germany
    *The P-16 Personal Monitoring System and Digital Snake are NOT included.

Behringer X32 COMPACT TP Specifications:

  • Processing:
    • Number of Processing Channels:
      • 32 Input channels
      • 8 Aux In channels
      • 8 FX Return channels
      • 16 buses
      • 6 matrices
      • Main LRC
    • Internal Effects Engines, true stereo/mono: 8/16
    • Internal Total Recall Scenes (inc. preamp and fader): 100
    • Signal Processing: 40-bit floating point
    • A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-bit @ 44.1/48kHz, 114dB dynamic range
    • Local I/O latency (local in > console processing> local out): 0.8ms
    • Networked I/O Latency (stagebox in > console processing > stagebox out): 1.1ms
    • Total number of accessible input sources/outputs: 150/160
  • Connectors
    • XLR Inputs, programmable mic preamps, designed by MIDAS: 16
    • Talkback Mic Input, XLR: 1 ext. (plus internal mic)
    • RCA Inputs/Outputs: 2/2
    • XLR Outputs: 8
    • Monitoring Outputs, XLR/1/4" TRS balanced: 2/2
    • Aux Inputs/Outputs, 1/4" TRS balanced: 6/6
    • Phones outputs, 1/4" TRS: 2 stereo
    • Digital AES/EBU output, XLR: 1
    • AES50 ports, SuperMac: 2
    • Expansion card (optional ): 32 channel audio input/output, various standards
    • P-16 Connector, ultranet (no power supplied ): 1
    • MIDI Inputs/Outputs: 1/1
    • Ethernet, RJ45, rear panel, for remote control: 1
    • USB Type A, top panel, for audio and data export/import: 1
    • USB Type B, rear panel, for system updates: 1
