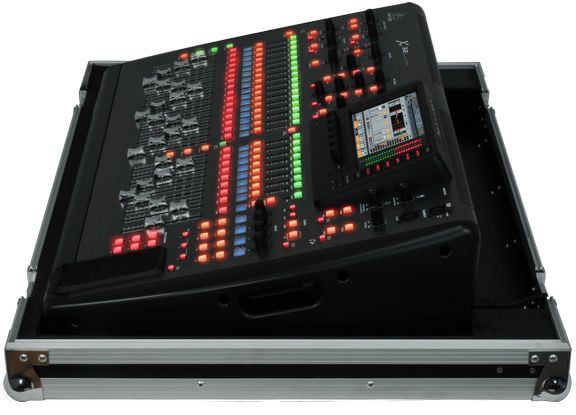

Behringer X32TP 40-Channel 25-Bus Mixing Console

OUR PART #: X32-TP

Copied to clipboard

The BEHRINGER X32 digital mixing console lets you focus on your event, instead of navigating a vast sea of knobs, buttons and menus like most other live digital mixers. ...Read more

Behringer X32TP 40-Channel 25-Bus Mixing Console Image 1
Behringer X32TP 40-Channel 25-Bus Mixing Console Image 2
Behringer X32TP 40-Channel 25-Bus Mixing Console Image 3
Behringer X32TP 40-Channel 25-Bus Mixing Console Image 4
Behringer X32TP 40-Channel 25-Bus Mixing Console
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The BEHRINGER X32 digital mixing console lets you focus on your event, instead of navigating a vast sea of knobs, buttons and menus like most other live digital mixers. X32 is intuitive and powerful with 40 processing channels and 25 mix buses, all equipped with serious signal processing (dynamics, EQ and inserts), which can be configured quickly to meet the demands of virtually any gig, large or small.

Use any combination of the local 32 console mic inputs or the networked digital snake inputs on stage—their audiophile quality programmable preamps always ensure full control, purity and impeccable dynamics. The dedicated channel strip section puts 17 backlit buttons and 13 rotary controls with LED-collars right at your fingertips for nuanced adjustment of each channel’s compressor, 4-band parametric EQ and much more. Each input and output channel strip features its own color backlit 128x64 graphic LCD, which provides vital channel information at-a-glance.

The onboard virtual FX Rack provides access to eight true-stereo, multi-effects processors (16 mono) including delay, chorus, dynamics—and it can run 4 production quality true-stereo reverbs concurrently with 8 channels of 31-band graphic equalization, all without the need for expensive, space-consuming external hardware.

I/O abounds with 32 high-end programmable mic preamps; 6 Aux Inputs on 1/4" TRS; 16 balanced XLR Outs, plus balanced Control Room outputs on both XLR and 1/4" TRS connectors. A single CAT5 cable from FOH to the stage can receive up to 48 channels of audio input—and deliver all bus outputs, along with 16 individual monitor feeds for BEHRINGER’s brand new P16 personal monitoring system.

Thanks to the netbook-resolution, 800 x 480 high-contrast color TFT display, you are never more than one or two button presses away from any of X32's eight highly intuitive control screens. Once you select the desired function, dedicated rotary/push encoders allow you to set parameters and source I/O assignment, without the need to “drill down” through multiple layers of menus or page through a complex owner’s manual.

Signals can be assigned to eight DCA groups (Digitally Controlled Amplifier), which provides simultaneous group level control via dedicated 100 mm motorized faders. The audio engineer can communicate with the talent by means of the Talkback section's onboard microphone or an external mic of their choosing. X32's scene management allows snapshots of high-level production mixes to be captured and recalled for future use (you can even save them to a USB stick). X32 even has a dedicated custom control section with user-definable knobs and buttons where you can create your own set of controls, making it easy to access frequently used functions “on-the-fly.”

When Behringer began development on the X32, they called on their sister companies, MIDAS and KLARK TEKNIK, recognized the world over for their digital consoles and EQ/FX processing, for implementation support. The programmable, high-grade mic preamps found in the X32 are based on a genuine MIDAS design, all the way down to their A/D converters. The resulting design ensures superior common mode rejection (CMRR) and extremely low harmonic distortion (THD). The X32 is an amazingly clean amalgam of high technology merged with superb user-friendly features.

They received brilliant support from MIDAS and KLARK TEKNIK in designing X32's GUI (graphical user interface), a major advancement in digital mixing made easy, productive, and well… fun! They also drew on their extensive experience in FPGA (Field Programmable Gate Array) coding for rock-solid, ultra-low latency digital channel patching—giving the X32 the capacity to handle up to 168 sources on 168 destinations, including the two AES50 ports. You can expect to see more collaboration between BEHRINGER and MIDAS in the very near future.

X32 provides extensive output connectivity including 16 balanced XLR outputs, six balanced Line I/O on 1/4" TRS connectors; dual Phones outputs; Main LCR (Left, Center, Right) buses; 16 mix buses (also configurable as subgroups) with Inserts, 6-band parametric EQ and dynamics processing; plus six independent Matrix Mixes with Inserts, also with 6-band parametric EQ and dynamics processing.

The rear panel also sports two AES50 ports, each with KLARK TEKNIK’s rock-solid SuperMAC 48-channel I/O networking capability (for addressing a total of 96 inputs and outputs). Stereo digital output and MIDI are also supported, as well as ultra-low jitter, ultra-low latency communication between the X32 and digital snakes, remote stage boxes and outboard recording devices. A convenient top panel USB port is available for recording an uncompressed two-channel “board mix” straight to any standard USB thumb drive or for playing background music.

System expansion and connectivity capabilities are provided via an integrated card slot, which allows you to add up to 32 channels of digital audio I/O by way of IEEE1394 FireWire, ADAT TOSLINK or USB. It will even support standalone 16-channel uncompressed multi-track recording to an attached USB drive—without requiring a computer!

The BEHRINGER X32 digital mixing console sets a new benchmark for live sound mixing along with unprecedented value. Never before has any manufacturer offered a full-featured digital mixing console with such large input and output channel count, comprehensive processing, flexible expansion options and an intuitive user interface—all at a price point that has the competition shaking in their boots!

New Features with Firmware Version 3.04:

  • Auto-mix on first 8 input channels
    • X-TOUCH control over X32
    • Crossover filters added to main left/right mix and main mono bus
    • Phase inversion added on routing page to all outputs
    • New X32 Edit GUI
    • X32 Edit can go full screen
  • X32 Edit can open multiple windows and use multiplescreens
  • X32 Edit now has two user definable banks of faders

Behringer X32 Features:

  • 32-channel total recall digital mixer with fully programmable high-end microphone preamps and 16 mix buses, configurable as subgroups
  • Sophisticated microphone preamp designed by MIDAS, offers enhanced dynamic range and CMRR. This design brings the X32 into the realm of the finest studio consoles with ultra-low noise and sparkling response.
  • Main LCR and all 16 mix buses featuring inserts, 6-band parametric EQ's and dynamics processing
  • 16 analog XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external microphone
  • 48-channel digital snake ready via AES50 ports featuring KLARK TEKNIK's SuperMAC networking capability for ultra-low jitter and latency
  • The included XUF 32-Channel USB/FireWire recording card makes the X32 compatible with ProTools, Logic, Cubase, Studio One and nearly any other ASIO or Core-Audio compatible DAW, right out of the box.
  • Virtual FX rack featuring 8 true-stereo FX slots for high-end simulations of famous outboard gear such as KLARK TEKNIK DN780, EMT250 etc. (included)
  • Ultra-high power 32-Bit floating-point DSP features "unlimited" dynamic range, no internal overload and near-zero latency between in and outputs
  • 6 mute groups and 8 DCA groups on 8 dedicated 100 mm motorized faders
  • Super-easy user interface and dedicated channel strip section with direct access controls for intuitive workflow
  • High-resolution 7" color TFT with associated controls and individual RGB backlit graphic LCDs in every channel
  • 25 motorized 100 mm faders, extensive channels strip plus dedicated user-definable control section
  • USB flash connector providing file storage for uncompressed recordings plus show presets and system updates
  • Connectivity for BEHRINGER's P-16 Personal Monitoring System, AES/EBUstereo digital output and MIDI
  • 6 independent matrix mix buses featuring inserts, 6-band parametric EQs and dynamics processing
  • Adjustable line delays available on all physical in and outputs
  • Networked remote control or show setups with remoteeditor software via USB and Ethernet ports (included)
  • Powerful scene management for convenient handling of complex productions
  • High-quality components and exceptionally rugged construction ensure long life
  • Includes a deluxe dust cover.

Behringer X32 Specifications:

  • Processing:
    • Number of processing channels 32 input channels, 8 aux channels, 16 buses, 6 matrices, main LRC
    • Internal effects engines, true-stereo / mono 8 / 16
    • Internal total recall scenes (inkl. preamp and fader) 100
    • Signal processing 40-bit floating point
    • A/D-D/A conversion 24-bit @ 44.1 / 48 kHz, (Cirrus Logic A/D CS5368,D/A CS4385) 114 dB dynamic range
    • Local I/O latency 0.8 ms (local in > console processing > local out)
    • Networked I/O latency 1.1 ms (stagebox in > console processing > stagebox out)
  • Connectors:
    • XLR inputs, programmable 16 mic preamps, designed by MIDAS
    • Talkback mic input, XLR 1
    • RCA inputs/outputs 2/2
    • XLR outputs 8
    • Monitoring outputs XLR / ¼ " TRS balanced 2/2
    • Aux inputs/outputs, ¼ " TRS balanced 6/6
    • Phones outputs, ¼ " TRS 2 stereo
    • Digital AES/EBU output, XLR 1
    • AES50 ports, Supermac 2
    • Expansion card (optional) 32 channel audio input/output, various standards
    • P-16 connector, Ultranet (no power supplied) 1
    • MIDI inputs / outputs 1/1
    • Ethernet, RJ45, rear panel, for remote control 1
    • ADAT Toslink outputs (2x 8 Ch) —
    • USB Type A, top panel, 1 for audio and data export/import
    • USB Type B, rear panel, for system updates 1

Note

NOTE: iPhone shown is NOT included with purchase. For more information on this and other products, contact your Sales Representative.

NOTE: For further information on this console,refer to the attached Brochure under
