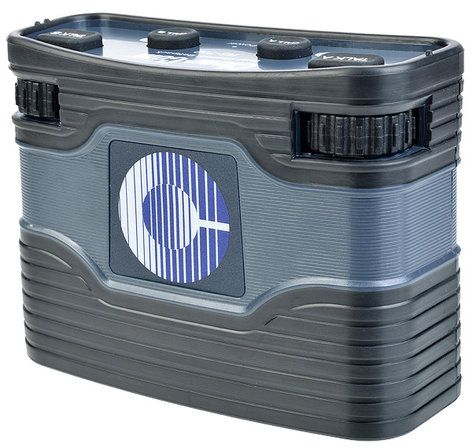

Clear-Com RS702
2-Channel Belt Pack

OUR PART #:  RS702

The Clear-Com RS-702 is a two-channel analog beltpack with an XLR-6 line connector and XLR-4M headset connector.
Learn More
Our Price: $396.00
List Price: $440.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com RS702
Qty:
In Stock

Similar Products

The Clear-Com RS-702 is a two-channel analog beltpack with an XLR-6 line connector and XLR-4M headset connector. A mic preamp with a dynamic range of 130 db enables intelligible voice communication for every volume level, from a whisper to a shout. The beltpack also combines high headroom, low-noise audio and shaped frequency contour (Clear-Com Sound) to deliver crystal-clear audio.

The RS-702 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.

ClearCom RS-702 Specifications:

  • Microphone Pre-Amplifier
    • Mic to Line (without limiter acting) Frequency Response: 280 – 15k Hz ± 3dB
    • Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
    • Microphone output to line – Distortion: <0.1%
    • Microphone output to line – Signal to Noise: >65dB
    • Clear-Com Sound: Yes
  • Headphone Amplifier
    • Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
    • Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
    • Headphone input from line – Distortion: <0.5%
    • Headphone input from line – Signal to Noise: >50dB
    • Earphone to Mic – Crosstalk: >80dB
    • Sidetone – Adjustment Range (-80db mic input): >45dB
  • Keypad Indicators
    • Power: Green LED
    • Talk A: Green LED
    • Call A: Orange LED
    • Talk B: Green LED
    • Call B: Orange LED
  • Connectors
    • Intercom Line: (2) 6-pin XLR–M–F Ch. 1 2-Wire
    • Intercom Channel
      • Pin 1: Common
      • Pin 2: PL Power (+28VDC)
      • Pin 3: PL Ch-B
      • Pin 4: PL Ch-A
      • Pin 5: Program Audio
      • Pin 6: Program Audio
    • Headset: 4-pin XLR–M
    • Headset Connector
      • Pin 1: Mic - (Mic Common)
      • Pin 2: Mic +
      • Pin 3: Spkr-
      • Pin 4: Spkr+ (&0.5*VCCDC Supply between Pin 4 & Pin 1)
    • Program Audio Input: XLR-6, pins 5 & 6
  • Power Requirements
    • Voltage input range: 12 MIN - 30 MAX VDC
    • Current (all inputs off): ~13mA MAX
    • Call Voltages – Call Voltage: 16.5V dc
    • Call Voltages – Min Call Voltage needed: 3.3V
  • Environmental
    • Operating Temp: Range: 32°F - 158°F (0°C - 70°C)
    • Storage Temp Range: 32°F - 158°F (0°C - 70°C)
    • Relative Humidity: 0 - 90% non condensing
  • Dimensions (HxWxD): 3.4" x 4.5" x 1.7"
  • Weight: 0.68lbs
