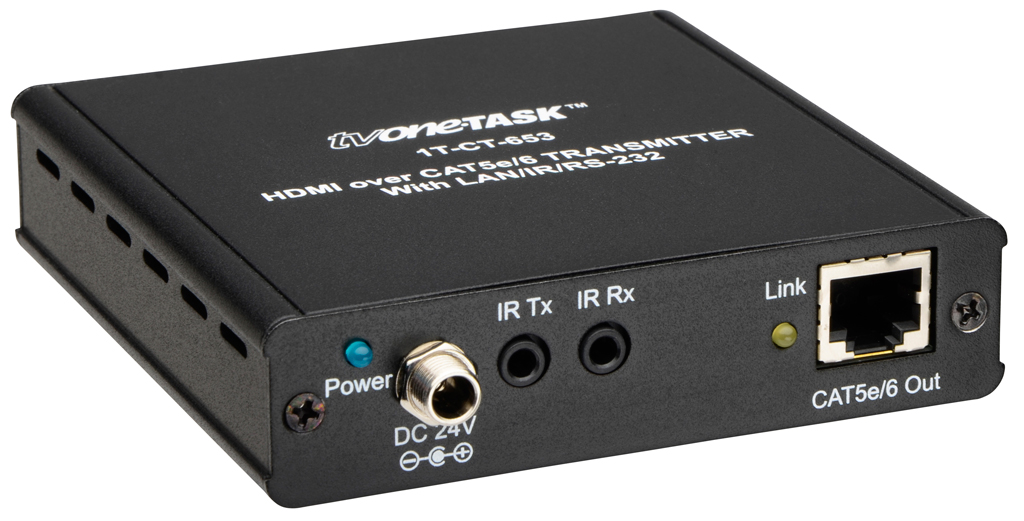

TV One 1T-CT-653
HDMI over Single Cat.5e/Cat.6 Transmitter

OUR PART #  1T-CT-653

Our Price: $325.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

When coupled with it's receiver unit, the 1T-CT-653 Transmitter forms a product group which employs HDMI v1.4 capability and the HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable (this is the type of cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard.

The 1T-CT-653/1T-CT-654 system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation.

Control signals can be passed via Ethernet, Infrared or RS-232. PoE (Power over Ethernet) technology is employed to allow powering of the Receiver from the Transmitter, negating the need for a separate power supply for that unit.

TV One 1T-CT-653 Features:

  • Resolutions to WUXGA @ 48bits or 4K x 2K
  • Uncompressed transmission to 100 meters (325ft)
  • Uses HDBaseT performance enhancing technology
  • Supports Embedded HDMI Lossless Digital Audio
  • Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0
  • Uses a single Cat.5e/Cat.6 Ethernet cable
  • Bi-directional infrared remote support
  • Bi-directional RS-232 and Ethernet support
  • PoE (Power over Ethernet) capability for Receiver

TV One 1T-CT-653 Specifications:

Video I/O

  • 1T-CT-653 Tx-HDMI Input: 1x via HDMI Connector

Cat.5e/Cat.6 Cable I/O

  • 1T-CT-653 Tx–Cat.5e/Cat.6: 1x via RJ45 Connector

Additional I/O

  • Connectors (each unit): 1x LAN RJ45, 1x DB9 RS-232, 2x 3.5mm mini-jack (Infrared)

Signals & Protocols

  • Industry Standards: HDMI v1.4a, 3D, 4Kx2K, HDCP, DVI 1.0, IR, RS-232, Ethernet

Video Performance

  • Maximum Resolution: 1080p @ 60Hz/48bit or 4Kx2K @ 24Hz

Audio Support

  • Formats Supported: 7.1CH, Dolby TrueHD, DTS-HD

HDBaseT Support

  • Maximum Bandwidth: Uncompressed Video/Audio to 10.2Gbps

Maximum Range

  • 1T-CT-653/654 Tx/Rx System: 100m (325 ft.)

Environmental

  • Operating Temperature: 0° to +40° C (+32° to +104° F)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -20° to +60° C (-4° to +140° F)
  • Storage Humidity: 20% to 90%, Non-condensing

Warranty

  • Limited Warranty: 3 Years Parts and Labor

Regulatory Approvals

  • Encoder/Decoder Unit: FCC, CE, RoHS
  • Power Supply: UL, CUL, CE, PSE, GS, RoHS

Cable Requirements (T/R)

  • Ethernet Cable, Twisted Pair: Highest Quality Single Cat.5e or Cat.6Cable

Mechanical (H-W-D)

  • 25x102x113mm(0.98x4.0x4.45”)
  • Weight: 252g (0.55 lbs.)

Power Requirement

  • External Power Supply: 1 x 24VDC @ 1.25A

Accessories Included

  • 1x Power Adapter: US, UK or Euro
  • 1x User Manual
  • 1x IR Transmitter or Receiver

Model Numbers

  • 1T-CT-653: HDMI Over Cat.5e/Cat.6 Transmitter

TV One 1T-CT-653
HDMI over Single Cat.5e/Cat.6 Transmitter

OUR PART #  1T-CT-653

Product Information:

When coupled with it's receiver unit, the 1T-CT-653 Transmitter forms a product group which employs HDMI v1.4 capability and the HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable (this is the type of cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard.

The 1T-CT-653/1T-CT-654 system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation.

Control signals can be passed via Ethernet, Infrared or RS-232. PoE (Power over Ethernet) technology is employed to allow powering of the Receiver from the Transmitter, negating the need for a separate power supply for that unit.

TV One 1T-CT-653 Features:

  • Resolutions to WUXGA @ 48bits or 4K x 2K
  • Uncompressed transmission to 100 meters (325ft)
  • Uses HDBaseT performance enhancing technology
  • Supports Embedded HDMI Lossless Digital Audio
  • Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0
  • Uses a single Cat.5e/Cat.6 Ethernet cable
  • Bi-directional infrared remote support
  • Bi-directional RS-232 and Ethernet support
  • PoE (Power over Ethernet) capability for Receiver

TV One 1T-CT-653 Specifications:

Video I/O

  • 1T-CT-653 Tx-HDMI Input: 1x via HDMI Connector

Cat.5e/Cat.6 Cable I/O

  • 1T-CT-653 Tx–Cat.5e/Cat.6: 1x via RJ45 Connector

Additional I/O

  • Connectors (each unit): 1x LAN RJ45, 1x DB9 RS-232, 2x 3.5mm mini-jack (Infrared)

Signals & Protocols

  • Industry Standards: HDMI v1.4a, 3D, 4Kx2K, HDCP, DVI 1.0, IR, RS-232, Ethernet

Video Performance

  • Maximum Resolution: 1080p @ 60Hz/48bit or 4Kx2K @ 24Hz

Audio Support

  • Formats Supported: 7.1CH, Dolby TrueHD, DTS-HD

HDBaseT Support

  • Maximum Bandwidth: Uncompressed Video/Audio to 10.2Gbps

Maximum Range

  • 1T-CT-653/654 Tx/Rx System: 100m (325 ft.)

Environmental

  • Operating Temperature: 0° to +40° C (+32° to +104° F)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -20° to +60° C (-4° to +140° F)
  • Storage Humidity: 20% to 90%, Non-condensing

Warranty

  • Limited Warranty: 3 Years Parts and Labor

Regulatory Approvals

  • Encoder/Decoder Unit: FCC, CE, RoHS
  • Power Supply: UL, CUL, CE, PSE, GS, RoHS

Cable Requirements (T/R)

  • Ethernet Cable, Twisted Pair: Highest Quality Single Cat.5e or Cat.6Cable

Mechanical (H-W-D)

  • 25x102x113mm(0.98x4.0x4.45”)
  • Weight: 252g (0.55 lbs.)

Power Requirement

  • External Power Supply: 1 x 24VDC @ 1.25A

Accessories Included

  • 1x Power Adapter: US, UK or Euro
  • 1x User Manual
  • 1x IR Transmitter or Receiver

Model Numbers

  • 1T-CT-653: HDMI Over Cat.5e/Cat.6 Transmitter
