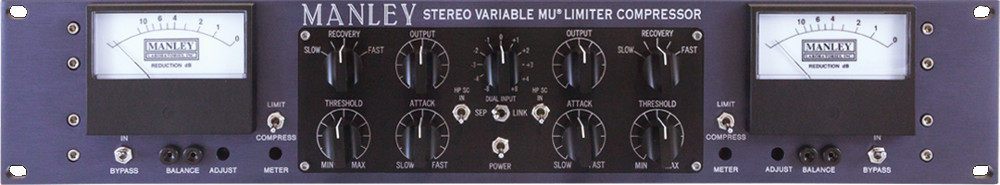

Manley Laboratories Variable Mu
Stereo Limiter Compressor

OUR PART #:  MSLCHP

The Variable Mu Limiter Compressor is the glue that holds the mix together while crystallizing it into a professional, final product.
Learn More
Our Price: $3,960.00
List Price: $4,400.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Manley Laboratories Variable Mu
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Variable Mu Limiter Compressor is the glue that holds the mix together while crystallizing it into a professional, final product. All-tube, all transformer, an all-American legend. High Pass Side Chain mod now comes standard.

The Manley Variable Mu® Limiter Compressor is one of the very few compressors that has become a real standard in Mastering studios and contributed to most hit records over the last decade and probably the next. "Mu" is tube-speak for gain, and Variable Mu® is Manley's registered trademark for this limiter compressor. It works by using the "remote cut-off" or re-biasing of a vacuum tube to achieve compression. The precious vintage Fairchild 670 also uses this technique and is one of few all-tube compressor to do so, that we know of. Even the side-chain has glowing rectifier bottles. How’s it work? The unique 5670 dual triode is at the center of the peak-reducing and compression action constantly being re-biased by the vacuum tube rectified side-chain control voltages which cause this tube to smoothly change its gain. Just like that.

The Compress mode is soft-knee 1.5 to 1 ratio while the sharper knee LIMIT mode starts at 4 to 1 and moves to a more dramatic ratio of 20 to 1 when limiting over 12dB. Interestingly, the knee actually softens as more limiting is used. Distortion can be creatively used by turning up the Input and turning down the Output while using very little or no compression.

You might notice that the Variable Mu® Limiter Compressor has a ganged input control, but do not jump to conclusions that it is mono-unfriendly. There are separate threshold and output controls to make compensations with plus you can always adjust your individual source levels elsewhere, right? The advantage of the stereo input control becomes dramatically clear when you switch to LINK mode, and that’s what Manley's Variable Mu® Limiter Compressor does better than anything else: final mix, 2-track, or mastering limiting and compression.

Manley Laboratories Variable Mu Features:

  • Manley input & output transformers with nickel laminations in mu-metal cases with flat frequency response from 20 Hz - 25kHz
  • Balanced Inputs and Outputs (600 Ohms)
  • Fully differential all-tube circuitry using one each 5670, 5751 (or 12AX7), 7044 (or 5687), & 12AL5 per channel
  • Independently regulated B+ and Heater supplies
  • Hard-wire Bypass switch
  • Stepped switch Input attenuator
  • Recovery 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
  • Variable Attack: 25 msec - 70 msec
  • Continuously variable Threshold
  • Limit (4:1 to 20:1) or Compress (1.5 to 1)
  • HP SC: High Pass Side Chain Filter -3 dB @ 100 Hz
  • Large illuminated Sifam meters
  • Stereo Link Switch

Manley Laboratories Variable Mu Specifications:

  • Maximum gain: 35 dB
  • Max. output: +30 dBu (26 Vrms) 26 dB Headroom
  • <0.1% THD @ 1 kHz Noise floor: -85 dB typical
  • Power Consumption (120/240VAC): 80 watts
  • Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
  • Mains Fuse Value for 100~120VAC operation: replace with 1.25A
  • Mains Fuse Value for 220~240VAC operation: replace with 0.6A (600mA)
  • Mains Fuse Type: MDA or MDL SLO-BLO Time delay 1 1/4"x 1/4"
  • Mains Voltage Frequency: 50 ~ 60 Hz
  • Dimensions: 19" x 3 1/2" x 10" (chassis occupies 2u) Power transformer protrudes 3.5" out the back of the chassis.
  • Shipping Weight: 23 lbs.
