RF Venue CX22 Near Field Antenna System, 2'x2' tile

OUR PART #: CX22

Copied to clipboard

RF Venue's CX-22 Antenna is an unobtrusive, near field antenna system designed to work with wireless microphones. ...Read more

RF Venue CX22 Near Field Antenna System, 2'x2' Tile Image 1
RF Venue CX22 Near Field Antenna System, 2'x2' Tile Image 2
RF Venue CX22 Near Field Antenna System, 2'x2' Tile Image 3
RF Venue CX22 Near Field Antenna System, 2'x2' Tile
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

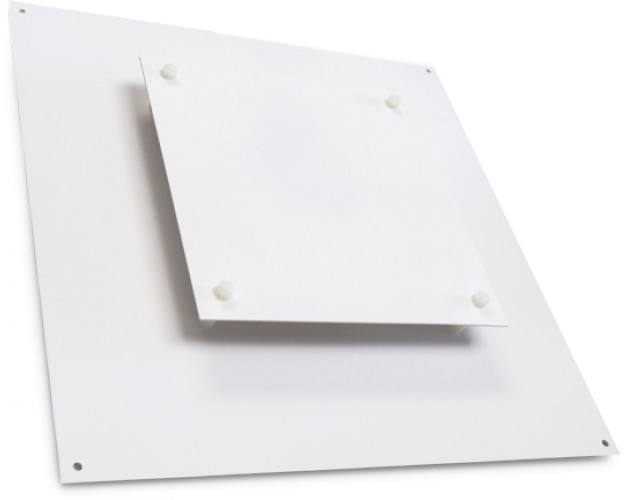

RF Venue's CX-22 Antenna is an unobtrusive, near field antenna system designed to work with wireless microphones. It attaches easily to any standard 2 ft x 2 ft ceiling tile with the included hardware kit and blends in easily to any boardroom, classroom, or other drop-ceiling environment. Available with an optional junction box and in custom color-matched paint (contact your sales representative for more info), the CX-22 Antenna has similar interference-mitigation characteristics to RF Venue's RF Spotlight, but in a more install-friendly form factor. It is particularly useful where many separate wireless systems are inter-operating across the facility and local field "spotlight" coverage is desired to maximize available spectrum and mitigate interference between rooms.

Features:

  • Frequency Range 470 - 698 MHz, + 216 MHz for Assisted Listening Transmit
  • Hardware kit includes mounting screws, brackets, and safety wire loop
  • Outer dimensions 14 x 14''
  • Standard BNC coaxial cable connector
  • Custom paint match available (contact your sales representative for more info)
  • Junction box option (contact your sales representative for more info)
  • Plenum rated coaxial cabling available in any length

Specifications:

  • Electrical Characteristics:
    • Operating frequency: 216, 470-698 MHz
    • Bandwidth: 228 MHz
    • Average return loss: -6.7 dBm
    • Impedance (nom): 50 ohms
    • Pattern type: Flood
    • Gain: 6 dBd
    • F/B Ratio: N/A
    • F/S Ratio: N/A
    • Transmit power (max): 100 mW
    • Polarization: Elliptical
  • Physical Characteristics:
    • Diameter 14" x 14" (355 x 355 mm)
    • Weight: 2 lbs (0.9 kg)
    • Operating temperature: -10-40C (-14-40 F)
    • Mounting location: Ceiling Tile
    • Color/Reflectance: White
    • Connector: BNC female

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
