RF Venue RFS
RF Spotlight Antenna

OUR PART #:  RFS

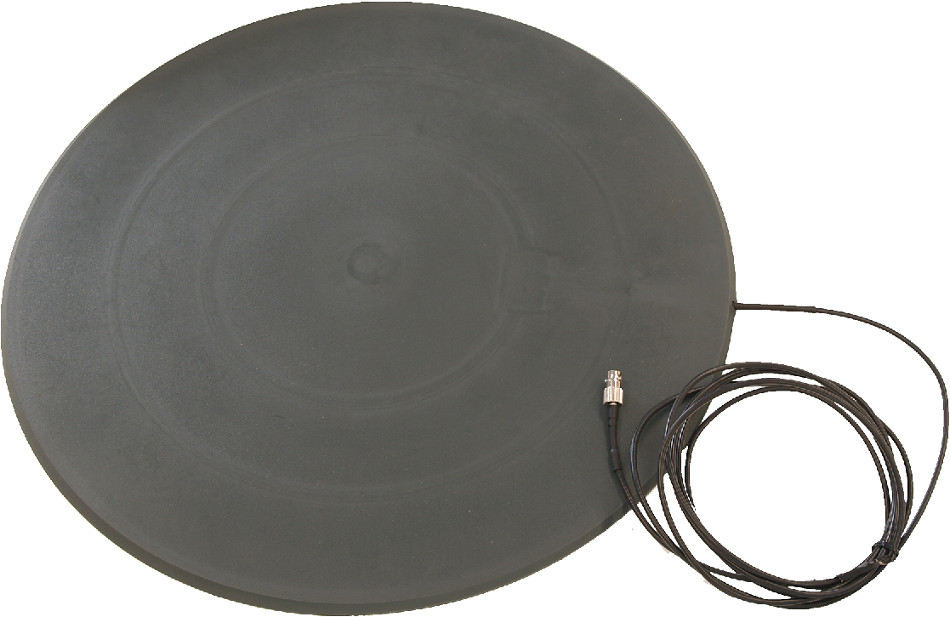

RF Venue's RF Spotlightâ„¢ Antenna is a low-profile floor pad antenna that enables wireless microphones and in-ear monitors in the most crowded RF environments.
Learn More
Our Price: $449.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RF Venue RFS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RF Venue's RF Spotlightâ„¢ Antenna is a low-profile floor pad antenna that enables wireless microphones and in-ear monitors in the most crowded RF environments.  Perfect on stages, in hotel breakout rooms, at conventions, or church sanctuaries, the RF Spotlight is effective where multiple wireless systems are inter-operating across facilities and open channels are limited.

The RF Spotlight Antenna has a hemispherical pattern, is elliptically polarized, and made of durable PVC material with a 50 pound tensile strength rated cabled connector that meets the rigors of production and rental applications.  Its operating range is a function of several factors including output power of transmitter, coaxial cable type and length, and nearby obstructions.  The RF Spotlight is strong enough to pickup signals through most types of composite or wood deck stages and can be placed out of the way in the corner of the stage, installed under a carpet, or wherever convenient to limit foot traffic and maximize the signal to noise ratio for your wireless system.

RF Venue RFS Features:

  • Frequency Range:  470 - 698 MHz
  • 19'' Diameter, 25'' Thick PVC Floor Pad
  • 10 ft Standard Cable Connector Length
  • Custom Logo Printing Available (Please contact your Sales Pro for more information on custom logos)
  • More Signal, Less Noise

RF Venue RFS Specifications:

  • Operating frequency: 468 - 740 MHz
  • Bandwidth: 272 MHz
  • Average return loss: -7.04 dBm
  • Impedance (nom): 50 Ohms
  • Pattern type: Floor Omni
  • Gain: -1 dBd
  • F/B Ratio: N/A
  • F/S Ratio: N/A
  • Transmit power (max): 100 mW
  • Polarization: Elliptical
  • Diameter: 19" (483 mm)
  • Thickness: 0.26" (7 mm) Typ.
  • Weight: 3 lbs (1.4 kg)
  • Operating temperature: -14° F to 104° F (-10° C to 40° C)
  • Mounting location: Floor
  • Color/Reflectance: Stage Gray 18% Avg.
  • Connector: BNC female
