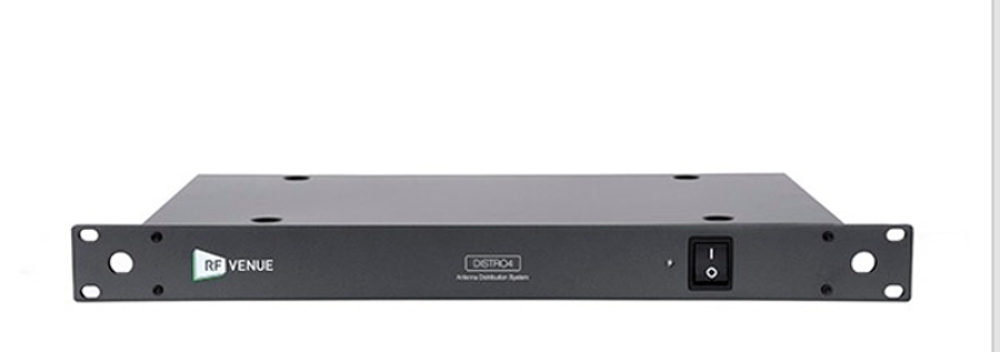

4-Channel RF + DC Antenna Distribution System


Our Price: $499.00
(Low Price Guarantee)
In Stock

The RF + DC Distributor provides RF and DC power to 4 wireless microphone systems of any brand - allowing you to split 2 incoming antenna signals across multiple receivers.

For wireless microphone systems larger than 4 channels, multiple RF/DC Distributors can be cascaded together or configured separately with RF Venue's 2 x 1 passive splitter accessory.  This high-quality yet cost-effective antenna distribution unit features a 2000 mA internal power supply [no wall wart] and amplifies the split antenna signals prior to distribution.  The system comes with all of the RF and DC power jumpers needed to connect a 4-channel wireless microphone system.

RF Venue also supplies high-quality Made in USA coaxial cabling [all types and terminations], as well as splitters and attenuators, and specializes in fast turnaround on custom assemblies to meet your project requirements - including LMR400 Plenum rated cabling and standard RG8X type coax.

Includes: All DC and RF jumper cables required for 4-channel microphone system operation.

Electrical Characteristics:

  • Operating frequency: 470-870 MHz
  • Bandwidth: 400 MHz
  • Gain: -0.5 to 3 dB
  • Impedance: 50 ohms
  • Output Connection Isolation: 25 dB
  • Third Order Intercept point: 24 dBm
  • Input AC Voltage: 90-260V Switching
  • Output DC Voltage: 12-18V
  • Output DC Current: 2000 mA

Phyical Characteristics:

  • Dimensions: 1.75" H x 19" W x 10" D
  • Weight: 4.75 lbs (2.15 kg)
  • Color: Black
  • RF Connectors: BNC
