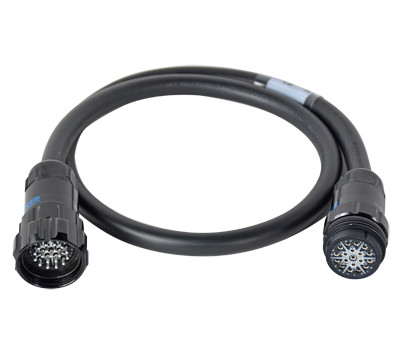

Lex Products Corp ME1214-200-L
200' 12AWG MultiFlex Cable

OUR PART #:  ME1214-200-L

The Lex Product Corp ME1214-200-L is a 20 Amp, 6-Circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with LSC19 machined aluminum connectors, ground conductors bonded.
Learn More
Our Price: $1,067.71
List Price: $1,303.65
You save 18%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp ME1214-200-L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Lex Product Corp ME1214-200-L is a 20 Amp, 6-Circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with LSC19 machined aluminum connectors, ground conductors bonded. Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable.

Applications:

  • Motion Picture and Television Production
  • Theatrical Production
  • Concert Touring
  • Live Events
  • Convention Centers

Lex Products Corp ME1214-200-L Features:

  • Cables feature proprietary LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
  • Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections
  • Helps prevent broken conductors and loose or damaged ground rings
  • “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
  • Machined aluminum housing with hard black anodized finish provides maximum durability
  • Silver plated brass contacts for high conductivity
  • Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
  • Available in 12, 14 and 16 AWG to meet your specific requirements
  • 14 conductor multi-cable offers two lower weight options when bonded grounds are acceptable
  • All black construction blends into scenery and is ideal for stage or studio lighting applications

Lex Products Corp ME1214-200-L Specifications:

  • Rating: 20 Amp, 300 VAC maximum (6-circuit)
    • Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
  • Ground Conductors Bonded: Six ground contacts are combined through the use of a ground ring to two ground conductors.
  • Male Connector: LSC19-LMC-29
  • Cable Guage: 12 AWG, 14 conductor TPR
  • Female Connector: LSC19-LFC-29
