Kramer TP-580T
HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter

OUR PART #:  TP-580T

The Kramer TP-580T is a high-performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals.
Learn More
Our Price: $192.00
List Price: $240.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-580T
Qty:
In Stock

Similar Products

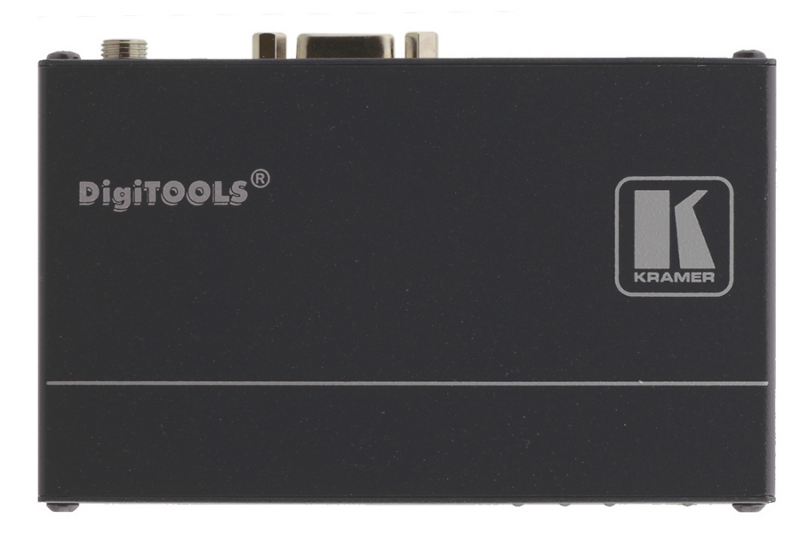

The Kramer TP-580T is a high-performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

Applications:

  • Conference rooms
  • Boardrooms
  • Auditoriums
  • Hotels
  • Churches
  • Production studios

Kramer TP-580T Transmitter Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliance
  • HDBaseT™ Technology
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display
  • 2K & 4K Support
  • Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit
  • System Range - Up to 230ft (70m)
  • Cable - For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables
  • Indicators - Status LEDs for input, output, link and power
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-3T universal rack adapter

Kramer TP-580T Transmitter Specifications:

  • Inputs: 1 HDMI connector
  • Outputs: 1 HDBaseT twisted pair RJ-45 connector
  • Ports: 1 IR on a 3.5mm mini jack, 1 RS-232 on a 9-pin D-sub connector
  • Bandwidth: 10.2 Gbps (3.4 Gbps per graphic channel)
  • RS-232 Baud Rate: 115200
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Consumption: 12V DC,275mA
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 7.4" x 4.5" x1.0" (18.8cm x 11.4cm x 2.4cm)
  • Weight: 1.4lbs (0.6kg)
  • Accessories: Power supply
  • Options: RK-T2B 19” rack mount
