Product Overview

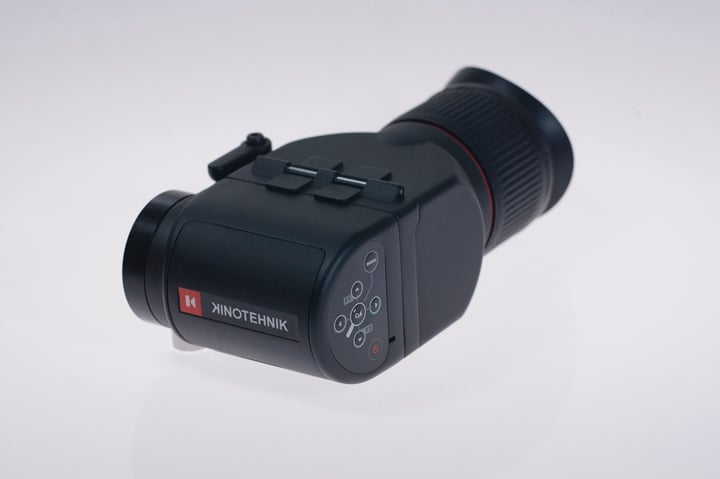

Kinotehnik produces the LCDVFe which is an universal production style electronic viewfinder with Retina-like display, superior ergonomics and realtime response unique to the industry.
Features:
- Reposition and shoot in no time: over the crowd,waist level or on your shoulder - no time lost when re-configuring the EVF.Can be fully operated with just one hand - opening the flip, changing battery pack etc.
- Live video processing features for precise image evaluation: Focus assist via color peaking, user adjustable exposure assistzebras, 1:1 pixel zoom feature with position-able recall
- Real-time image processing: virtually no latency
- Hardware supports jitter-free panning
- Optional remote control via external USB joystick(availability TBA)
- On-board interchangeable batteries (4xAA)
- Universal power supply for unmatched powering flexibility from 4V to 17V – reverse polarity protected.
- Economy mode for extended battery life, intelligent sleep option built-in with LED indicator light
- Run time up to 6 hours
- Encased battery compartment to avoid battery drain in extreme cold
- Super crisp 24bit 3” LCD screen with 800x480resolution (1.2 megapixels)
- Sleek yet rugged physical design and maximized usability after hundreds of hours of testing
- Optical construction offering generous diopter compensation. Vacuum laminated double element achromatic lens, utilizing ULD glass element for perfect image quality
- Separate HDMI transmitter for untouched HDMI loop through with audio for recording uncompressed video to external devices.The HDMI transmitter can be switched off for conserving battery power
- Weight 350gr (12.3 oz), including mounting system, excluding batteries
Software Features:
- Boot-up time: < 1.5 seconds
- Auto-scaling for 480p: Yes
- Blackout while switching resolution: < 0,5 seconds
- Focus assist - Color peaking: Yes, fully configurable
- Focus assist - Zoom: Yes - repositionable and recallable
- Exposure assist - Zebras: Yes, fully configurable
- Exposure assist - False color: Yes, zone system
- Anamorphic stretch: Yes
- Frame lines, crop guides: Yes
- Safe area guides: Yes, configurable, automatic to crop guides
- High resolution audio level metering: Yes, with ballistics and peak hold,L/R
- Histograms: Yes, RGB, luminance
- Brightness, contrast, saturation, RGB adjust: Yes
- HDMI loop through with audio: Yes
- Updateable firmware: Yes, via USB on Mac or PC
- Users presets: Up to 5 fully customizable presets
- LCDVFe Manager (Mac/PC): For easy user preset management and sharing, software updates
- Remote control: Yes, with proprietary remote controller (optional)
- Power saving options: Configurable automatic suspend,and wake-up on signal, power-off
- Eco-mode: Yes, backlight dimming
- LED-indication light: Yes, avoids unwanted battery drain, provides user feedback
Specifications:
- Screen
- Size: 3-inch TFT LED
- Resolution: 800x480
- Pixel count: 1.2 megapixels
- Pixel density: 311 PPI
- Color depth: 24bit 16.7M colors
- Connectors
- Input: Full-size heavy-duty HDMI
- Output: Full-size heavy-duty HDMI
- Loop through: Yes, including audio
- PC/Mac connection: Mini-USB
- Dedicated remote connection: Mini-USB
- Supported video formats
- SD: 480p59.94, 480pH59.94, 480i59.94,480iH59.94,576p50, 576pH50,576i50, 576iH50, DMT0659p59.94
- HD: 720p24, 720p50, 720p59.94, 720p60,1080PsF23.98, 1080p23.98,1080PsF24,1080p24, 1080PsF25,1080p25, 1080PsF29.97,1080p29.97, 1080PsF30,1080p30,1080i50, 1080i59.94 and 1080i60
- Power
- On-board: Universal 4x AA batteries
- Runtime on batteries: ~6 hours (on 2600mAH batteries)
- External power: 4-17V, reverse polarity protected
- Power drain: 1.9W
- Physical properties
- Weight: 350 gr (12.3 oz.)
- Dimensions: 168x86x64 mm
- Diopter range: -2 … +2. Additional 46mm filterthreads for individual diopter correction
- Removable flip-up eyepiece: Yes
