Manley Laboratories REFGOLD
Reference Gold Multi-Pattern Microphone

OUR PART #:  REFGOLD

The MANLEY GOLD REFERENCE MULTI-PATTERN MICROPHONES are a statement, quite simply...
Learn More
Our Price: $4,950.00
List Price: $5,500.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Manley Laboratories REFGOLD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

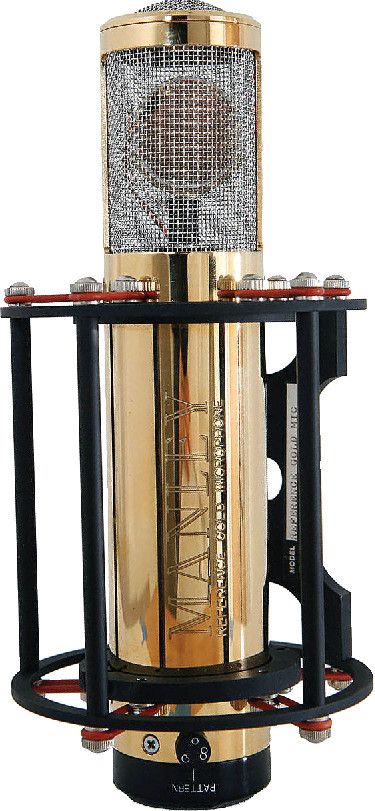

The MANLEY GOLD REFERENCE MULTI-PATTERN MICROPHONES are a statement, quite simply, of the finest microphones that money can buy in the pursuit of truly accurate musical recordings.  The Gold Reference Series employ Manley's own design of large capsules (1.25" overall, 1" diaphragm diameter) which are executed to precise tolerances made possible by modern micro-milling machinery available today in California.  The capsule rings and back-plates are milled from solid brass.  The gold diaphragm film comes from Germany and is tensioned using proprietary techniques by David Josephson ensuring capsule-to-capsule constancy, combined with the speed, "air", and superb ultra-high frequency response you have only dreamt about.

The all-tube electronics in the MANLEY REFERENCE SERIES MICROPHONES are built around two triodes in cascade forming an entire gain-block.  Manley has recently switched to a dual-triode 12AT7 tube, easily obtainable and replaceable, mounted in a ceramic socket.  (Manley originally used 6072A until it became impossible to find quiet ones out of the NOS dreck left on the market, then they used 12AX7 for awhile.)  The output is coupled through a MANLEY output transformer of unparalleled quality and substantial physical size employing nickel laminations with "hum bucking" bi-filar windings, encased in mu-metal.  The polar pattern control is continuously variable between the OMNI, CARDIOID, and FIGURE 8 positions vastly increasing this microphone's versatility.  The Gold Mics make it possible to exactly tailor the proximity effect to achieve the desired character.

Manley has chosen a very open weave stainless-steel grille for the capsule window which allows all the highs to reach the capsule unimpaired letting the engineer choose if, when, and how much pop screen is appropriate.  As a result, the Reference Gold reaches to the furthest extremes of highs and lows with gorgeous natural acoustic smoothness.  Some engineers tell us it sometimes "hears" more than they do.  A locking 6-pin XLR connector for the 30 foot power supply cable carries the stringently filtered B+ and regulated heater voltages from the separate dedicated power supply.  The audio signal exits the PSU via a traditional 3-pin XLR jack.  The microphone body is machined from brass providing excellent shielding properties, polished to a high lustre, then plated with 24 karat gold for an impressive finish, inspiring confidence in artists and producers.

Manley's proprietary precision suspension system is provided with each REFERENCE MICROPHONE (the capsule itself is mounted onto a neoprene-rubber shock-mount.)  Because the entire working "guts" of the microphone may be removed for service in one piece from the housing, it is envisioned that the microphone need not be removed from the suspension.  Manley also provides a very useful swivel of their own design with every REFERENCE MICROPHONE; its T-bar handle and locking clutch action require no tools to adjust.  And no MANLEY microphone would be complete without a genuine leather capsule protector which slips (and ties) onto the end of the microphone to protect the capsule when not in use.

Each REFERENCE MICROPHONE is packaged complete in a strong locking carrying-case.

Manely Laboratories REFGOLD Features & Specifications:

  • All Tube design using 12AT7 dual triode. (Previous versions used 6072 or 12AX7.)
  • -10dB switchable PAD
  • Sensitivity:  17mV/Pa
  • Noise:  Typically -120 dB EIN
  • Max SPL:  150dB
  • Actual Output Impedance:  200 Ohms
  • Weight:  2.25 lbs (mic)
  • Weight:  2.5 lbs (PSU)
  • Size:  4.5" x 9.7" x 4.5" (mic)
  • Size:  5" x 8.2" x 3.4" (PSU)
  • Shipping weight:  15 lbs
  • Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer re-wiring via internal jumpers and fuse value change.
  • Mains Voltage Frequency:  50~ 60Hz
  • Mains Fuse:  250mA @ 100~120V; 125mA @ 220~240V operation
  • Power Consumption:  70mA @ 120V = 8.4 Watts
