Audio-Technica BP894CW-TH Submini Cardioid Condenser Headworn Mic, No Power, Locking 4-pin cW Connector, Beige

OUR PART #: BP894CW-TH MFR #: BP894CW-TH

Copied to clipboard

Superior intelligibility and clean, accurate reproduction. The BP894cW-TH from Audio-Technica is a lightweight... ...Read more

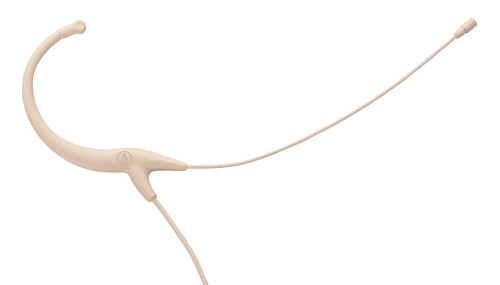

Audio-Technica BP894CW-TH Submini Cardioid Condenser Headworn Mic, No Power, Locking 4-pin CW Connector, Beige Image 1
Audio-Technica BP894CW-TH Submini Cardioid Condenser Headworn Mic, No Power, Locking 4-pin CW Connector, Beige Image 2
Audio-Technica BP894CW-TH Submini Cardioid Condenser Headworn Mic, No Power, Locking 4-pin CW Connector, Beige
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Superior intelligibility and clean, accurate reproduction.

The BP894cW-TH from Audio-Technica is a lightweight, subminiature cardioid condenser microphone with a headworn design. A 55", permanently attached miniature cable terminates with a locking 4-PIN connector for use with Audio-Technica cW-style bodypack transmitters. Includes AT8440 cable clip, AT8464-TH dual-ear microphone mount, two AT8163-TH windscreens, two AT8163-TH element covers, moisture guard, and carrying case. Beige finish.

Features

  • Rotating capsule housing with talk-side indicator
  • Perfect for house of worship, lecture, broadcast & theater
  • Handles high SPLs with ease
  • Ergonomic, under-ear design
  • Cable terminated for Audio-Technica cW-style transmitters

Specifications

  • Element: Fixed-charge back plate, permanentlypolarized condenser
  • Polat Pattern: Cardioid
  • Frequency Response: 20-20,000 Hz
  • Low-Frequency Roll-off: 80 Hz, 18 dB/octave (wiredonly)
  • Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1Pa
  • Impedance: 250 ohms (wired only)
  • Maximum Input Sound Level: 135 dB SPL, 1 kHz at 3%T.H.D.
  • Dynamic Range(typical): 104 dB, 1 kHz at Max SPL(wired only)
  • SIGNAL-TO-NOISE Ration: 63 dB, 1 kHz at 1 Pa
  • Phantom Power requirements: 11-52V DC, 2 mA typical(wired only)
  • Switch: Flat, roll-off (wired only)
  • Current Consumption: 0.1 mA typical at 5V (wirelessonly)
  • Voltage Range: 2.5-11V (wireless only)
  • Weight (Microphone): Microphone, boom & earpiece:0.07 oz
  • Weight (Power Module): 3.0 oz (wired only)
  • Dimensions
    • Microphone: 0.26"(L) x 0.11" diameter
    • Boom: 4.23"(L) x 0.04" diameter
  • Dimensions (Power Module): 3.84"(L), x (0.74")diameter (wired only)
  • Output connector (Power Module): Integral 3-pinXLRM-type
  • Cable: 1.4 m (55") long (permanently attached tomicrophone), 1.6 mm (0.06") diameter, 2-conductor shielded cable with Audio-Technica 4-pin connector for UniPak systems.
  • Accessories furnished: AT8464 dual-ear microphone mount; AT8440 cable clip; two AT8163 windscreens; moisture guard; carrying case
