Datavideo Corporation VSM-100
Sampling Video Scope Monitor


Accurate video signal analysis and calibration has always been crucial to any live production.
Learn More
Our Price: $2,100.00
Write the first review.
Datavideo Corporation VSM-100
Usually ships in 7-14 business days.
Need it sooner? Call us!

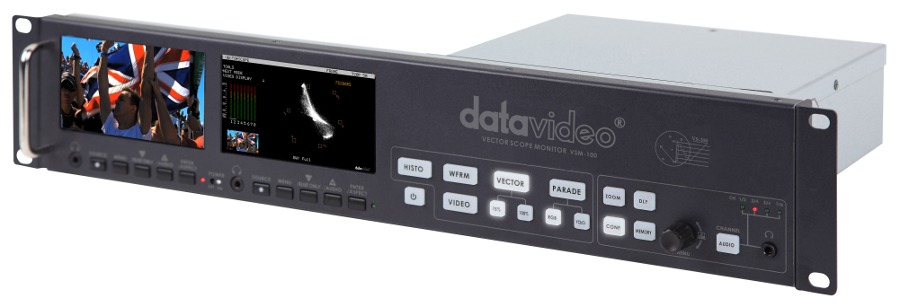

Accurate video signal analysis and calibration has always been crucial to any live production. The VSM-100 from DataVideo is a single waveform/vetorscope unit that seamlessly integrates into a compact 19" rack while making sure the color and luminance levels of your video are consistent and within spec. The VSM-100 is a 2RU rack version with one monitor for signal display and a second monitor for picture display. A typical application would be to monitor program output. With HD/SD SDI inputs, it can test feeds in a large number of formats, from 576i and 720 50p to 1080i and 1080 25p. With HDMI outputs, it can be used with cost-effective HD monitors while its SDI ports can be set up as a loop-through as part of the production technology chain.

What's in the Box:

  • VSM-100
  • Power Adapter with Cable
  • Instruction Manual



  • Each monitor has a HD-SDI video input with loop-through output
  • Individual adjustments of Brightness, Contrast, ColorSaturation and Backlight Level for each monitor
  • Front panel Headphone Jacks
  • Audio indicator
  • Support embedded audio on SDI & HDMI
  • HD / SD-SDI and HDMI Input
  • 4:3 & 16:9 display mode switching / PAL & NTSC auto switching

Sampling Vector Scope

  • Rugged and compact single unit that requires only an HD-SDI or HDMI monitor
  • Menu choice of Vectorscope, Histogram, Waveform andParade displays as well as clean Video Display output (SDI to HDMI conversion)
  • SDI / HD-SDI loop through – can provide cleanpictures or video scope view
  • Automatically detects and locks to NTSC, PAL or HDsignals
  • Embedded SDI audio peak meter with selectable monitoring for four stereo pairs
  • Switchable 4:3 / 16:9 video thumbnail when input signal is SD-SDI
  • Headphone jack audio monitoring socket with menu based volume control
  • Save and Recall trace menu options for quick and easy overlay comparison of video traces
  • Parade Display can be toggled between RGB and YCbCr
  • Vector scope can be toggled between 75% and 100% graticules/bars
  • Waveform detail can be zoomed 20%, 40%, 60% and 100%- various parts of the waveform can then viewed by changing the X Delay value
  • Capture sampling can be by Field1, Field 2 or Frame
  • DC 12V operation makes the unit ideal for field or studio operation



  • Input: 1x HD/SD-SDI
  • Output: 1x HD/SD-SDI

Additional I/O

  • Screen #1: 1x HDMI Input
  • Screen #2: 1x HDMI Input
  • VS/WFM: 1x HDMI Output

Supported Resolutions

  • 1080i (50, 59.94, 60Hz)
  • 1080p (23.98, 24, 25, 30Hz)
  • 720p (25, 29.97, 30, 50, 59.94, 60Hz)
  • 576i
  • 480i


  • Waveform Monitor
  • Vectorscope
  • Parade
  • Histogram
  • Video Input Display
