Earthworks 521 ZDT
500 Series Single-Channel Microphone Preamp

OUR PART #:  521-ZDT

The 521 ZDT, based on the Earthworks ZDT Zero Distortion Preamplifiers™ technology designed by David Blackmer...
Learn More
Our Price: $999.00
List Price: $1,249.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

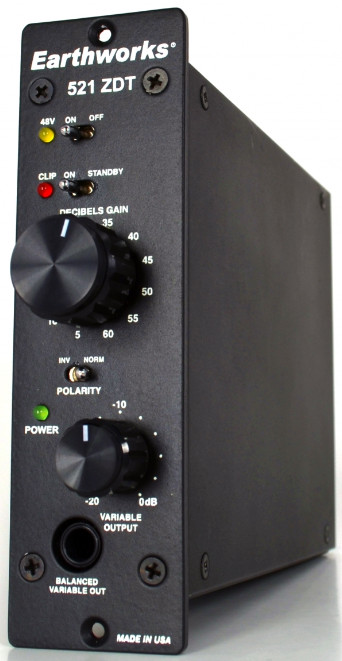

Earthworks 521 ZDT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 521 ZDT, based on the Earthworks ZDT Zero Distortion Preamplifiers™ technology designed by David Blackmer, brings the exacting standards of the Earthworks Zero Distortion Technology preamplifiers to the convenient 500 series format.

The solid state 521 features switchable phantom power, polarity invert, and peak amplitude clip detection, just as in the original 1021 single channel ZDT Preamp.  The transformerless output stage of 521 ZDT easily drive long cable runs without loss of quality, making it ideal for long cable runs.  Transparent gain is switchable from 5dB to 60dB in 5dB steps.

The Earthworks microphone preamplifier topology provides outstanding common mode rejection, excellent overload margin and an incredibly low noise floor, combined with the ultra wide bandwidth of the ZDT Preamps and distortion of less than 1 part per million.  This exceptional level of performance is maintained over an extensive range of impedances applied to the input making the 521 suitable for practically any microphone – ribbon, dynamic or condenser.

Features:

  • Clean, uncolored 500 series preamp
  • Solid-state, transformerless
  • Switchable 48V phantom power
  • Polarity invert switch
  • Peak amplitude clip detection
  • Transparent gain switchable from 5dB to 60dB in 5dB steps
  • Ultra-low noise floor
  • Ultra-wide bandwidth
  • Suitable for most ribbon, dynamic or condenser microphones
  • Requires a 500 series rack

Specifications:

  • Preamp Type: Solid State
  • Number of Channels: 1
  • Frequency Response: 2 Hz to 100 kHz ±0.1 dB, 1 Hz to 200 kHz ±0.5 dB
  • Impulse Response: 1.4µs
  • Distortion: XLR out: less than 1ppm (0.0001%); 1/4" out: 0.001%
  • Input Noise: 1.6nVHz½ at 20dB gain; 0.6nV/Hz½ at 60dB gain
  • EIN: -132dBV at 20dB gain; -143dBV at 60dB gain
  • Slew Rate: 22V/µs
  • Output DC Offset: ±1 mV typical, servo balanced
  • Input / Output Connector: 500 Series EDAC Edge connector
  • XLR Input Impedance: 10KOhm phantom on, 100KOhm phantom off
  • Front Panel Balanced Out: 1/4" TRS XLR Fem. balanced transformerless (variable)
  • Dimensions: 1 500 series rack space - 1.5" x 5.25" x 6"
  • Weight: 0.8 lb (0.36 kg)
