Sony MVS3016APAC
HD/SD Multi-Format Production Switcher with Advanced New Control Panel


Sony offers the MVS-3016APAC, a new production switcher with control panel that fits into its mid-range switcher line up.
Learn More

Call for price! Not available online.
List Price: $36,050.00

Related Products

Sony offers the MVS-3016APAC, a new production switcher with control panel that fits into its mid-range switcher line up. This switcher inherits several characteristics and features from the well-established MVS Series, amassed from ten years of experience at the highest levels of the industry. Compact and well-designed, this new production switcher is ideally suited for production studios, stadiums, houses of worship, and OB vehicles requiring multiple inputs in a limited space.

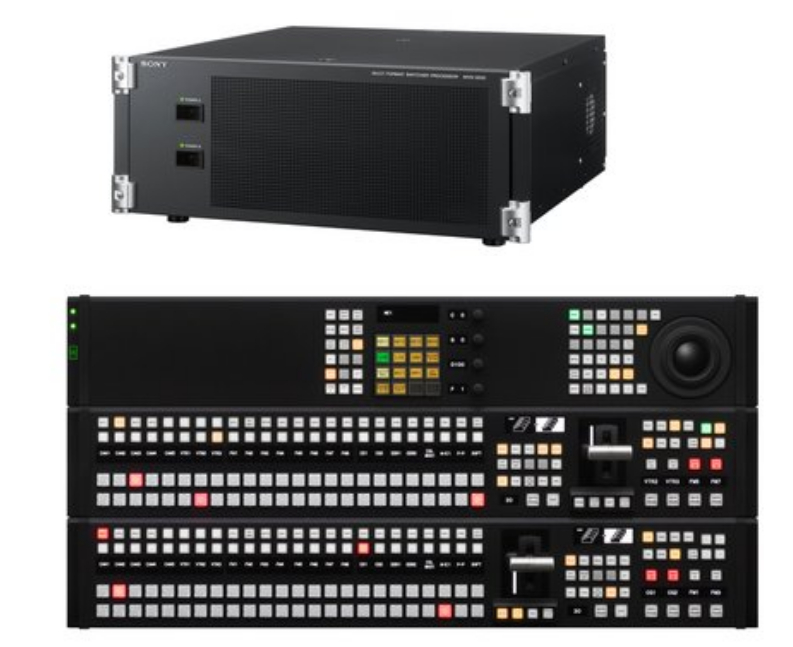

The MVS-3016APAC comes with a MVS-3000A processor with sophisticated capabilities such as two mix effects (M/Es), four keyers per M/E, each with the MVS high-performance chromakey, 2.5D resizers, color correction and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost. The MVS-3016APAC includes the ICP-3016 sixteen button control panel, which incorporates an attractive black design, OLED mnemonic displays for optimal visibility and, of course, the intuitive operability that Sony users love. The self-contained 4RU processor offers simple configuration, and is a logical choice for small production facilities that have limited installation space but refuse to compromise on quality.


  • New custom-designed operational control surface
  • Two mix effects (M/E) busses with four keyers per M/E
  • Range of background transition effects
  • Aux Mix Capability
  • 32 Inputs and 16 Outputs
  • Color correction for each input and AUX output
  • Internal eight-channels frame memory
  • Two channel multi viewer
  • Extensive memory system for saving and recalling
  • Intuitive menu operation supporting standard VGA monitor/mouse and commercially available VGA touch panel monitors
  • Redundant power supplies for processor and control panel
  • Optional internal format convertor (MKS-6550)
  • Optional Two Channel 3D DME (MKS-6570)



  • Editor 1 to 4: D-sub 9-pin (x2), RS-422A
  • FM DATA: RJ-45 (x1), 1000BASE-T
  • FM Device: USB 2.0
  • GPI: D-sub 25-pin (x4), TTL level inputs (x18), Open collector outputs (x48)
  • Network: RJ-45 (x1), 1000BASE-T


  • Dimensions (W x H x D): 32 3/8 x 4 3/4 x 15 5/8 inches (821 x 120 x 396 mm)
  • Format (SD/HD): 1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i
  • Frame Size: 2 M/E
  • Operating Temperature: 41°F to 104°F (5°C to 40°C)
  • Power Consumption:
      -  AC 100 V to 240 V, ±10%, 50/60Hz
      -  4 A to 1.7 A (fully loaded)
  • Weight  Approx.: 46 lb 4.8 oz (Approx. 21 kg) (fully loaded)


  • Inputs:
      -  BNC (x2) 75 ohm with loop-throughoutput
      -  HDTV systems: HD tri-level sync/SDTV analogsync/analog black burst
      -  SDTV systems: Analog blackburst/analog sync

Video Inputs/Outputs

  • Assignable Output:
      -  12 Assignable Outputs
      -  4 Selectable Outputs for Multiviewer, Format Converter, or Duplicate Outputs
  • Primary Inputs: 32 Primary Inputs
  • SD Video Outputs: Up to 2 with the MKS-6550 Format Converter Option
