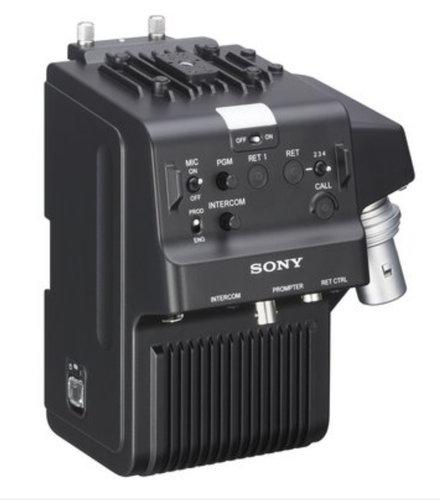

Sony CATX70
Digital Triax Camera Adaptor for HXC-D70 Studio Camera and PMW320/350/500 XDCAM Camcorders


Call for price! Not available online.
List Price: $7,005.00

Sony's CATX70 is an ideal solution for those who require longer cable operation in their production facilities. The new triax system will work not only with the HXC-D70 camera system, but also with the PMW-320/350/500 camcorders. By using the CATX70, the HXC-D70 camera and PMW-camcorders can work with the HXCU-100 Digital Triax CCU. This system is capable of extending the cable length up to 600m / 1968ft (when Ø 8.5mm cable is utilized) between a camera and a CCU with a durable triax cable - a type of cable that is well accepted by professional users for its excellent reliability, especially in rugged use.


  • Expanded Transmission Flexibility for HXC-D70 cameras
  • Professional Interfaces for Live Operation
  • Cable-less Connection with simple, direct connectivity
  • Provides triax transmission solution for HXC-D70 HD studio camera and PMW-320/350/500 XDCAM camcorder
  • Long distance transmission


  • Power Requirements: DC 180 V via CCU Connector
  • Power Consumption: Max. 95 W (including power supply for camera)
  • Operating Temperature: -10°C to +45°C (14°F to 113°F)
  • Storage Temperature: -20°C to +60°C (-4°F to 140°F)
  • Dimensions: (W x H x D): 142 x 174.8 x 139.7mm / 5 5/8 x 7 x 5 1/2 inches
  • Mass: 1.65 Kg (3 lb 10 oz)


  • Camera/Camcorder: 50-pin (x1)
  • CCU: Triax connector
  • Prompter output: BNC (x1), 1 Vp-p, 75 ohm
  • Intercom: XLR 5-pin, female (x1)
  • Return control: 6-pin (x1)
