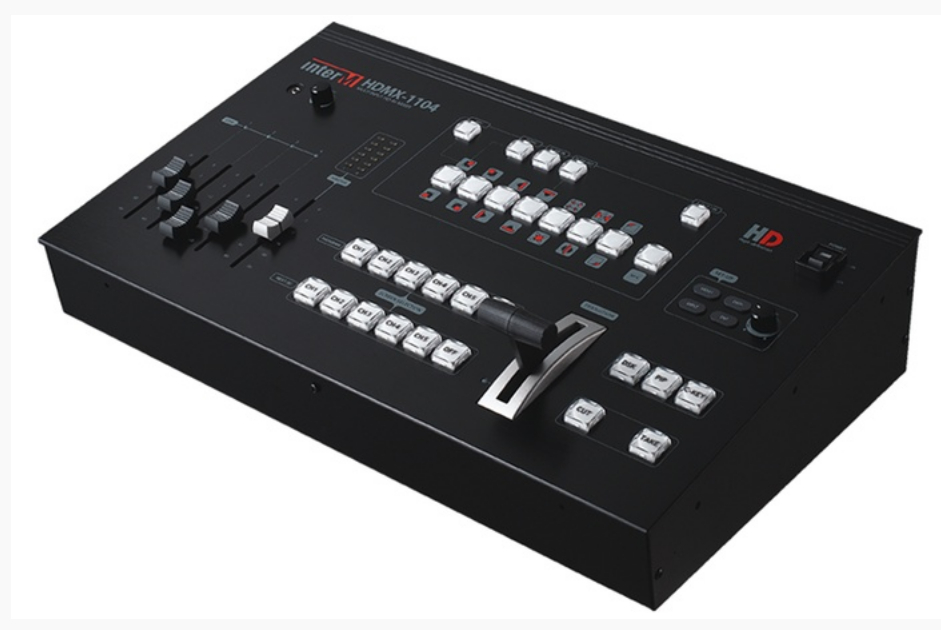

Inter-M Americas Inc HDMX-1104
HD Video Special Effects Mixer

OUR PART #:  HDMX-1104

The HDMX-1104 from Inter-M America is an affordable, high quality and versatile High Definition video switcher, audio mixer...
Learn More
Our Price: $3,296.87
List Price: $3,626.56
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Inter-M Americas Inc HDMX-1104
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HDMX-1104 from Inter-M America is an affordable, high quality and versatile High Definition video switcher, audio mixer, MultiViewer and control panel in a single, compact unit. The HDMX features a built-in MultiViewer output and combines high-quality video switching with embedded or analog audio mixing functions. It offers a very flexible user interface and supports HD-SDI and HD formats. It's ideal for use in schools, hotels, government facilities, corporations, public access channels, live events and weddings, and in mobile or portable applications.

Digital effects include: basic pattern key, transition wipes, chroma and luminance keys, downstream keying (DSK), title key, and fades (in/out, video, audio). The HDMX features 5 digital video inputs, one HD-SDI, three selectable between HD-SDI or HDMI, and one DVI. The built-in four channel stereo audio mixer can be configured to operate independently (separate from the video) or in Audio Follow Video Mode where the audio will switch and mix synchronized with the video mixer.

Features:

  • Full HD 1080i, 720p  input and output source
  • 5 input channels supports a variety of sources ( 4xHD-SDI, 3xHDMI, 1xDVI)
  • Outputs includes: 2xHD-SDI (PGM), HDMI (PGM), HDMI (MultiView)
  • Independent input image adjustment for Contrast, Bright, Saturation, Hue
  • Built-in Frame synchronizer and auto-scaling
  • OFF channel BLACK or  BLUE selectable
  • PGM / PREVIEW monitoring
  • Source monitoring of all 5 input channel including DSK, PIP, CROMA
  • Multiple effects transitions including WIPE, PAGE, Fade, and Dissolve
  • DSK, CROMA, PIP dedicated function key
  • LOGO insertion
  • T-BAR manual fader switch
  • CUT and Automatic TAKE Key
  • LOGO insertion
  • Audio follow Video or split selector switch
  • 4-channel audio mixer
  • Stereo audio inputs and outputs
  • RS-232 & Tally Interface
  • Setup Storage and Recall
  • Rack mount brackets included

Specifications:

  • Main feature: Video live mixing and editing
  • Location: Installation for church, education facilites
  • Audio Mixing: -
  • Audio Output:
      -  Program R, L: -6 dBv, Lo-Z, (Connect to Hi-Z Input) Pin-Jackx
      -  Monitor R, L: 30mW, 600 ohm, 3Pole mini (3.5mm) Jack, Minimum overload 32 ohm
  • SD input: Built in Up-Scaler
  • HD input:
      -  CH1: HD-SDI
      -  CH2: HD-SDI, Ypbpr select
      -  CH3: HD-SDI, HDMI select
      -  CH4: HD-SDI, CVBS select
      -  CH5: YPbPr, DVI select
  • HD output:
      -  Preview: YPbPr, HDMI display simultaneously (SPLIT)
      -  PGM: YPbPr, HDMI , HD-SDI display simultaneously
  • Video Mixing: 5 Input ,1 ME
  • Mix: 5 Feature
  • Wipe: up/down/left/right), middle
  • PIP: Possible
  • Key: Luminance, Chroma key
  • IO: Tary output
  • Dimensions: 438(W) x 93(H) x 266(D)mm / 17.2(W) x 3.6(H) x 10.4(D)in
