Panasonic PT-EX800ZLU
7500 Lumens XGA LCD Projector with Digital Link and No Lens


The PT-EX800ZLU from Panasonic serves up brilliantly clear images in bright rooms with up to XGA (1,0284 x 768) resolution.
Learn More
Our Price: $3,099.00
List Price: $5,599.00
You save 45%!
Write the first review.
Panasonic PT-EX800ZLU
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The PT-EX800ZLU from Panasonic serves up brilliantly clear images in bright rooms with up to XGA (1,0284 x 768) resolution. Installed singly or as part of a collaborative network in business meeting rooms, lecture halls, classrooms, or larger venues, you’ll find setup and operation to be extremely easy with fewer cables and greater levels of automation. And with extended maintenance periods and improved power efficiency, class-leading projection is well within your budget.

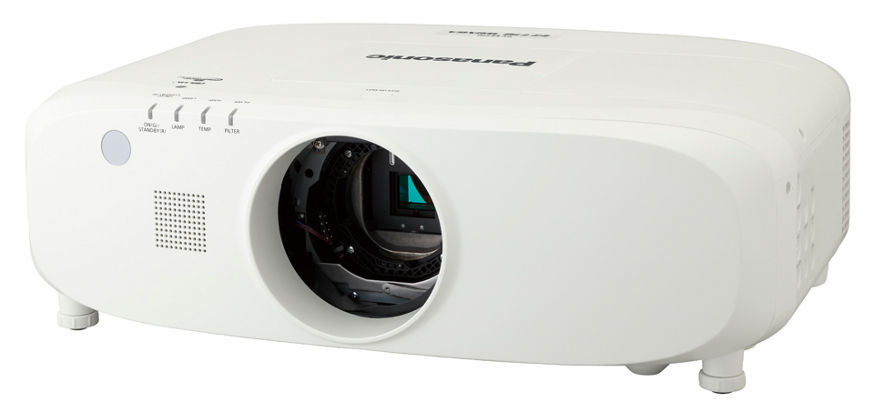

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance.

Panasonic PT-EX800ZLU Features:

  • High Brightness and Excellent Contrast: Despite its sleek and compact dimensions, the PT-EX800 Series produces a class-leading 7,500 lm* of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions.
  • The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms: Panasonic‘s Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
  • Color Adjustment Function: A color adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection, particularly inside-by-side configuration. Correction is performed on 3 colors (R, G, B) or 7 colors (R, G, B, C, M, Y, W).
  • DICOM Simulation Mode*: This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity. (NOTE: * Thisproduct is not a medical instrument. Do not use it for actual medical diagnosis.)
  • Inorganic LCD Materials Maintain High Brightness and Image Quality Longer: The optical block of the PT-EX800 Series of projectors maintains a high level of performance over time, due to the use of inorganic materials in the LCD panels and polarizers, thus achieving a replacement cycle of 10,000 hours with high brightness and excellent picture quality. It also makes them the logical choice for a truly dependable LCD projector system.
  • DIGITAL LINK - The Single Cable Solution: Equipped with a DIGITAL LINK terminal, the PT-EX800 Series allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
  • Also Supports Other Manufacturers’ Peripheral Equipment: DIGITAL LINK is an original function added to HDBaseT™ technology. Signals from the ET-YFB100Gcan also be relayed to a non-DIGITAL LINK-ready projector by using another manufacturer’s equipment based on the same technology.* (NOTE: * Input selection and other ET-YFB100G operations can be performed only when connecting to a DIGITAL LINK compatible projector. HDBaseT™ is a trademark of the HDBaseT Alliance.)
  • Flexible Installation: The wide adjustment range ofthe powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.
  • A Wide Selection of Optional Lenses: Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. Thelenses attach and detach with one-touch ease.
  • Crestron Connected™ and AMX Device Discovery: The LAN terminal allows a computer connected to the network to use Crestron Connected™ application software to manage and control system devices. Besides, the AMXDevice Discovery technology is built in the PT-EX800 Series.
  • Abundant Terminals, Including HDMI, DVI-D Input, and DisplayPort: Extensive interfaces include HDMI and DVI-D input terminals, DisplayPort, DIGITAL LINK and two sets of computer (RGB) input terminals.* The serial terminal (RS-232C) has an Emulate function that lets you continue using existing control systems when replacing previous Panasonic models. It is also possible to output audio during Standby mode. This is convenient when connecting an external audio system through the projector. (NOTE: * Supports YPBPR (YCBCR) signals.)
  • Built-in 10-W Speaker: The PT-EX800 Series projectors feature a high-output 10-watt monaural speaker that produces a large sound volume without requiring external speakers.
  • Side-by-Side and P-in-P Function* for Effective Presentations and Lectures: Two different image sources can be simultaneously displayed onto a single screen. You can also switch to P-in-P (Picture-in-Picture) mode and display a sub-window onto the main screen. The sub-window can be positioned anywhere on the screen for more flexible and effective image presentations.(NOTE: * This function is not effective for some source combinations.)
  • Presentation support/control tools such as Presentation Timer, Freeze Function, and Digital Zoom
  • Projector identification system for remote control allocation of up to 64 projectors
  • Direct Power Off right after use
  • Built-in closed caption decoder (NTSC and 480i (YCBCR) only)
  • A Dust-Resistant Cabinet Design and an Eco Filter that Needs No Replacement for 15,000 Hours
  • Lamp Replacement Cycle of up to 4,500 hours* (NOTE: * This is the maximum value when the lamp poweris set to Eco2. Increases in the lamp on cycle or extended use with the lampcontinuously turned on will shorten the lamp replacement cycle. When the lamppower is set to Eco1, the lamp replacement cycle is 4,000 hours and 3,000hours when setting to Normal. The usage environment affects the lampreplacement cycle.)
  • Intelligent Lamp Control System Reduces Power Consumption: When the lamppower is set to Auto, the Intelligent Lamp Control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 58 %*. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops. As a result, power consumption is effectively reduced while excellent color reproduction is maintained. (NOTE: * With the lamp power set to Auto.)
  • Easy Lamp and Air Filter Replacement: For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The filter and lamp are easily replaced even after the projector is installed on the ceiling.
  • Quiet 29-dB* Design Does Not Interrupt Meetings or Classes: The quiet design keeps noise levels down to 29 dB,* so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes. (NOTE: * With the lamp power set to Eco2. 31 dB with lamp power set to Eco1. 37 dB with lamp power set to Normal.)

Panasonic PT-EX800ZLU Specifications:

  • For specifications and additional features, please consult the attached documentation.
