Panasonic PT-EX800ZU
7500 Lumens XGA LCD Projector with Lens and Digital Link


The PT-EX800ZU from Panasonic serves up brilliantly clear images in bright rooms with up to XGA (1,0284 x 768) resolution.
Learn More
Our Price: $3,299.00
List Price: $5,999.00
You save 45%!
Write the first review.

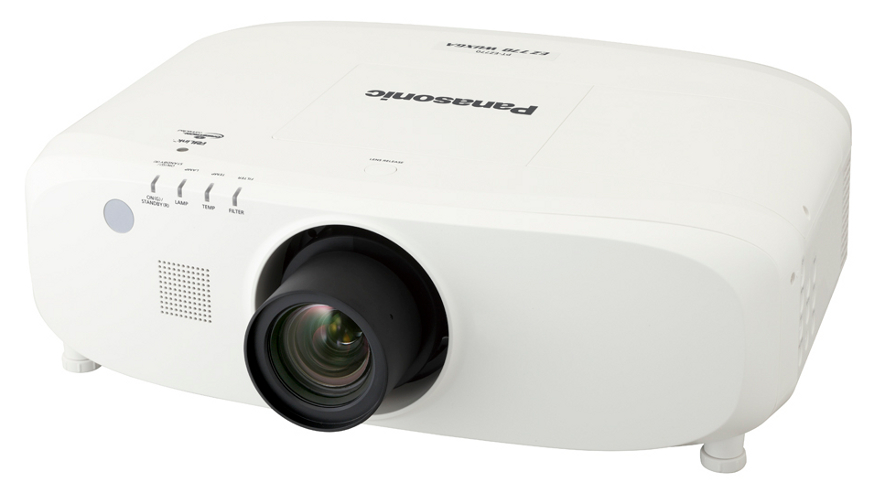

Panasonic PT-EX800ZU
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The PT-EX800ZU from Panasonic serves up brilliantly clear images in bright rooms with up to XGA (1,0284 x 768) resolution. Installed singly or as part of a collaborative network in business meeting rooms, lecture halls, classrooms, or larger venues, you’ll find setup and operation to be extremely easy with fewer cables and greater levels of automation. And with extended maintenance periods and improved power efficiency, class-leading projection is well within your budget.

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance.

Panasonic PT-EX800ZU Features:

  • High Brightness and Excellent Contrast: Despite its sleek and compactdimensions, the PT-EX800 Series produces a class-leading 7,500 lm* ofbrightness with a contrast ratio of 5,000:1. The iris automatically adjusts tosuit ambient lighting conditions.
  • The Daylight View Basic Function Ensures Clear Images Even in Brightly LitRooms: Panasonic‘s Daylight View Basic technology achieves sharp, easy-to-seeimages by clearly reproducing the details in dark image areas, which werepreviously difficult to see in brightly lit rooms. A built-in sensor measuresthe ambient light, and the Daylight View Basic function adjusts the halftonecolor and brightness level according to the surrounding illumination.
  • Color Adjustment Function: A color adjustment function allows you toeasily correct for slight variations in the color reproduction range ofindividual units set up for multiple projection, particularly inside-by-sideconfiguration. Correction is performed on 3 colors (R, G, B) or 7colors (R, G,B, C, M, Y, W).
  • DICOM Simulation Mode*: This imaging mode is similar to DICOM part 14,which is a medical imaging standard. It reproduces X-ray images withremarkable clarity. (NOTE: * Thisproduct is not a medical instrument.Do not use it for actual medical diagnosis.)
  • Inorganic LCD Materials Maintain High Brightness and Image Quality Longer:The optical block of the PT-EX800 Series of projectors maintains a high levelof performance over time, due to the use of inorganic materials in the LCDpanels and polarizers, thus achieving a replacement cycle of 10,000 hours withhigh brightness and excellent picture quality. It also makes them the logicalchoice for a truly dependable LCD projector system.
  • DIGITAL LINK - The Single Cable Solution: Equipped with a DIGITAL LINKterminal, the PT-EX800 Series allows transmission of HDMI, uncompressed HDdigital video, audio and control signals (Ethernet, RS-232C) for up to 100meters (328 feet) through a single CAT5e (STP) cable or higher.This simplifiescabling and system upgrades, making it ideal for ceiling-mounted and otherpermanent installations.
  • Also Supports Other Manufacturers’ Peripheral Equipment: DIGITAL LINK isan original function added to HDBaseT™ technology. Signals from theET-YFB100Gcan also be relayed to a non-DIGITAL LINK-ready projector by usinganother manufacturer’s equipment based on the same technology.* (NOTE:* Input selection and other ET-YFB100G operations can be performed only whenconnecting to a DIGITAL LINK compatible projector. HDBaseT™ is a trademark ofthe HDBaseT Alliance.)
  • Flexible Installation: The wide adjustment range ofthe poweredhorizontal/vertical lens shift function assures convenience and versatilityduring installation. It lets you easily make adjustments with the remotecontrol. The unit can also be rotated 360 degrees vertically. This means youcan install it at any angle you want, to accommodate different installationconditions.
  • A Wide Selection of Optional Lenses: Choose from a wide lineup of optionallenses for your system, including short-throw, long-throw zoom and fixed-throwlenses for rear projection use. The additional lenses make it easy to adaptyour projector to the installation site. Thelenses attach and detach withone-touch ease.
  • Crestron Connected™ and AMX Device Discovery: The LAN terminal allows acomputer connected to the network to use Crestron Connected™ applicationsoftware to manage and control system devices. Besides, the AMXDeviceDiscovery technology is built in the PT-EX800 Series.
  • Abundant Terminals, Including HDMI, DVI-D Input, and DisplayPort:Extensive interfaces include HDMI and DVI-D input terminals, DisplayPort,DIGITAL LINK and two sets of computer (RGB) input terminals.* The serialterminal (RS-232C) has an Emulate function that lets you continue usingexisting control systems when replacing previous Panasonic models. It is alsopossible to output audio during Standby mode. This is convenient whenconnecting an external audio system through the projector. (NOTE: *Supports YPBPR (YCBCR) signals.)
  • Built-in 10-W Speaker: The PT-EX800 Series projectors feature ahigh-output 10-watt monaural speaker that produces a large sound volumewithout requiring external speakers.
  • Side-by-Side and P-in-P Function* for Effective Presentations andLectures: Two different image sources can be simultaneously displayed onto asingle screen. You can also switch to P-in-P (Picture-in-Picture) mode anddisplay a sub-window onto the main screen. The sub-window can be positionedanywhere on the screen for more flexible and effective imagepresentations.(NOTE: * This function is not effective for some sourcecombinations.)
  • Presentation support/control tools such as Presentation Timer, FreezeFunction, and Digital Zoom
  • Projector identification system for remote control allocation of up to 64projectors
  • Direct Power Off right after use
  • Built-in closed caption decoder (NTSC and 480i (YCBCR) only)
  • A Dust-Resistant Cabinet Design and an Eco Filter that Needs NoReplacement for 15,000 Hours
  • Lamp Replacement Cycle of up to 4,500 hours* (NOTE: * This is themaximum value when the lamp poweris set to Eco2. Increases in the lamp oncycle or extended use with the lampcontinuously turned on will shorten thelamp replacement cycle. When the lamppower is set to Eco1, the lampreplacement cycle is 4,000 hours and 3,000hours when setting to Normal. Theusage environment affects the lampreplacement cycle.)
  • Intelligent Lamp Control System Reduces Power Consumption: When thelamppower is set to Auto, the Intelligent Lamp Control system automaticallyadjusts the lamp output in accordance with the brightness of the projectedimage and reduces it by up to 58 %*. It also combines with color shiftcorrection, which corrects the shift in the color balance that occurs when thelamp output drops. As a result, power consumption is effectively reduced whileexcellent color reproduction is maintained. (NOTE: * With the lamppower set to Auto.)
  • Easy Lamp and Air Filter Replacement: For easy maintenance, you canreplace the filter from the side and the lamp from the top of the projector.The filter and lamp are easily replaced even after the projector is installedon the ceiling.
  • Quiet 29-dB* Design Does Not Interrupt Meetings or Classes: The quietdesign keeps noise levels down to 29 dB,* so the sound of the cooling fan ishardly noticeable. This helps the audience to keep their attention on thespeech when someone is giving a presentation or on the screen images duringquiet scenes. (NOTE: * With the lamp power set to Eco2. 31 dB with lamppower set to Eco1. 37 dB with lamp power set to Normal.)

Panasonic PT-EX800ZU Specifications:

  • For specifications and additional features, please consult the attacheddocumentation.
