Panasonic PT-EW730ZLU
7000 Lumens WXGA Projector WITHOUT Lens

OUR PART #  PTEW730ZLU

Our Price: $3,099.00
List Price: $5,599.00
You save 45%!
In Stock

Recommended Accessories

High Brightness and Excellent Contrast

Despite its sleek and compact dimensions, the Panasonic PT-EW730ZLU produces a class-leading 7,000 lm of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions.

The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms

Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.

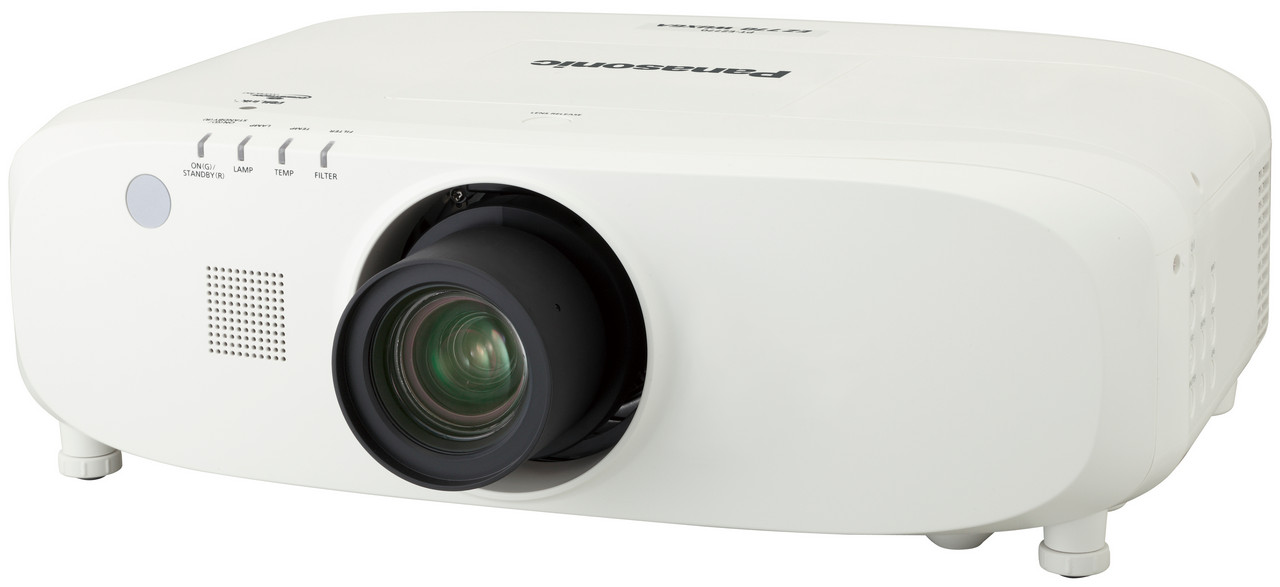

NOTE: Shown above with lens, which is NOT INCLUDED with the purchase of the Panasonic PT-EW730ZLU.

Color Adjustment Function

A color adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection, particularly in side-by-side configuration. Correction is performed on 3 colors (R, G, B) or 7 colors (R, G, B, C, M, Y, W).

DICOM Simulation Mode

This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.

Inorganic LCD Materials Maintain High Brightness and Image Quality Longer

The optical block of the PT-EW730 Series projectors maintains a high level of performance over time, due to the use of inorganic materials in the LCD panels and polarizers, thus achieving a replacement cycle of 10,000 hours with high brightness and excellent picture quality.
It also makes them the logical choice for a truly dependable LCD projector system.

DIGITAL LINK - The Single Cable Solution

Equipped with a DIGITAL LINK terminal, the PT-EW730 Series allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Optional ET-YFB100G Digital Interface Box for Easy Setup - Sold Separately

By combining the optional ET-YFB100G Digital Interface Box, with its HDMI and other input terminals, uncompressed HD digital video, audio and control signals can be transmitted up to 100 m (328 feet) over a single CAT5e (STP) cable or higher. It allows projector connection with only one cable, making it ideal for ceiling-mounted and other permanent installations.

Also, because control signals can be simultaneously transmitted, the ET-YFB100G input signal can easily be switched with the wireless remote control that is included with the projector. The projector can be controlled by either serial or LAN communication.

Also Supports Other Manufacturers' Peripheral Equipment

DIGITAL LINK is an original function added to HDBaseT™ technology. Signals from the ET-YFB100G can also be relayed to a non-DIGITAL LINK-ready projector by using another manufacturer’s equipment based on the same technology.*
*Input selection and other ET-YFB100G operations can be performed only when connecting to a DIGITAL LINK compatible projector.

Flexible Installation

The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.

A Wide Selection of Optional Lenses

Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-
throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.

Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

Crestron Connected™ and AMX Device Discovery

The LAN terminal allows a computer connected to the network to use Crestron Connected™ application software to manage and control system devices. Besides, the AMX Device Discovery technology is built in the PT-EZ770 Series.

Mechanical Lens Shutter

The mechanical lens shutter completely blocks annoying light leakage when the projector is on standby or temporarily not in use, such as during a meeting.

Corner Keystone Correction Enables Angled Projection

All you need to do is designate four points as the corners of the projected image, and this function easily carries out horizontal and vertical keystone correction.

Lens-Centered Design

A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.

Abundant Terminals, Including HDMI, DVI-D Input, and DisplayPort

Extensive interfaces include HDMI and DVI-D input terminals, DisplayPort, DIGITAL LINK and two sets of computer (RGB) input terminals.*
*Supports YPBPR (YCBCR) signals.

The serial terminal (RS-232C) has an Emulate function that lets you continue using existing control systems when replacing previous Panasonic models. It is also possible to output audio during Standby mode. This is convenient when connecting an external audio system through the projector.

Built-in 10W Speaker

The PT-EW730 Series projectors feature a high-output 10-watt monaural speaker that produces a large sound volume without requiring external speakers.

Side-by-Side and P-in-P Function* for Effective Presentations and Lectures

Two different image sources can be simultaneously displayed onto a single screen. You can also switch to P-in-P (Picture-in-Picture) mode and display a sub-window onto the main screen. The sub-window can be positioned anywhere on the screen for more flexible and effective image presentations.
*This function is not effective for some source combinations.

Effective Theft Prevention with the Startup Logo

You can change the default Panasonic start up logo to any logo you want. A new logo can be easily uploaded by connecting a computer to the PT-EZ770 Series through the LAN or serial connection by using the Logo Transfer Software*. An abundance of other security measures are also included, such as a security bar, Key lock, and Security Password. This is very effective for preventing theft.
*Still images that can be uploaded are limited to 1024 x 768 pixel bitmap files. Also, the application will reduce the number of colors to 191.

Other Features:

  • Presentation support/control tools such as Presentation Timer, Freeze Function, and Digital Zoom
  • Projector identification system for remote control allocation of up to 64 projectors
  • Direct Power Off right after use
  • Built-in closed caption decoder (NTSC and 480i (YCBCR) only)

A Dust-Resistant Cabinet Design and an Eco Filter that Needs No Replacement for 15,000 Hours

The cabinet is designed with a straight airflow path, from intake to exhaust. The shielding of the lens section, where dust is likely to enter, has been further improved to keep dust out. And the sealing performance of the air filter unit and air intake duct has been increased to prevent the entry of dust from the filter periphery, resulting in a highly dust-resistant structure.

The Eco Filter unit, which efficiently captures dust in the intake airflow path, requires no replacement for up to15,000 hours.* This large, pleated Micro Cut Filter (electrostatic filter) uses an ion effect to trap minute dust particles, further raising the overall dust-trapping capability.
*The usage environment affects the duration of the filter.

These features minimize the entry of dust into the optical block and maintain brightness over a long period of time, while reducing the hassle of maintenance. Also, in addition to achieving a long replacement cycle, the Eco Filter can be washed with water** and reused as an environmental consideration.
** When washing with water, please follow the procedures listed in the operating instructions. Also, we recommend replacing the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.

Lamp Replacement Cycle of up to 4,500 hours*

The PT-EZ770 Series projectors feature a lamp replacement cycle of up to 4,500 hours.* This helps to lower operating costs by providing longer usage between lamp replacements.
*This is the maximum value when the lamp power is set to Eco2. Increases in the lamp on cycle or extended use with the lamp continuously turned on will shorten the lamp replacement cycle. When the lamp power is set to Eco1, the lamp replacement cycle is 4,000 hours and 3,000 hours when setting to Normal. The usage environment affects the lamp replacement cycle.

Intelligent Lamp Control System Reduces Power Consumption

When the lamp power is set to Auto, the Intelligent Lamp Control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 58 %*. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops. As a result, power consumption is effectively reduced while excellent color reproduction is maintained.
*With the lamp power set to Auto.

Eco Management Functions

A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions, and reduce the lamp power when there is no signal input. You can easily set the Eco Management functions according to operating conditions by using the ECO button on the remote control.

Easy Lamp and Air Filter Replacement

For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The filter and lamp are easily replaced even after the projector is installed on the ceiling. Top-panel lamp replacement / Side filter replacement

Quiet 29-dB* Design Does Not Interrupt Meetings or Classes

The quiet design keeps noise levels down to 29 dB,* so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes.
*With the lamp power set to Eco2. 31 dB with lamp power set to Eco1. 37 dB with lamp power set to Normal.

Panasonic PT-EW730ZLU Specifications:

  • Power Supply: 100-240 V AC, 50/60 Hz
  • Power Consumption: 575 W (0.3 W when STANDBY MODE set to ECO*1, 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON))
  • LCD Panel:
    • Panel Size: 20.0 mm (0.79") diagonal (4:3 aspect ratio)
    • Display Method: Transparent LCD panel (x3, R/G/B)
    • Drive Method: Active matrix
    • Pixels: 1,024,000 (1,280 x 800) x3, total of 3,072-,000 pixels
  • Lens: Opotional powered zoom/focus lenses and fixed-focus lens
  • Screen Size (diagonal): 1.02-10.16 m (40"-400"), 16:10 aspect ratio
  • Brightness*3: 7,000 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens)
  • Center-to-Corner Uniformity*3: 90 %
  • Contrast*3: 5,000:1 (full on/full off, lamp power: Auto, iris: On)
  • Resolution: 1,280 x 800 pixels*4
  • Scanning frequency:
    • DVI-D/HDMI/DiplayPort/DIGITAL LINK: Dot clock: 25-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant)
    • RGB: fH: 15-91 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower (Signals exceeding the dot clock rate of 162 MHz are downsampled.)
    • YPBPR (YCBCR): fH: 15.75 kHz, fV: 60 Hz [480i (525i)], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p], fH: 31.50 kHz, fV: 60 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    • Video/YC: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift*5:
    • Vertical: ±60 % from center of screen (powered)
    • Horizontal: ±10 % from center of screen (powered)
  • Keystone correction range*6: Vertical ±40°, horizontal ±30°
  • Installation: Ceiling/floor, front/rear
  • Built-in speaker: 3.7 cm round shape x 1, output power 10.0 W (monaural)
  • Terminals:
    • DVI-D IN: DVI-D 24-pin x1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • HDMI IN: HDMI 19-pin x1 (Deep Color, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
    • DisplayPort IN: DP-20P x1 (DisplayPort 1.1, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
    • RGB 1 IN: D-Sub HD 15-pin (female) x1 (RGB/YPBPR/YCBCR x1)
    • RGB 2 IN: BNC x5 (RGB or YPBPR/YCBCR/YC/VIDEO IN x1) shared with VIDEO IN (S-video/composite video)
    • VIDEO IN: Pin jack x1 (composite video)
    • MONITOR OUT: D-sub HD 15-pin (female) x1 (RGB x1) (not compatible with all inputs)
    • AUDIO IN: Pin jack x2 (L/R x1), M3 x2 (L-R x2)
    • AUDIO OUT: M3 x1 (L-R x1) for output (variable)
    • SERIAL IN: D-sub 9-pin (female) x1 for external control (RS-232C compliant)
    • REMOTE 1 IN: M3 x1 for wired remote control
    • REMOTE 2 IN: D-sub 9-pin (female) x1 for external control (parallel)
    • LAN / DIGITAL LINK: RJ-45 x1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible)
  • Operation noise*2: 37 dB (lamp power: NORMAL), 31 dB (lamp power: ECO 1), 29 dB (lamp power: ECO 2)
  • Filter: x1, recommended replacement cycle: 15,000 hours*7
  • Cabinet materials: Molded plastic (PC + ABS)
  • Dimensions with legs at shortest position: 20-7/8" W x 6-31/32" H x 15-5/32" D (530 x 177 x 385 mm)
  • Weight: Approximately 21.6 lbs (9.8 kg)
  • Operating environment: Operating temperature: 0-45 °C (32-113 °F)*10, operating humidity: 10-80 % (no condensation)
  • Supplied accessories: Power cord (including power cord holder) x1*11,wireless/wired remote control unit x1,
    batteries for remote control(AAA/R03/LR03 type) x2, software CD-ROM (Logo Transfer Software, MultiProjector Monitoring & Control Software) x1

*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.

*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. The usage environment affects the duration of the lamp.

*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*4 Input signals that exceed the native resolution will be converted to the native resolution.

*5 The axis shift function cannot be used with the ET-ELW21.

*6 With the supplied lens. Value differs when the correction for both directions is operated.

*7 The usage environment affects the duration of the filter.

*10 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes between from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if the ambient temperature exceeds 40 °C (104 °F) (35 °C (95 °F) at high altitude), the LAMP POWER may be automatically switch to Eco 2 to in oeder to protect the projector.

*11 Power cords available (x2) for the UK and Asia only.

NOTES ON USE:

1. Do not install the projector in locations that are subject to excessive water, humidity, steam, or oily smoke. Doing so may result in fire, malfunction, or electric shock.

2. The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a loud sound, or fail to illuminate, due to impact or extended use.

3. The projector uses of high-wattage lamp that becomes very hot during operation. Please observe the following precautions:

  • Never place objects on top of the projector while it is in operation.
  • Make sure there is an unobstructed space of 1,000 mm (39-3/8 in) or more around the projector's exhaust openings.
  • Do not stack projector units directly on top of one another for the purpose of multiple (stacked) projection. When stacking projector units, be sure to provide the amount of space indicated between them. These space requirements also apply to installation where only one projector unit is operating at one time and the other unit is used as a backup.
  • If the projector is placed in a box or enclosure, the temperature of theair surrounding the projector must match the operating temperature listed inthe specifications table during use. Also, make sure the projector’s intakeand exhaust openings are not blocked. Ensure there is sufficient ventilationto prevent hot air from the exhaust openings being recirculated into theintake opening.

4. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods.

  • The lamp replacement cycle varies greatly depending on individual lamp characteristics and usage conditions.
  • The brightness of the lamp will gradually decrease with use.
  • The usage environment affects the lamp replacement cycle.

5. Due to natural characteristics of lamps, screen brightness may fluctuate. This is not an indication of faulty lamp performance.
