Panasonic PT-EW730ZU
7000 Lumens Fixed Installation WXGA LCD Projector

OUR PART #:  PTEW730ZU

The PT-EW730ZU LCD fixed installation projector from Panasonic comes with WXGA resolution (1,280 X 800), 7,000 lumens of brightness and a contrast ratio of 5,000:1.
Learn More

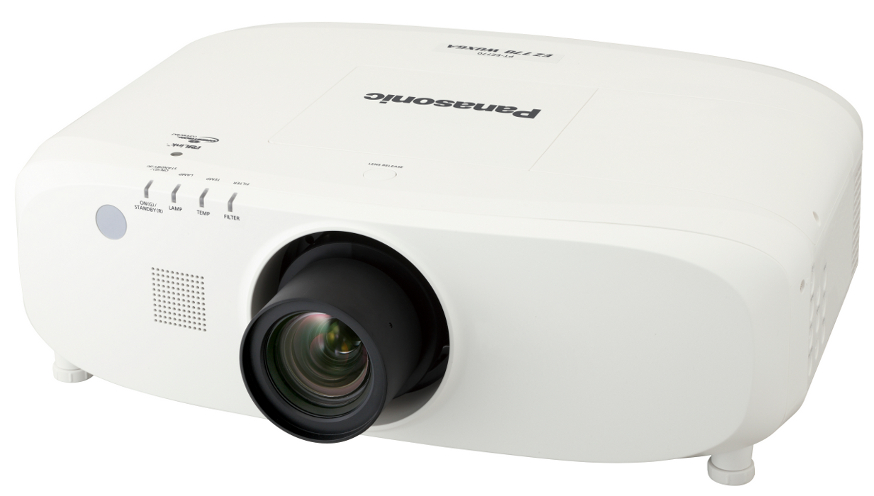

Panasonic PT-EW730ZU - Angled View
Panasonic PT-EW730ZU - Rear View
Panasonic PT-EW730ZU - Front View

Click a thumbnail to see more images. (6 total)

Our Price: $3,299.00
List Price: $5,999.00
You save 45%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Panasonic PT-EW730ZU
Qty:
In Stock

Similar Products

The PT-EW730ZU LCD fixed installation projector from Panasonic comes with WXGA resolution (1,280 X 800), 7,000 lumens of brightness and a contrast ratio of 5,000:1. This model offers a versatile solution for high-impact presentations even in bright conditions. The PT-EW730ZU features the highly durable optical engine with inorganic LCD panels and polarizers providing up to 10,000 hours of maintenance free service. The PT-EW730ZU offers a long lasting eco filter (up to 15,000 hours) and a long lamp replacement cycle of up to 4,500 hours when set on ECO. The PT-EW730ZU has powered lens shift and zoom and a mechanical shutter as well as a wide selection of optional lenses including short-throw, long-throw zoom and fixed-throw lenses for rear projection use.

Equipped with a DIGITAL LINK terminal, the PT-EW730ZU allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Choose from a wide lineup of lenses for the PT-EW730ZU projector including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt the projector to each installation site. The lenses attach and detach with one –touch ease. The projector also provides the versatility of powered lens shift, zoom, and focus, allowing full control of picture adjustment via a remote control.

Additional features of the PT-EW730ZU include a built-in 10-W speaker and a quiet design which keeps noise levels down to a quiet 29-dB avoiding the interruptions of meetings or classes. Side-by-side and picture-in-picture functions provide effective presentations and lectures. Two different image sources can be simultaneously displayed onto a single screen. By switching to picture-in-picture mode you can display a sub-window onto the main screen and position in any of the four corners. The projector is also DICOM-Compatible for presentations relating to medical applications, reproducing complex images with exceptionally high levels of detail and contrast.

Ease of filter and lamp replacement make the total cost of ownership low on the PT-EW730ZU. The filter is easily replaced from the side and the lamp from the top of the projector allowing for ease in maintenance.

Panasonic PT-EW730ZU Includes:

  • Power cord x 1 ( including power cord Holder)
  • Power cord holder/power cord cover x 1
  • Wireless/wired remote control unit x 1
  • Batteries (AAA/R03/LR03 type x 2)
  • Computer cable (1.8 m, for VGA) x 1
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1

Panasonic PT-EW730ZU Features:

  • High luminance and high contrast
  • Easy and highly flexible setup
  • Reduced maintenance costs
  • Energy conservation achieved through the ECO function

Panasonic PT-EW730ZU Specifications:

  • Power Supply: 100 - 240 V AC, 50/60 Hz
  • Power Consumption:
    • 575 W (0.3 W when STANDBY MODE set to ECO*1
    • 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON))
  • Panel Size: 0.76" (19.0 mm) diagonal (16:10 aspect ratio)
  • Display Method: Transparent LCD panel (x 3, R/G/B)
  • Drive Method: Active matrix
  • Pixels: 1024000 (1,280 x 800) x 3, total of 3,072,000 pixels
  • Lens: Powered zoom (throw ratio 1.7-2.8:1), powered focus F 1.7-2.3, f 26.9-45.4 mm
  • Lamp: 400 W UHM lamp x 1, lamp replacement cycle (lamp power: Normal/Eco1/Eco2): 3,000 hours/4,000 hours/4,500 hours*2
  • Screen size (diagonal): 40"-400" (1.02-10.16 m)(16:10 aspect ratio)
  • Color reproducibility: Full color (16,777,216 colors)
  • Brightness*3: 7,000 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens)
  • Center-to-corner uniformity*3: 90%
  • Contrast*3: 5,000:1 (full on/full off, lamp power: Auto, iris: On)
  • Resolution: 1,280 x 800 pixels*4
  • DVI-D/HDMI/DiplayPort/DIGITAL LINK: Dot clock: 25-162MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant)
  • RGB (analog): (Horizontal) 15-91 kHz;(Vertical) 24-120Hz; (Dot clock) 162 MHz or lower (Signals exceeding the dot clock rate of 162MHz are down sampled.)
  • YPBPR(YCBCR):
    • fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    • fH: 33.75 kHz, fV: 60 Hz [1035/60i]
    • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    • fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
    • fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
    • fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
    • fH: 56.25 kHz, fV: 50 Hz [1080/50p]
    • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    • fH: 28.13 kHz, fV: 25 Hz [1080/25p]
    • fH: 27.00 kHz, fV: 24 Hz [1080/24p]
    • fH: 33.75 kHz, fV: 30 Hz [1080/30p]
    • fH: 67.50 kHz, fV: 60 Hz [1080/60p]
  • Video/YC: fH: 15.75 kHz, fV: 60 Hz[NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Vertical Optical axis shift: ±60% from center of screen (powered)
  • Horizontal Optical axis shift: ±10% from center of screen (powered)
  • Keystone correction range: Vertical ±40°, horizontal±30°*6
  • Installation: Ceiling/floor, front/rear
  • Built-in speaker: 3.7 cm round shape x 1, output power10.0 W (monaural)
  • DVI-D in: DVI-D 24-pin x 1 (DVI 1.0 compliant,compatible with HDCP, compatible with single link only)
  • HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
  • DisplayPort IN: DP-20P x 1 (DisplayPort 1.1,compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48kHz/44.1 kHz/32 kHz)
  • RGB 1 IN: D-sub HD 15-pin (female) x 1 (RGB x 1)
  • RGB 2 IN: BNC x 5 (RGB/YPBPR/YCBCRx 1), shared with VIDEO IN (BNC x 1) (composite video)
  • VIDEO In: Pin jack x 1 (composite video)
  • MONITOR OUT: D-sub HD 15-pin (female) x 1 (RGB x 1)(not compatible with all inputs)
  • AUDIO IN: Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
  • AUDIO OUT: M3 x 1 (L-R x 1) for output (variable)
  • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • REMOTE IN: M3 Jack x 1 (for wired remote control)
  • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
  • LAN / DIGITAL LINK: RJ-45 x 1 (for network and DIGITALLINK (video/audio/network/serial control) connection, 100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible)
  • Cabinet materials: Molded plastic (PC + ABS)
  • Filter: x 1, recommended replacement cycle: 15,000 hours*7
  • Dimensions (WxHxD):  20-7/8" x 6-31/32"*8 x 17-1/2" (530 x 177*8 x 445 mm)(with supplied lens)
  • Weight*9: Approximately 23.4 lbs (10.6 kg)(with supplied lens)
  • Noise level*2:
    • 37 dB (dual lamp operation, lamp mode: NORMAL)
    • 31 dB (dual lamp operation, lamp mode: ECO 1)
    • 29 dB (dual lamp operation, lamp mode: ECO 2)
  • Operating temperature : 32°F-104°F *10 (0°C-40°C)
  • Operating humidity: 20% - 80% (no condensation)

Footnotes:

  • * Product model numbers vary depending on the market.
  • *The PT-EW730ZUL delivers the same performance as thePT-EW730ZU, but comes without a lens.
    • *1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
    • *2 This is the maximum value when the lamp power isset to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for0.25 hours. If the lamp is turned on more times or kept on for a long time,the lamp replacement cycle will shorten. In Normal mode, the lamp replacementcycle is 3,000 hours. The usage environment affects the duration of the lamp
    • *3 Measurement, measuring conditions, and method ofnotation all comply with ISO 21118 international standards.
    • *4 Input signals that exceed the native resolutionwill be converted to the native resolution.
    • *5 The axis shift function cannot be used with theET-ELW21.
    • *6 With the supplied lens. Value differs when thecorrection for both directions is operated.
    • *7 The usage environment affects the duration of thefilter.
    • *8 With legs at shortest position.
    • *9 Average value. May differ depending on models.
    • *10 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F)when used at altitudes between from 1,400 m to 2,700 m (4,593 ft to 8,858 ft)above sea level. Also, if the ambient temperature exceeds 40 °C (104 °F) (35°C (95 °F) at high altitude), the LAMP POWER may be automatically switch toEco 2 to in oeder to protect the projector.
