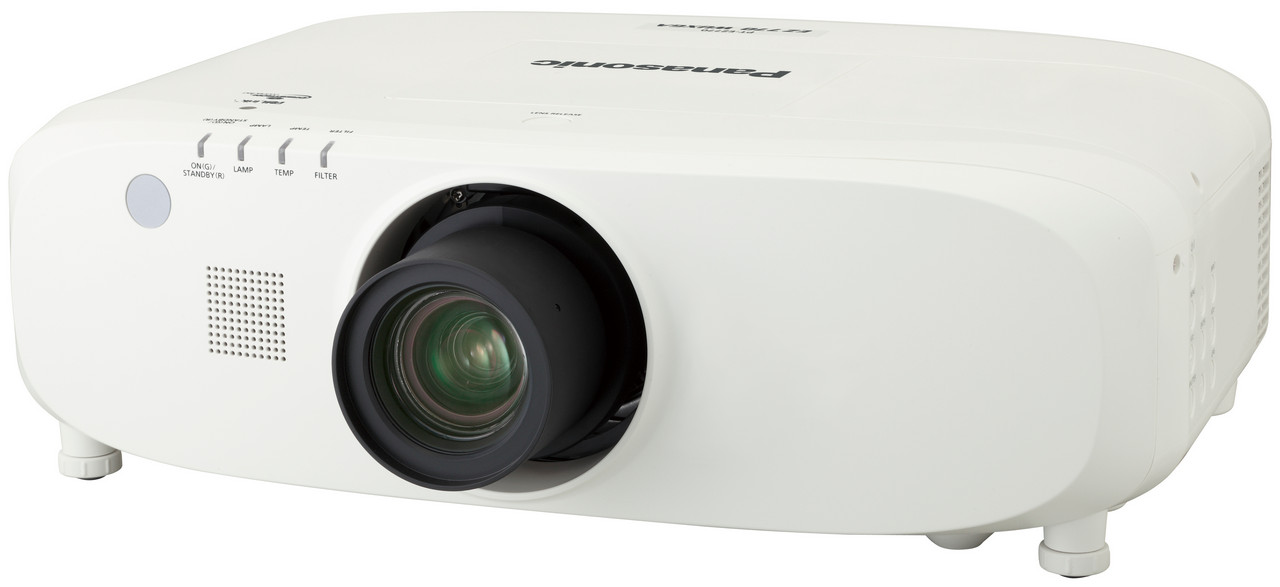

Panasonic PT-EZ770ZU
6500 Lumens WUXGA LCD Projector

OUR PART #:  PTEZ770ZU

The sleek and compact Panasonic PT-EZ770ZU LCD projector with WUXGA resolution (1,920 x 1200) produces a brightness of up to 6,500 lumens.
Learn More
Panasonic PT-EZ770ZU Projector - Side View
Panasonic PT-EZ770ZU Projector - Rear View
Panasonic PT-EZ770ZU Projector - Top View

Click a thumbnail to see more images. (5 total)

Our Price: $4,499.00
List Price: $7,999.00
You save 44%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Panasonic PT-EZ770ZU
Qty:
In Stock

Similar Products

The sleek and compact Panasonic PT-EZ770ZU LCD projector with WUXGA resolution (1,920 x 1200) produces a brightness of up to 6,500 lumens.  The iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of 5,000:1, The PT-EZ770ZU offers a versatile solution for numerous applications including university lecture rooms, engineering or art classes, and large company meeting rooms.

The PT-EZ770ZU features the highly durable optical engine with inorganic LCD panels and polarizers providing up to 10,000 hours of service without maintenance.  The PT-EZ770ZU offers low maintenance with the dust-resistant cabinet design and a washable Eco filter that needs no replacement for up to 15,000 hours.  The PT-EZ770ZU offers a long lamp replacement cycle of up to 4,500 hours.  With the lamp power set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%.  It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp out put drops, resulting a reduction in power consumption while excellent color reproduction is maintained.

Equipped with a DIGITAL LINK terminal, the PT-EZ770ZU allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.  This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Choose from a wide lineup of lenses for the PT-EZ770ZU projector including short-throw, long-throw zoom and fixed-throw lenses for rear projection use.  The additional lenses make it easy to adapt the projector to each installation site.  The lenses attach and detach with one –touch ease.  The projector also provides the versatility of powered lens shift, zoom, and focus, allowing full control of picture adjustment via a remote control.

Additional features of the PT-EZ770ZU include a built-in 10-W speaker and a quiet design which keeps noise levels down to a quiet 29-dB avoiding the interruptions of meetings or classes.  Side-by-side and picture-in-picture functions provide effective presentations and lectures.  Two different image sources can be simultaneously displayed onto a single screen.  By switching to picture-in-picture mode you can display a sub-window onto the main screen and position in any of the four corners.  The projector is also DICOM-Compatible for presentations relating to medical applications, reproducing complex images with exceptionally high levels of detail and contrast.

Ease of filter and lamp replacement make the total cost of ownership low on the PT-EZ770ZU.  The filter is easily replaced from the side and the lamp from the top of the projector allowing for ease in maintenance.

Panasonic PT-EZ770ZU Includes:

  • PT-EZ770ZU projecytor
  • 1x Power cord with power cord holder/cover
  • 1x wireless/wired remote control unit
  • 2x AAA batteries
  • 1x 1.8m VGA computer cable
  • 1x Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)

Panasonic PT-EZ770ZU Specifications:

  • UPC Code: 885170178533
  • Power Supply: 100 - 240 V AC, 50/60 Hz
  • Power Consumption: 590 W (0.3 W when STANDBY MODE set to ECO*, 10 W when STANDBY MODE set to NORMAL (37 W when STANDBY MODE of AUDIO SETTING set to ON))
    *When the STANDBY MODE is set toECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
  • Panel Size: 0.76" (19.0 mm) diagonal (16:10 aspectratio)
  • Display Method: Transparent LCD panel (x3, R/G/B)
  • Drive Method: Active matrix
  • Pixels: 2,304,000 (1,920 x 1,200) x3, total of6,912,000 pixels
  • Lens: Powered zoom (throw ratio 1.7-2.8:1),powered focus F 1.7-2.3, f 26.9-45.4 mm
  • Lamp: 400 W UHM lamp x1, lamp replacement cycle (lamp power: Normal/Eco1/Eco2): 3,000 hours/4,000 hours/4,500 hours**
    **This is the maximum value when the lamp power is set toEco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25hours.  If the lamp is turned on more times or kept on for a long time,the lamp replacement cycle will shorten.  In Normal mode, the lampreplacement cycle is 3,000 hours.  The usage environment affects theduration of the lamp.
  • Screen size (diagonal): 40"-400" (1.02-10.16 m) (16:10aspect ratio)
  • Brightness***: 7,000 lm (lamp power: Auto/Normal, Dynamic mode, Standard lens)
  • Center-to-corner uniformity***: 90%
  • Contrast***: 5,000:1 (full on/full off, lamppower: Auto, iris: On)
  • Resolution: 1,920 x 1,200 pixels***
    ***Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • DVI-D/HDMI/DiplayPort/DIGITAL LINK: Dot clock: 25-162MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RBcompliant)
  • RGB (analog): (Horizontal) 15-91 kHz; (Vertical)24-120 Hz; (Dot clock) 162 MHz or lower (Signals exceeding the dot clock rateof 162 MHz are downsampled.)
  • YPBPR(YCBCR): fH: 15.75 kHz, fV: 60 Hz [480i (525i)],fH: 31.50 kHz, fV: 60 Hz [480p (525p)], fH: 45.00 kHz, fV: 60 Hz [720(750)/60p], fH: 33.75 kHz, fV: 60 Hz [1035/60i], fH: 28.13 kHz, fV: 50 Hz[1080 (1125)/50i], fH: 28.13 kHz, fV: 50 Hz [1080/25sF], fH: 27.00 kHz, fV: 48Hz [1080/24sF], fH: 33.75 kHz, fV: 60 Hz [1080/30sF], fH: 56.25 kHz, fV: 50 Hz[1080/50p], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 31.25 kHz, fV: 50 Hz[576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 33.75 kHz, fV: 60Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 25 Hz [1080/25p], fH: 27.00 kHz, fV:24 Hz [1080/24p], fH: 33.75 kHz, fV: 30 Hz [1080/30p], fH: 67.50 kHz, fV: 60Hz [1080/60p]
  • Video/YC:  fH: 15.75 kHz, fV: 60 Hz[NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Vertical Optical axis shift: ±60% from center of screen (powered)
  • Horizontal Optical axis shift: ±10% from centerof screen (powered)
  • Keystone correction range: Vertical ±40°, horizontal ±30°*6
  • Installation: Ceiling/floor, front/rear
  • Built-in speaker: 3.7 cm round shape x1, output power 10.0 W (monaural)
  • DVI-D in: DVI-D 24-pin x1 (DVI 1.0 compliant, compatible with HDCP,compatible with single link only)
  • HDMI IN: HDMI 19-pin x1 (Deep Color, compatible with HDCP)
  • DisplayPort IN: DP-20P x1 (DisplayPort 1.1, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48kHz/44.1 kHz/32 kHz)
  • RGB 1 IN: D-sub HD 15-pin (female) x1 (RGB x1)
  • RGB 2 IN: BNC x5 (RGB/YPBPR/YCBCR x1), shared with VIDEO IN (BNC x1) (composite video)
  • VIDEO In: Pin jack x1 (composite video)
  • MONITOR OUT: D-sub HD 15-pin (female) x1 (RGB x1) (not compatible with all inputs)
  • AUDIO IN: Pin jack x2 (L/R x1), M3 x2 (L-R x2)
  • AUDIO OUT: M3 x1 (L-R x1) for output (variable)
  • SERIAL IN: D-sub 9-pin (female) x1 for external control (RS-232C compliant)
  • REMOTE IN: M3 Jack x1 (for wired remote control)
  • REMOTE 2 IN: D-sub 9-pin (female) x1 for external control (parallel)
  • LAN / DIGITAL LINK: RJ-45 x1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX,compliant with PJLink, HDCP compatible, Deep Color compatible)
  • Cabinet materials: Molded plastic (PC + ABS)
  • Filter: x1, recommended replacement cycle: 15,000 hours****
    ****The usage environment affects the duration of the filter.
  • Dimensions (with legs at shortest position): 20-7/8" Wx 6-31/32" H x 17-1/2" D (530 x 177 x 445 mm) (with supplied lens)
  • Weight: Approximately 23.4 lbs (10.6 kg) (with supplied lens)
  • Noise level: 37 dB (dual lamp operation, lamp mode: NORMAL), 31 dB (dual lamp operation, lamp mode: ECO 1), 29 dB (dual lamp operation, lamp mode: ECO 2)
  • Operating temperature: 0°C-40°C (32°F-104°F)*****
  • Operating humidity: 20% - 80% (no condensation)
    *****The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes between from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if the ambient temperature exceeds 40 °C (104 °F) (35 °C (95 °F) at high altitude), the LAMP POWER may be automatically switch to Eco 2 to in order to protect the projector.
