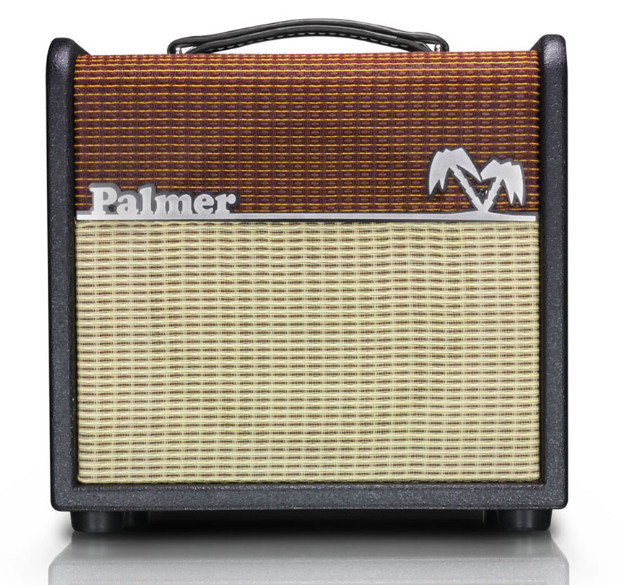

Palmer FAB-5
5W 1x10" Tube Combo Electric Guitar Amplifier

OUR PART #:  FAB-5

The Palmer FAB 5 combo is loaded with an extremely powerful 10" Ragin Cajun speaker by Eminence and has a maximum output of 5W. The design is an all-tube, single-ended circuit.
Learn More
Our Price: $699.95
List Price: $1,399.95
You save 50%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Palmer FAB-5
Qty:
In Stock

Similar Products

The Palmer FAB 5 combo is loaded with an extremely powerful 10" Ragin Cajun speaker by Eminence and has a maximum output of 5W.

The design is an all-tube, single-ended circuit. The preamp tube is a time-tested 12AX7 (ECC83); the output stage uses a 6V6 tube in conjunction with an EZ81 tube rectifier. This makes the FAB 5 especially suitable for blues and rock sounds. The natural distortion and direct, lively response are typical for single-ended circuits. The amplifier is equipped with an internal power soak, which makes it possible to reduce the output by half or even to "bedroom level" (5 W - Full, 2 W - Room, 0,05 W - Bedroom).

Moreover, the amp also has an additional speaker output for connecting external speakers as well as a boost function that can be activated using an optionally available foot switch (when no foot switch is connected, the boost function is active and can be controlled using the corresponding boost knob).

Palmer FAB-5 Specifications:

  • Type: Combo
  • Technology: Tube
  • Class: A
  • Power: 5 W
  • Inputs: 1
  • Input connectors: 6.3 mm Jack
  • Input impedance: 1 M Ohm(s)
  • Outputs: 1
  • Output connectors: 6.3 mm Jack
  • Output impedance: 8 Ohm(s)
  • Loudspeaker type: Eminence Ragin Cajun
  • Loudspeaker diameter: 10" (254 mm)
  • Channels: 1
  • Display: Power
  • Controls: tone, volume, attenuator, Boost, mainsvoltage selector
  • FX loop: No
  • Preamp tubes: 12AX7
  • Power amp tubes: 6V6
  • Rectifier: Tube EZ81
  • Operating voltage: 230 / 115 V AC
  • Power consumption: 70 W
  • Cabinet material: Sheet steel, plywood
  • Demensions (WxDxH): 360 x 230 x 345 mm
  • Weight: 10 kg
