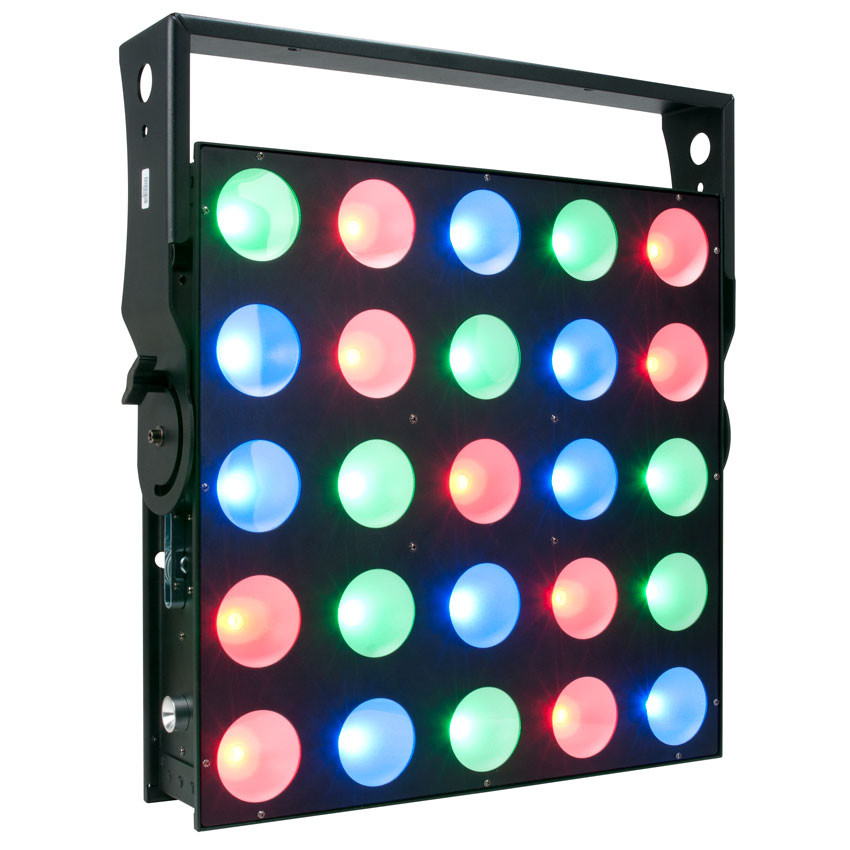

Elation Pro Lighting CUEPIX Panel
25x30 Watt COB Matrix Panel

OUR PART #:  CUEPIX-PANEL

Elation Lighting's CUEPIX Panel features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management)...
Learn More
Our Price: $1,280.00
List Price: $1,600.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting CUEPIX Panel
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Elation Lighting's CUEPIX Panel features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).

Elation Lighting CUEPIX Panel Features:

  • High Power Long Life 3-in-1 RGB COB LEDs
  • 60° Beam Angle / 80° Field Angle
  • Color Mixing + Individual Control of Each COB Module
  • Dimming : 0% - 100% of Each COB Module
  • Strobe, and Zone Chase Effects
  • RDM (Remote Device Management)
  • Flicker FREE Operation for TV and FILM
  • Stand Alone Operation with Master/Slave Function
  • Integrated Rigging Points and Optional Rigging Bracket

Elation Lighting CUEPIX Panel Specifications:

  • SOURCE
    • (25) 30W 3-in-1 RGB COB LEDs
    • 100,000 Hour Average Life
  • PHOTOMETRIC DATA
    • 15,490 Max LUX (1439 fc) @2M (Full On)
    • 3310 Max LUX (307 fc) @2M (Red LEDs)
    • 3720 Max LUX (346 fc) @2M (Green LEDs)
    • 5870 Max LUX (545 fc) @2M (Bllue LEDs)
  • EFFECTS
    • Variable / Selectable Dimming Curves
    • Auto Chase and Zone Program Macros
  • CONTROL / CONNECTIONS
    • 5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)
    • 4 Button Control Panel and LCD Menu Display
    • 3pin and 5pin DMX In/Out
    • RDM (Remote Device Management)
    • powerCON Power In/Out
  • SIZE / WEIGHT
    • Length: 24.8” (630 mm)
    • Width: 5.1” (130 mm)
    • Vertical Height: 25.6” (650 mm)
    • Weight: 36.4 lbs. (16.5 kg)
  • ELECTRICAL / THERMAL
    • AC 100-240V - 50/60Hz
    • 750W Max Power Consumption
    • -14°F to 113°F (-10°C to 45°C)
  • APPROVALS / RATINGS
    • CE pending
    • cETLus pending
    • RoHs Pending
    • IP20 Rated
  • INCLUDED ACCESSORIES: (1) powerCON Cable
