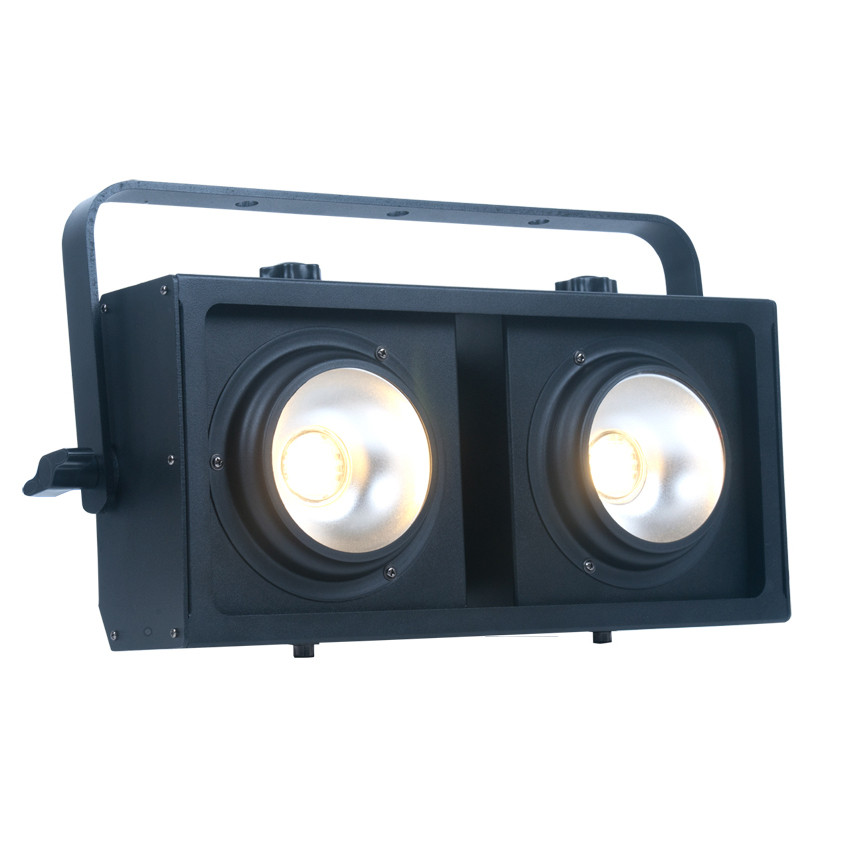

Elation CUEPIX Blinder WW2 2x100W COB LED Blinder

OUR PART #: CUEPIX-BLINDER-WW MFR #: CUE265

Copied to clipboard

The CUEPIX Blinder WW2 features (2) long life 100W Warm White 3,200K COB LEDs, at a 60° beam angle. ...Read more

Elation CUEPIX Blinder WW2 2x100W COB LED Blinder Image 1
Elation CUEPIX Blinder WW2 2x100W COB LED Blinder Image 2
Elation CUEPIX Blinder WW2 2x100W COB LED Blinder Image 3
f-FcWkTOOHs?rel=0
1 Video
Elation CUEPIX Blinder WW2 2x100W COB LED Blinder
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The CUEPIX Blinder WW2 features (2) long life 100W Warm White 3,200K COB LEDs, at a 60° beam angle. Controlling this fixture is done via RDM (Remote Device Management), with individual control of each COB module including manual pan focus, variable and selectable dimming curves, and strobe effects. The flicker free operation is ideal for TV and Film applications. I/O connection is done via 3pin and 5pin DMX and powerCon in/out connections, and LCD menu display with 4 button control panel. Additional highlights include an integrated rigging bracket, and a multi-voltage universal auto switching power supply (100-250v).

Features

  • High Power Long Life Warm White COB LEDs
  • 60° Beam Angle / 80° Field Angle
  • Individual Control of Each COB Module
  • Dimming : 0% - 100% of Each COB Module
  • RDM (Remote Device Management)
  • Flicker FREE Operation for TV and FILM
  • Stand Alone Operation with Primary/Secondary Function
  • Integrated Rigging Bracket

Specifications

  • SOURCE
    • (2) 100W Warm White 3,200K COB LEDs
    • 100,000 Hour Average Life
  • PHOTOMETRIC DATA
    • 5900 Max LUX (548 fc) @ 1M (Full On)
  • EFFECTS
    • Strobe
    • Variable / Selectable Dimming Curves
  • CONTROL / CONNECTIONS
    • 4 DMX Channel Modes (1 / 2 / 3 / 4)
    • 4 Button Control Panel and LCD Menu Display
    • 3pin and 5pin DMX In/Out
    • RDM (Remote Device Management)
    • powerCON Power In/Out
  • SIZE / WEIGHT
    • Length: 18.8” (478 mm)
    • Width: 7.1” (181.2 mm)
    • Horizontal Height: 10.2” (259.4 mm)
    • Weight: 11.2 lbs. (5.1 kg)
  • ELECTRICAL / THERMAL
    • AC 100-240 V - 50/60 Hz
    • 229 W Max Power Consumption
    • -14° F to 113° F (-10° C to 45° C)
  • APPROVALS / RATINGS
    • CE Approved
    • cETLus pending
    • RoHs pending
    • IP20 Rated
  • INCLUDED ACCESSORIES: (1) powerCON Cable
