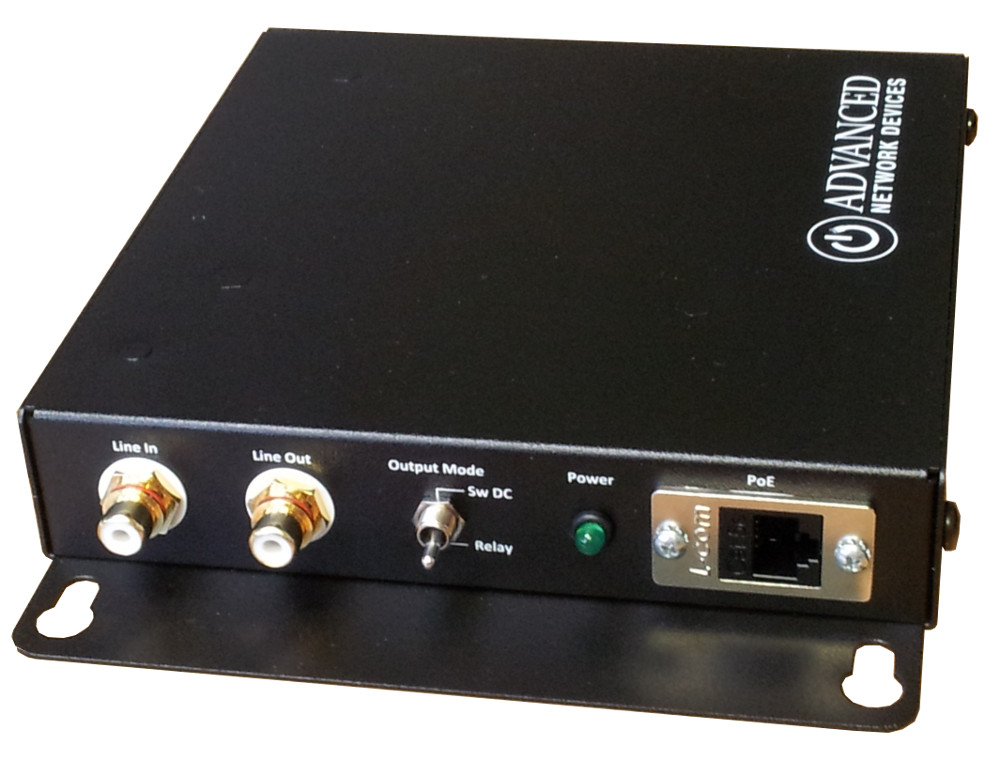

Advanced Network Devices ZONEC2-IC Singlewire InformaCast-compatible Zone Controller

The Advanced Network Devices Zonec2 supports PoE (Power over Ethernet) and is mainly used to support existing analog speaker installations. The Zonec2 can connect directly to an amplifier and provides a complete solution for larger areas with multiple speakers.

External software is not required for atomic timekeeping and sending text messages from the devices web server. The devices can operate stand-alone. However, software can be used to augment the devices capabilities and integrate the device into a mass notification system, on the phone network, etc.

Supports third-party software such as InformaCast (SingleWire), SA-Announce (Syn-Apps), MessageNet Systems, BellCommander (AcroVista), Application Gateway 2000 (Nortel), UC Server by Objectworld (Adtran) and others. Can run Clockwise and third-party software concurrently.

Supported Protocol:

• SIP
• IPv4
• HTTP
• SLP
• TFTP
• NTP
• DHCP
• IGMP
• ICMP
• TCP/IP
• UDP
• MDNS & MDNS-SD

Advanced Network Devices ZONEC-2-IC Features:

• Connects to current analog speaker systems while still providing an IP solution endpoint
• Field up-gradable built in web server
• Full multicast and broadcast support to individual, group or all devices
• PoE /PoE:
  • PoE (Power of Ethernet)
  • Can connect to external amplifier
  • Provides a complete solution for larger areas with multiple devices
• Built in Web Server:
  • Configurable volume
  • Device Status
  • Field upgradable
• Interfaces:
  • Unbalanced line level audio in/out
  • 2 general purpose inputs
  • 1 general purpose output with option to provide 12V DC power
  • 8 ohm speaker output
  • Power Indicator
• Easy Installation:
  • Only requires CAT 5 connection (up to 300ft) to network
  • Power over Ethernet (no power cord or adapter). No other equipment needed
• Multicast:
  • Full multicast and broadcast support. Send audio and/or scrolling text to individual devices, all devices or groups of devices.

Advanced Network Devices ZONEC-2-IC Specifications:

• Weight: 1lbs
• Approx: 6"x 10"x 2"
• PoE (IEEE802.3af)
• 10/100 Mb network connection
