Philips Color Kinetics 101-000068-00
iColor Flex LED Strand Light in White with Translucent Dome Lens

OUR PART #  101-000068-00

Our Price: $488.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

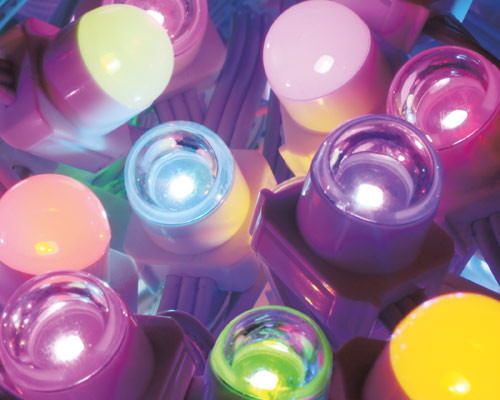

The Philips Color Kinetics' iColor Flex MX is a multi-purpose, high-intensity strand of 50 full-color LED nodes for generating extraordinary effects without the constraints of fixture size or shape. iColor Flex MX enables patterns and video on almost any interior or exterior surface, including ceilings, floors, three-dimensional objects, sculptures, and more. Its small node size allows installation in tighter spaces than the larger iColor Flex SLX and iColor Flex LMX strands.

Philips Color Kinetics iColor Flex MX Features:

  • Each node produces full-color light output of up to1.44 candela (full on).
  • Flexible form factor, offering maximum lighting control at 25 W per strand, accommodates unique lighting installations, including two- and three-dimensional video displays.
  • Strands can be mounted like traditional string lights and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting.
  • Standard on-center node spacing of 4" (102 mm) or12" (305 mm) along a three-wire, 18 AWG cable. Custom on-center node spacing from 2" (51 mm) to 24" (610 mm). Standard 50-node lengths can be shortened in the field.
  • Leader cables available in different lengths.
  • Works seamlessly with the complete Philips line of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, as well as third-party DMX controllers.
  • Fully sealed for maximum fixture life and IP66-rated for outdoor applications.
  • Standard and custom leader cables - Standard leader cables of 25 ft (7.6 m), 50 ft (15.2), and 100 ft (30.5 m) can be field-cut to support specific applications. Custom leader cable lengths are also available.
  • Durable and weather-resistant - Fully sealed for maximum fixture life andIP66-rated for outdoor applications.

Philips Color Kinetics iColor Flex MX Specifications:

Output

  • Lumen Maintenance*: 50,000+ hours L50@ 50° C (full output)
  • LED Channels:Red/Green/Blue

Electrical

  • Input Voltage: 7.5 VDC via PDS-60ca and sPDS-480ca
  • Power Consumption: .5 W max. per node at full output, steady state
  • Power Factor: .98 @ 120 VAC

Control

  • Interface:
    • sPDS-480ca 7.5V (Ethernet)
    • PDS-60ca 7.5V (Pre-programmed or DMX / Ethernet)
  • Control System: Philips full range of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, or third-party DMX controllers

Physical

  • Node Dimensions (HxWxD): .63" x .63" x .75" (16 x 16 x 19 mm)
  • Weight: 13.4 oz (381 g) 50-node strand, 4 inon-center node spacing
  • Housing: White or black polycarbonate
  • Lens: Clear or translucent plastic
  • Fixture Connections: Integrated watertight 3-pinconnector
  • Temperature Ranges:
    • -40° – 122° F (-40° – 50° C) Operating
    • =32°F(=0°C) Handling
    • -4° – 122° F (-20° – 50° C) Startup
    • -22° – 185° F (-30° – 85° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
  • sPDS-480ca 7.5V: 16 strands
  • PDS-60ca 7.5V: 2 strands
  • Certification and Safety Certification: UL/cUL, FCC Class A, CE
  • Environment: Dry / Damp / Wet Location, IP66

Philips Color Kinetics 101-000068-00
iColor Flex LED Strand Light in White with Translucent Dome Lens

OUR PART #  101-000068-00

Product Information:

The Philips Color Kinetics' iColor Flex MX is a multi-purpose, high-intensity strand of 50 full-color LED nodes for generating extraordinary effects without the constraints of fixture size or shape. iColor Flex MX enables patterns and video on almost any interior or exterior surface, including ceilings, floors, three-dimensional objects, sculptures, and more. Its small node size allows installation in tighter spaces than the larger iColor Flex SLX and iColor Flex LMX strands.

Philips Color Kinetics iColor Flex MX Features:

  • Each node produces full-color light output of up to1.44 candela (full on).
  • Flexible form factor, offering maximum lighting control at 25 W per strand, accommodates unique lighting installations, including two- and three-dimensional video displays.
  • Strands can be mounted like traditional string lights and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting.
  • Standard on-center node spacing of 4" (102 mm) or12" (305 mm) along a three-wire, 18 AWG cable. Custom on-center node spacing from 2" (51 mm) to 24" (610 mm). Standard 50-node lengths can be shortened in the field.
  • Leader cables available in different lengths.
  • Works seamlessly with the complete Philips line of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, as well as third-party DMX controllers.
  • Fully sealed for maximum fixture life and IP66-rated for outdoor applications.
  • Standard and custom leader cables - Standard leader cables of 25 ft (7.6 m), 50 ft (15.2), and 100 ft (30.5 m) can be field-cut to support specific applications. Custom leader cable lengths are also available.
  • Durable and weather-resistant - Fully sealed for maximum fixture life andIP66-rated for outdoor applications.

Philips Color Kinetics iColor Flex MX Specifications:

Output

  • Lumen Maintenance*: 50,000+ hours L50@ 50° C (full output)
  • LED Channels:Red/Green/Blue

Electrical

  • Input Voltage: 7.5 VDC via PDS-60ca and sPDS-480ca
  • Power Consumption: .5 W max. per node at full output, steady state
  • Power Factor: .98 @ 120 VAC

Control

  • Interface:
    • sPDS-480ca 7.5V (Ethernet)
    • PDS-60ca 7.5V (Pre-programmed or DMX / Ethernet)
  • Control System: Philips full range of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, or third-party DMX controllers

Physical

  • Node Dimensions (HxWxD): .63" x .63" x .75" (16 x 16 x 19 mm)
  • Weight: 13.4 oz (381 g) 50-node strand, 4 inon-center node spacing
  • Housing: White or black polycarbonate
  • Lens: Clear or translucent plastic
  • Fixture Connections: Integrated watertight 3-pinconnector
  • Temperature Ranges:
    • -40° – 122° F (-40° – 50° C) Operating
    • =32°F(=0°C) Handling
    • -4° – 122° F (-20° – 50° C) Startup
    • -22° – 185° F (-30° – 85° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
  • sPDS-480ca 7.5V: 16 strands
  • PDS-60ca 7.5V: 2 strands
  • Certification and Safety Certification: UL/cUL, FCC Class A, CE
  • Environment: Dry / Damp / Wet Location, IP66
