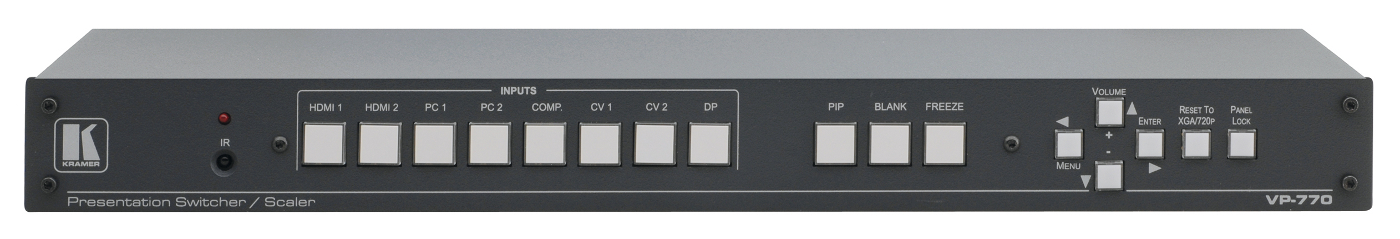

Kramer VP-770
8-Input ProScale Presentation Switcher/Scaler

OUR PART #:  VP770

The VP-770 is a high-performance presentation switcher and scaler for composite video, component video, DisplayPort, computer graphics video, and HDMI signals.
Learn More
Our Price: $1,916.00
List Price: $2,395.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Kramer VP-770
In Stock

Similar Products

The VP-770 is a high-performance presentation switcher and scaler for composite video, component video, DisplayPort, computer graphics video, and HDMI signals. It scales the video, embeds the audio and outputs the signal to HDMI, computer graphics and DGKat twisted pair, together with digital audio, unbalanced stereo and a 10-watt amplified balanced stereo speaker output.


  • Projection systems in conference rooms, boardrooms, auditoriums, hotelsand churches, production studios, rental and staging. Any application wherehigh quality conversion and switching of multiple and different video signalsto graphical data signals is required for projection purposes.


  • K-IIT XL™ Picture-in-Picture Image InsertionTechnology - Ultra-stable picture-in-picture, picture-and-picture, and splitscreen capability. Any video source can be inserted into or positioned next toa computer graphics video source or vice versa with window positioning andsizing controls.
  • K-Storm™ Scaling Technology - Kramer’s extremely highperformance scaling technology for converting the incoming video signal with aminimum of motion artifacts. Up- and down-scaling of computer graphics videosignals is possible.
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Videoswitching transitions are clean and ultra-fast. The video fades to black andthe new input fades from black for smooth, glitch-free switching. The outputsignal provides constant sync so the display never glitches.
  • Advanced EDID Management - For each input andanalysis of the EDID of a selectable master connection to one of the outputs.
  • HDTV Compatible.
  • HDCP Compliant - The HDCP (High Definition ContentProtection) license agreement allows copy-protected data on the HDMI input topass only to the HDMI output.
  • Video Inputs - Component (Y, Pb, Pr) video on RCAconnectors, DisplayPort (DP), 2 computer graphics on 15-pin HD connectors, 2composite video on RCA connectors and 2 HDMI.
  • Scaled Outputs - HDMI, computer graphics on a 15-pinHD connector and DGKat twisted pair on an RJ-45 connector simultaneously.
  • Multiple Output Resolutions - Up to 2K and 1080p.
  • HDMI Deep Color Support.
  • Luma Keying - Via PIP window.
  • Vertical Keystoning.
  • Built-in ProcAmp - Color, sharpness, contrast,brightness and gamma are set individually for each input.
  • 3D Comb Filtering - Provides the best quality colorseparation for composite video inputs.
  • Built-in Time Base Corrector - Stabilizes unstablevideo sources.
  • Powerful Noise Reduction Filters - Temporal, block,mosquito and combing.
  • Picture Zooming - Up to 1600% both on main and PIPpicture.
  • De-interlacing - 3:2 and 2:2 pull-down; 24sfhandling.
  • Multiple Aspect Ratio Selections - Follow input,follow output, best fit, letterbox and overscan.
  • Dual Window Display - Preset picture-in-picture,picture-and-picture and split screens, as well as customized window layouts.
  • Audio Inputs - 2 HDMI, 2 computer graphics and 1DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV and 1 S/PDIF on RCAconnectors.
  • Audio Outputs - 1 S/PDIF on an RCA connector, 1unbalanced stereo audio on a 3-pin terminal block connector and a 2x10Wbuilt-in power amplifier with speaker outputs on terminal block connectors.
  • Input and Output Audio Level Adjustment.
  • Audio Delay - For lip-sync correction.
  • Selectable Power Saving Modes - For efficient energyusage.
  • Microphone Input - Supports mix and talk-overfeatures, as well as delay to prevent feedback.
  • Non-Volatile Memory - Saves final settings.
  • Firmware Upgrades - Via Ethernet and RS-232.
  • Flexible Control Options - Front panel buttons,contact closure, OSD (on-screen display) via front panel buttons or IR remote(remote control included).
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack "ears" included.



  • 2 HDMI connectors
  • 2 VGA on 15-pin HD connectors
  • 1 component video on 3 RCA connectors
  • 2 composite video on RCA connectors
  • 1 DisplayPort connector
  • 2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on3.5mm mini jack connectors
  • 1 S/PDIF (for component video input) digital audio onan RCA connector
  • 1 mic on a 3.5mm mini jack connector


  • 1 VGA on a 15-pin HD connector
  • 1 HDMI connector
  • 1 DGKat on an RJ-45 connector
  • 1 S/PDIF digital audio on an RCA connector
  • 1 unbalanced stereo audio on a 3-pin terminal blockconnector
  • 1 10W speaker amplifier balanced stereo audio onterminal block connectors
  • Compliance with Standards: Supports HDMI and HDCP;DisplayPort 1.1a.
  • Output Resolutions: 640x480 @ 60, 640x480 @ 75,800x600 @ 50, 800x600 @ 60, 800x600 @ 75, 1024x768 @ 50, 1024x768 @ 60,1024x768 @ 75, 1280x768 @ 50, 1280x768 @ 60, 1280x800 @ 60, 1280x1024 @ 50,1280x1024 @ 60, 1280x1024 @ 75, 1360x768p60, 1366x768 @ 50, 1366x768 @ 60,1400x1050 @ 50, 1400x1050 @ 60, 1600x900 @ 60, 1600x1200 @ 50, 1600x1200 @ 60,1680x1050 @ 60, 1920x1200 @ 60, 480i60, 480p60, 576i50, 576p50, 720p50,720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60, 2048x1080 @ 60Hz, 2048x1080 @ 50Hz.
  • Controls: Front panel buttons, OSD, IR remotecontrol, RS-232 on a 9-pin D-sub connector, Ethernet, contact closure.
  • Power Consumption: 100-240V AC, 56VA max.
  • Dimensions: 19" x 9.3" x 1U (W, D, H) rack mountable.
  • Weight: 2.5kg (5.5lbs) approx.
  • Accessories: Power cord, rack “ears”, IR remote control, controlapplication program via RS-232 (PC) or the Ethernet.
