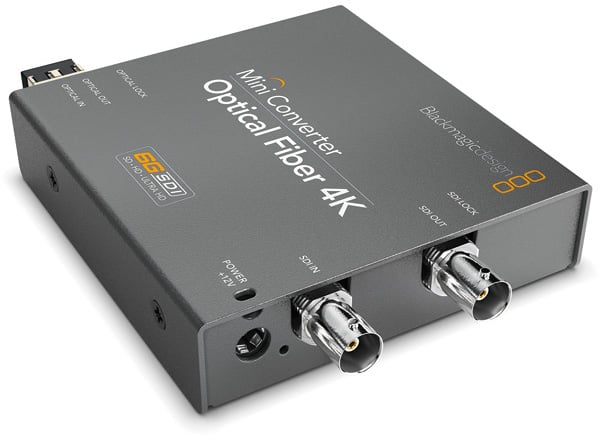

Blackmagic Design CONVMOF-4K
Optical Fiber to SDI, SDI to Optical Fiber 4K Mini Converter

OUR PART #:  CONVMOF-4K

Now you can convert 6G-SDI to Optical Fiber, and Optical Fiber to 6G-SDI simultaneously.
Learn More
Our Price: $470.25
List Price: $495.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMOF-4K
Qty:
In Stock

Similar Products

Now you can convert 6G-SDI to Optical Fiber, and Optical Fiber to 6G-SDI simultaneously.  Blackmagic Design's Mini Converter Optical Fiber automatically switches between any SD, HD and UltraHD video standards and each direction can be completely independent.

Specifications:

Connections

  • SDI Video Input: Auto-switchable between SD, HD and 6G-SDI
  • SDI Video Output: Automatically matches the SD, HD and 6G-SDIoptical input
  • Analog Video: None
  • Analog Audio: None
  • AES/EBU Digital Audio: None
  • Optical Fiber Video Input: 1x 10 bit SD/HD/6G-SDI switchable
  • Optical Fiber Video Output: 1x 10 bit SD/HD/6G-SDI switchable
  • Optical Fiber Audio Input: 16 channel embedded
  • Optical Fiber Audio Output: 16 channel embedded
  • Multi Rate Support: Auto detection of SD, HD or 6G-SDI
  • Updates and Configuration: None
  • Reclocking: Yes

Standards

  • SD Format Support: 525/29.97 NTSC, 625/25 PAL
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94,1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25,1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
  • 2K Format Support: 2048x1080p23.98, 2048x1080p24, 2048x1080p25,2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25,3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656,ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
  • SDI Video Rates: SDI video connections are switchable betweenstandard definition, high definition and 6G-SDI
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit
  • SDI Color Precision: 4:2:2 and 4:4:4
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects SD, HD or 6G-SDI
  • ASI Support: Yes
  • Analog Format Support: None
  • Analog Color Space: None
  • Analog Color Precision: None

Extras

  • Software Control: None
  • Internal Software Upgrade: Via included updater application
  • Settings Control: None
  • Power Supply: +12V universal power supply included with internationalsocket adapters for all countries. Cable tie point.
  • Power Consumption: 3.84 Watts
  • Operational Voltage Range: 12V - 30V DC
  • Product Warranty: 3 Year Limited Manufacturer's Warranty
