Chief MSMVU Medium FUSION™ Micro-Adjustable Pull-Out Mount in Black

OUR PART #: MSMVU

Copied to clipboard

This mount from Chief Manufacturing is great for video wall applications, offering easy installation and maintenance for multiple screens. ...Read more

Chief MSMVU Medium FUSION™ Micro-Adjustable Pull-Out Mount In Black Image 1
Chief MSMVU Medium FUSION™ Micro-Adjustable Pull-Out Mount In Black Image 2

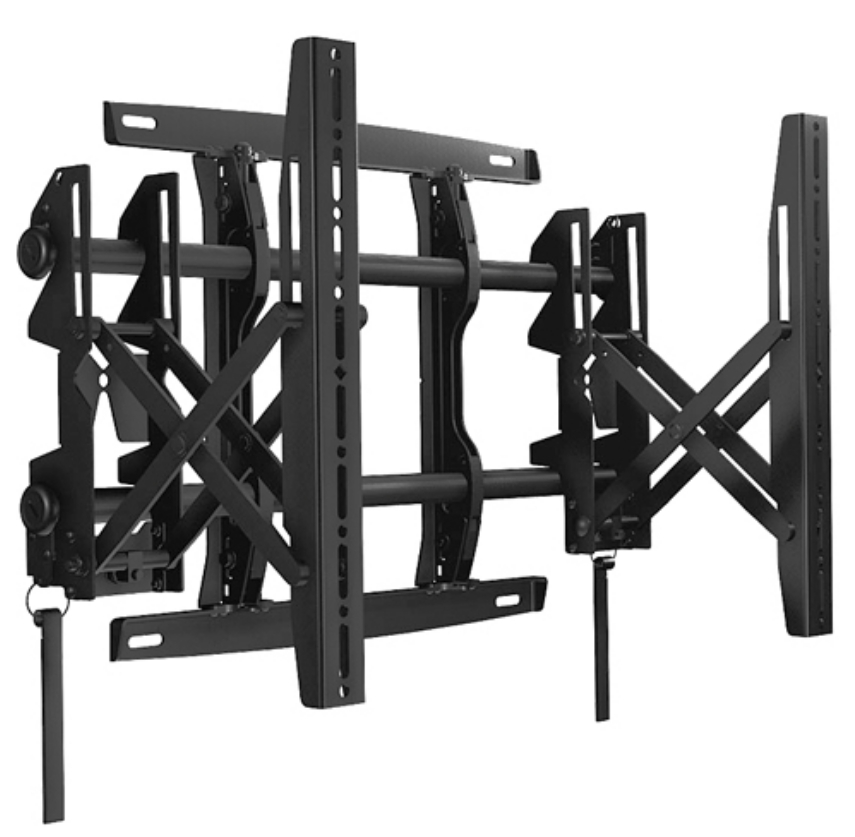

Chief MSMVU Medium FUSION™ Micro-Adjustable Pull-Out Mount In Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This mount from Chief Manufacturing is great for video wall applications, offering easy installation and maintenance for multiple screens.

Note: To ensure this mount works with your equipment check the "Compatibility" tab on Chief's websit

Chief MSMVU Features:

  • Pull-Out Extension allows cable access for installation and servicing of video walls and recessed applications
  • ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
  • Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
  • Can be used with a 2 x 2 video wall matrix or larger

Chief MSMVU Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 14.5" (368.3mm)
  • Manual Height Adjustment: 1
  • Maximum Extension: 10.7" (271.8mm)
  • Minimum Depth: 3.7" (94.mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 540 x 400mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 16.5" x 25.5" x 3.7" (419 x 648 x 94mm)
  • Plumb Adjustment: 2.5 degrees
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 27.70 lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 26 - 47"
  • Wall Stud Compatibility (inches): 16
  • Weight Capacity: 125 lbs (56.7kg)
