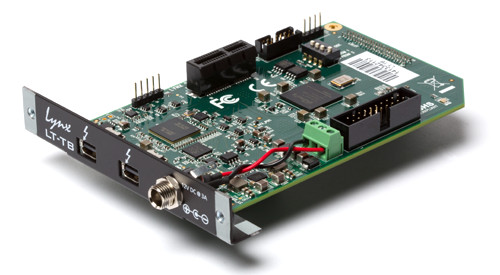

Lynx Studio Technology LT-TB
Thunderbolt LSlot Interface for Hilo/Aurora


Lynx Studio Technology announces the LT-TB Thunderbolt LSlot interface for its Aurora and Hilo converters.
Learn More
Our Price: $595.00
List Price: $650.00
You save 8%!
Write the first review.
Lynx Studio Technology LT-TB
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Lynx Studio Technology announces the LT-TB Thunderbolt LSlot interface for its Aurora and Hilo converters. The LT-TB is a two-port Thunderbolt expansion card that supports daisy-chaining Aurora and Hilo converters and any other certified Thunderbolt device on both Apple and Windows computers. The LT-TB and accompanying Aurora and Hilo models are the first Thunderbolt audio devices certified for Windows as well as Mac.

The LT-TB LSlot card can be installed into any existing Hilo or Aurora with an easy and free firmware update. In addition, Lynx is making Thunderbolt equipped Aurora and Hilo models available at the same time.

The LT-TB, in development for over a year, uses Intel’s Cactus Ridge second-generation Thunderbolt controller. This device allows for a more robust design electrically. Similar to other Lynx products, LT-TB incorporates an FPGA for audio mixing and control functions that can be easily updated in the field.

Months of in-house testing along with support from Apple and Intel assure that LT-TB works well with any other certified Thunderbolt product on the market.

Whereas some earlier Thunderbolt equipped converters are limited to two units and 32 analog channels, the LT-TB can be used in a chain of up to 6 Aurora converters for up to 96 analog channels, plus 96 digital channels on one Thunderbolt port. So theoretically, the upcoming 6 port Mac Pro could deliver up to 1,152 channels.

The Thunderbolt protocol allows up to six devices and one display to be connected to the computer on a single Thunderbolt port. So in addition to Lynx converters, you can have external drives, displays, expansion chassis and so on. The LT-TB has two Thunderbolt ports, which allows this daisy chaining of devices.

One of the other nice features of the LT-TB and other Thunderbolt devices is the ability to plug, unplug and hot-plug them. So you can easily bring in an additional Aurora or Hilo or other Thunderbolt device without needing to reinstall drivers or reset anything. It’s all automatic.

Thunderbolt technology is the fastest connection to your PC at 10Gbs – in each direction, and at the same time. This is twice the speed of USB 3.0. Thunderbolt provides flexibility and simplicity by connecting up to six data and display devices in a daisy-chain.


  • Thunderbolt expansion card for Aurora and Hilo converters
  • Thunderbolt certified for Windows and Mac
  • Extremely low latency
  • Up to 16 total analog and 16 digital I/O channels per LT-TB equipped Aurora 16 or Aurora 16 VT
  • Up to 8 total analog and 8 digital I/O channels per LT-TB equipped Aurora 8
  • User upgradable FPGA adds enhanced 64 x 32 mixing when installed in Aurora
  • Up to 32 I/O channels per LT-TB equipped Hilo
  • Supports full channel count at sample rates up to 192 kHz
  • Supports hot unplug and plug
  • Uses standard Thunderbolt cabling, including optical (not included)
  • Optional power supply available for connecting bus-powered Thunderbolt devices
  • Allows daisy-chaining of multiple Aurora and Hilo converters and other authorized Thunderbolt devices
  • ROHS compliant
  • Designed and manufactured in the USA by Lynx Studio Technology


  • Host Interface: Lynx proprietary LSlot™ Interface, 400 Mbps bi-directional
  • Size: 3.0” H X 5.0” W X 0.75” D
  • EMI Certifications: FCC and CE
  • Shipping Weight: 1 pound
