Lex LSC19-LFC-SPR LSC19 Female Spider Inline Connector with Crimp Termination

OUR PART #: LSC19-LFC-SPR MFR #: LSC19-LFC-SPR

Copied to clipboard

This connector is used for assembly or repair of six circuit break-in cables. ...Read more

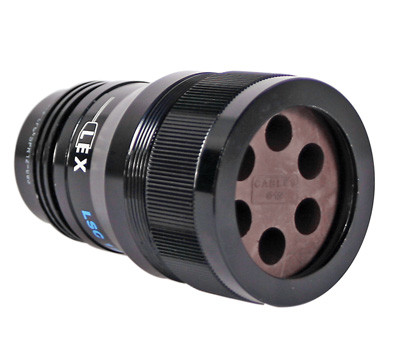

Lex LSC19-LFC-SPR LSC19 Female Spider Inline Connector With Crimp Termination Image 1
Lex LSC19-LFC-SPR LSC19 Female Spider Inline Connector With Crimp Termination

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This connector is used for assembly or repair of six circuit break-in cables. A break-in cable converts six individual single circuit male plugs into one six circuit female connector.

Applications:

  • Motion Picture & Television Production
  • Outdoor Events
  • Entertainment Theatre
  • Concert Touring
  • Live Events
  • Convention Centers
  • Sporting Events
  • OEM

Lex Products Corp LSC19-LFC-SPR Features:

  • Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
  • Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
  • Helps prevent broken conductors and loose or damagedground rings
  • UL Recognized at 23 Amps, 600 VAC
  • Each circuit can carry up to a maximum of 23 Ampscontinuous load
  • “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
  • Machined aluminum housing with hard black anodizedfinish provides enhanced durability
  • Silver plated brass contacts for high conductivity
  • Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Products Corp LSC19-LFC-SPR Specifications:

  • Rating: 23 Amp, 600 VAC
  • Operating Temperature: -55° to +60° C
  • Ingress Protection: IP67 watertight when mated
  • Housing Material: Machined aluminum, hard blackanodized finish
  • Insert: Silicone
  • Cable Diameter Range: (6) 12/3 SJT or SJTO or (6)14/3 SJT or SJTO
  • Termination Type: Crimp
  • Conductor Size: #12 - #16 AWG
  • Contacts: Silver plated brass
