Intelix PS-24D-25 24V DC, 2.5 A Power Supply for DIGI-HD60 Series Extenders

OUR PART #: PS-24D-25

Copied to clipboard

Designed for use with Intelix DIGI-HD60 series extenders... ...Read more

Intelix PS-24D-25 24V DC, 2.5 A Power Supply For DIGI-HD60 Series Extenders Image 1
Intelix PS-24D-25 24V DC, 2.5 A Power Supply For DIGI-HD60 Series Extenders
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

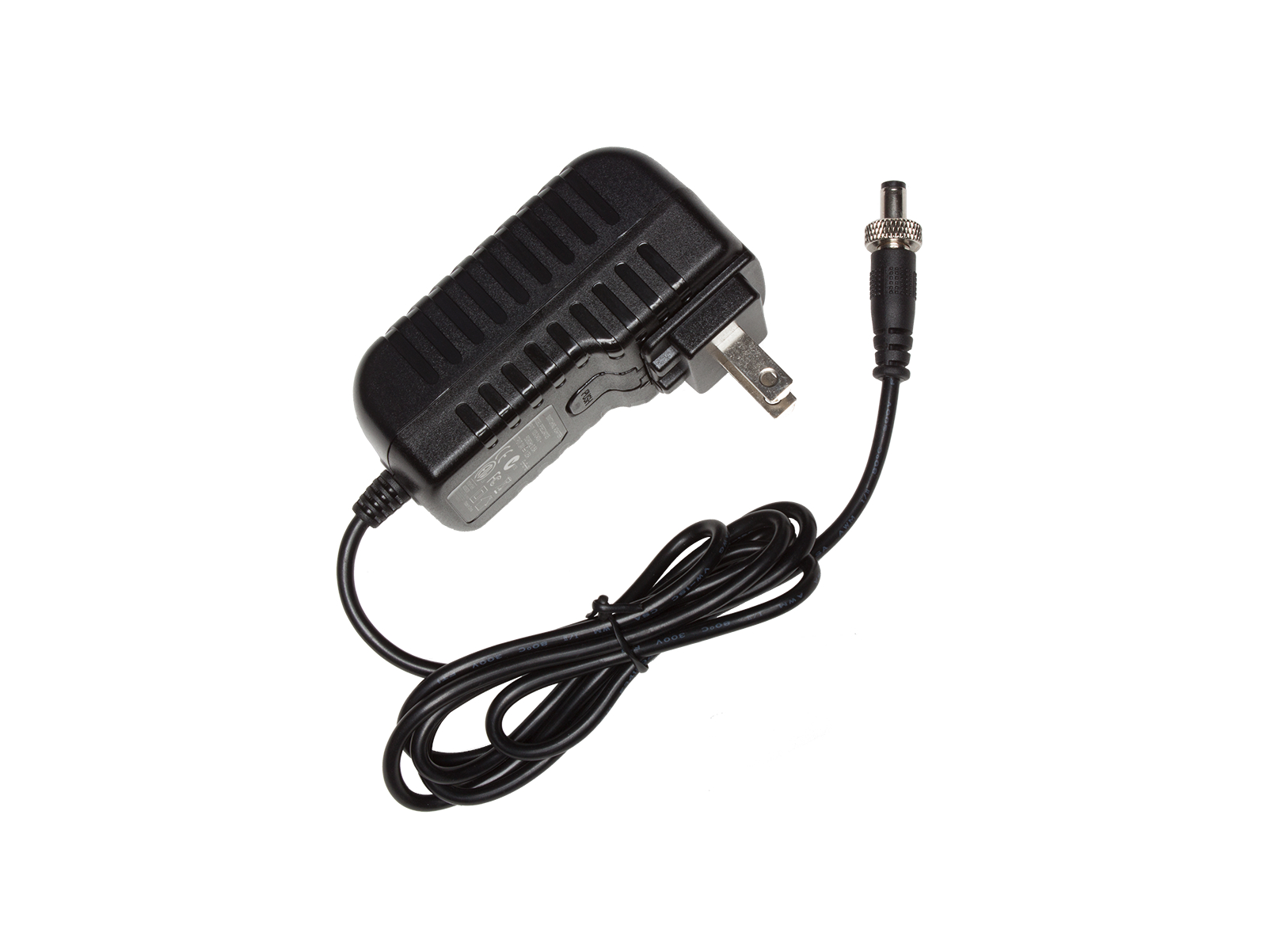

Designed for use with Intelix DIGI-HD60 series extenders, the Intelix PS-24D-25 is a A 24V DC power supply that has a coaxial barrel connector with a threaded collar to ensure a secure power connection with the extender unit. It also comes with AC adapters for the US, AU, EU, and UK markets. Only one power supply is necessary to power both the transmitter and receiver.

Intelix PS-24D-25 Features:

  • International power supply
  • Locking barrel connection for secure power to the extender
  • Includes the following AC adapters: US, UK, EU, AU

Intelix PS-24D-25 Specifications:

  • I/O Connections:
    • AC Adapter: Contacts Two (2) AC contacts
    • DC Connector: One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)
  • Chassis and Environmental:
    • Enclosure: Black ABS plastic
    • Dimensions (without AC adapter): 3.27" x 1.69" x 1.54" (83 x 43 x 39 mm)
    • DC Cable Length: 47.25" ± 7.875" (120cm ± 20cm)
    • Shipping Weight: 0.46 lbs (0.21 kg)
    • Operating Temperature (Environment): +32° to +104° F (0° to +40°C)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): +14° to +140°F (-10° to +60° C)
  • Power and Regulatory:
    • Input Power: 110-240V AC, 50/60 Hz, 0.5 A
    • Output Power: 24V DC, 1.25 A
    • Regulatory: RoHS, CE, FCC, ETL
  • Standard Warranty: 2 years
