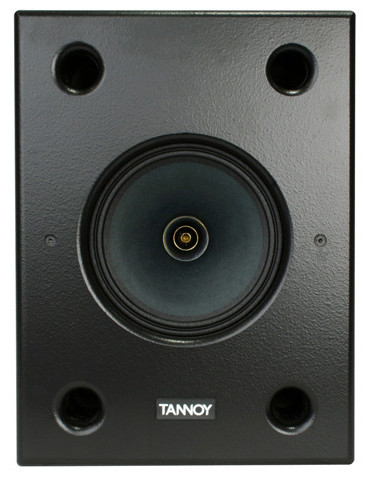

Tannoy DC8I
8" 260W @ 8 Ohm Daul Concentric Speaker


The DC8I was designed to be used in left, centre or right locations.
Learn More

Call for price! Not available online.

Related Products

The DC8I was designed to be used in left, centre or right locations. The DC8i brings audiophile performance to both music and movie applications in vast array of listening and viewing environments.

Built around the unique high sensitivity Tannoy Dual Concentric™ drive unit, the Definition Install range brings class leading accuracy, detail and dynamics to installation applications ranging from media rooms to home theatre and boardrooms through to high end marine interiors.

The compact MDF cabinet is vented and rigidly constructed with extensive bracing to be acoustically inert. The unit can be mounted either horizontally or vertically using the integral keyhole mounts and the supplied wall plate.

The speaker is designed to be hidden within a custom designed installation; mounted on wall either behind the screen or acoustically transparent decorative panels with no appreciable loss of performance.


  • Auditoria / Lecture Theatres
  • Conference rooms
  • Corporate AV
  • Museums & Galleries
  • Retail Spaces & Malls
  • Theme Parks

Tannoy DC8I Features:

  • 200mm (8") high sensitivity, point source and constant directivity Dual Concentric™ drive unit
  • Constant time delay over the frequency spectrum
  • Exceptional transient performance
  • 90° conical dispersion
  • Superior harmonic alignment
  • Natural, clean and integrated sound
  • Enhanced intelligibility, sound staging and dynamics
  • Recommended amplifier power 100 to 200W @ 8 Ohms
  • Sensitivity 92dB (1W = 2.83V for 8 Ohms)
  • Maximum SPL 119dB average
  • Rugged construction MDF enclosure, vented, internally braced and finished with textured black paint
  • Multiple hanging options

Tannoy DC8I Specifications:

  • Frequency Range: 62Hz - 45kHz
  • System Sensitivity (1W @1m): 92dB (1W = 2.83V for 8Ohms)
  • Dispersion (-6dB): 90° conical
  • Driver Complement: 1 x 200mm (8.00”) constantdirectivity Dual Concentric™
  • Crossover: Passive 1.7kHz with dynamic HF protection
  • Directivity Factor (Q): 5.7 averaged 1kHz to 10kHz
  • Directivity Index (DI): 7.0 averaged 1kHz to 10kHz
  • Rated Maximum SPL:
    • Average: 113dB
    • Peak: 119dB
  • Power Handling:
    • Average: 130W
    • Programme: 260W
    • Peak: 520W
  • Recommended Amplifier Power: 100 - 260W @ 8 Ohms
  • Nominal Impedance: 8 Ohms
  • Distortion:
    • 10% Full Power (8.94V)
      • 2nd Harmonic
        • 250Hz: 0.4%
        • 1kHz: 0.28%
        • 10kHz: 1.50%
      • 3rd Harmonic
        • 250Hz: 0.35%
        • 1kHz: 0.66%
        • 10kHz: 0.35%
    • 1% Full Power (2.83V)
        • 2nd Harmonic
        • 250Hz: 0.11%
        • 1kHz: 0.12%
        • 10kHz: 0.51%
      • 3rd Harmonic
        • 250Hz: 0.15%
        • 1kHz: 0.34%
        • 10kHz: 0.17%
  • Enclosure: MDF, vented and internally braced
  • Finish: Textured black paint
  • Connectors: 2 x 4mm gold plated binding posts
  • Fittings:
    • 8 x M10 bracket inserts
    • 4 x wallplate keyhole fixings allowing landscape or portrait mounting orientations.
    • 1 x Wall mounting plate
  • Dimensions (HxWxD): 15.51" x 11.57" x 8.46"
  • Weight: 20.90lbs
