Brainstorm Electronics SR-TCG
TCG (Time Code Generator) Software Option for the SR-112

OUR PART #:  SR-TCG

The TCG is a software module option for Brainstorm Electronics SR-112 that enables the user to generate and repair time code.
Learn More
Our Price: $425.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Brainstorm Electronics SR-TCG
Qty:

Similar Products

The TCG is a software module option for Brainstorm Electronics SR-112 that enables the user to generate and repair time code. Installation is very simple as it is software only and doesn't require any hardware modification.

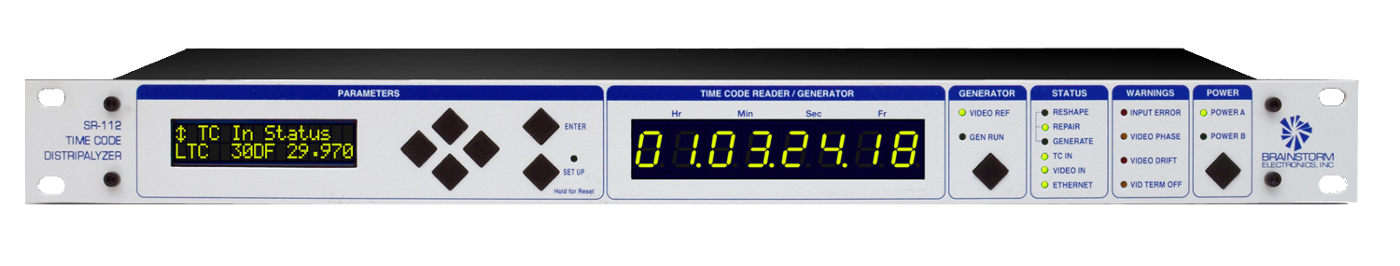

Product shown in image is for illustrative purposes only. Actual product is a software option that works with the SR-112 unit displayed above.

Features:

  • Generating Time Code: The TCG can be used as a standalone master generator, locked to it's high precision internal crystal orgenlocked to an external video sync including HD and SD.
  • Repairing Time Code: The TCG can also be used to repair time code byregenerating or jamsyncing incoming time code.
      -  Drop OutRepairs: In Repair mode, time code is regenerated and fills in drop outs.Flywheeling times available are: 5fr, 15fr or 8. The TCG can lock to eitherthe incoming code or to an external video reference.
      -  JitterReduction: The regenerator uses a proprietary form of phase locking to clockthe output time code. This is continuously updated to follow the inputvariations, thus maintaining sync while substantially reducingjitter.
      -  Auto Video Phase Correction: If the incoming code issynchronous but out of phase with the video reference, the TCG automaticallyaligns time code to the closest video frame edge.
      -  Time CodeDelay: The TCG can delay the source time code up to 60 miliseconds. Thisfeature can be used when audio is ahead of the video.

Specifications:

  • Generate Mode: Mode used to generate new time code-internal crystal or external reference.
  • Reference: Internal / Ext Video (HD & SD)
  • Format: 24/ 25/ 30ND / 30DF
  • Rates: 23.97 /24 / 25 / 29.97 /30
  • Start Time: User definable
  • Gen Run Button: Starts and stops the generator from the front panel
  • Repair Mode: Mode used to repair existing time code, by either regenerating or Jam Syncing
  • Regenerate: Regenerates the exact input time code.
      - Locks to the incoming time code and reduces jitter.
      -  Idealfor edit lists and loops.
      -  1 frame delay
  • Jam Sync: Generates new time code based on the incoming timecode.
      -  Locks to external video
      -  SelectableRamp up times: 5fr / 1.5 sec / 3 sec
      -  Selectable Freewheelwindow: 5fr/ 15fr / infinity
      -  Video PhaseCorrection
      -  Drift warning
  • Input Delay: Enables the user to create an offset, in ms, between the input and the output. Ideal when the audio is ahead of the picture forlip-syncing. Available in all modes.
