Product Overview

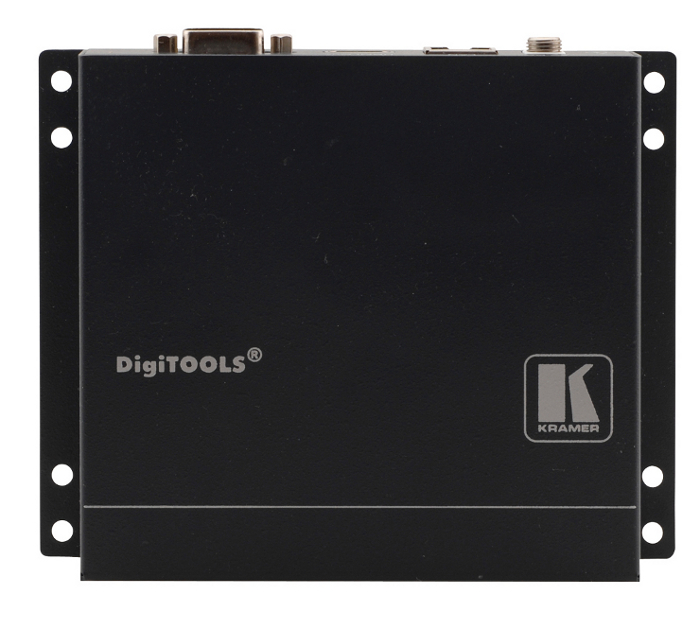

The KDS-EN2T from Kramer Electronics is an IP-based transmitter for HDMI signals. Using JPEG2000 compression technology, the KDS-EN2T sends a visually lossless HD image with digital stereo over a 1000BaseT LAN to a KDS-EN2R receiver for multicasting, video wall and digital signage applications.
Applications
- Digital signage, retail centers and leisure facilities.
- Transportation hubs, educational facilities and corporate environments.
Features
- High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
- High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system, as well as over 200 receivers from each transmitter in multicasting mode.
- Multicasting and Broadcasting Architecture - Each channel requires about 55 Mbps.
- Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
- HDTV Compatible.
- Controls - Group ID can be defined either via the built-in DIP-switches or by using the remote utility.
- RS-232 Pass-Thru - Controls the HDMI display from the transmitter side.
- Compact DigiTOOLS® - With a built-in mounting plate for versatile installation.
- Size - DigiTOOLS®
Specifications
- Input: 1 HDMI connector.
- Output: 1 LAN connector on an RJ-45 connector.
- Ports: Ethernet, RS-232.
- Max. Resolution: 1080p.
- Standards Compliance: HDMI and HDCP.
- Power Source: 5V DC, 900mA.
- Operating Temperature: 32° to 131°F (0° to +50°C).
- Storage Temperature: -49° to 162°F (-10° to +80°C).
- Humidity: 10% to 85%, RHL non-condensing.
- Dimensions (WxDxH): 4.7" x 3.5" x1.1" (12.1cm x 9.0cm x 2.8cm)
- Weight: 1.76lbs (0.8kg) approx.
- Accessories: 1 power supply.
