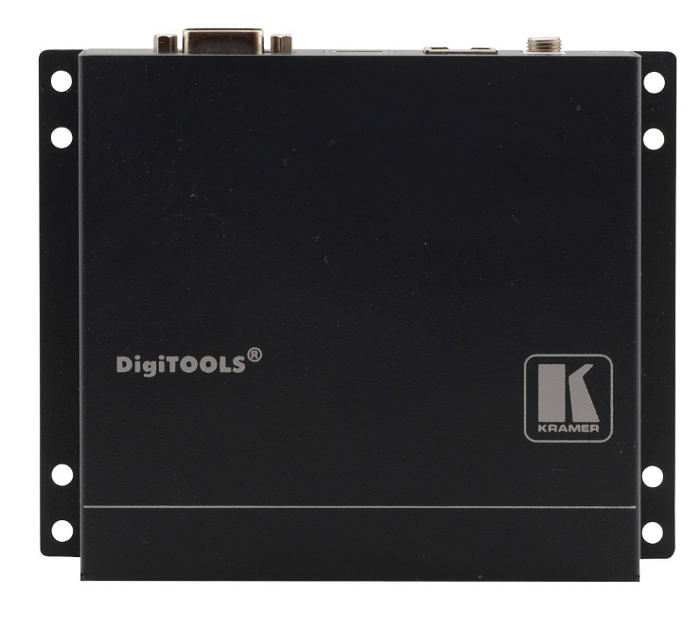

Kramer KDS-EN2R
HDMI over IP Receiver


Kramer Electronics produces the KDS-EN2R which is an IP-based receiver for HDMI signals.
Learn More
Our Price: $716.00
List Price: $895.00
You save 20%!
Write the first review.
Kramer KDS-EN2R
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Kramer Electronics produces the KDS-EN2R which is an IP-based receiver for HDMI signals. Using JPEG2000 compression technology, the KDS-EN2R receives a visually lossless HD image with digital stereo over a 1000BaseT LAN from a KDS-EN2T transmitter for multicasting, video wall and digital signage applications.


  • Digital signage, retail centers and leisure facilities.
  • Transportation hubs, educational facilities and corporate environments.

Kramer KDS-EN2R Features:

  • High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
  • High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system, as well as over 200 receivers from each transmitter in multicasting mode.
  • Multicasting and Broadcasting Architecture - Each channel requires about 55Mbps.
  • Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
  • HDTV Compatible.
  • Controls - Group ID can be defined either via the built-in DIP-switches or by using the remote utility.
  • RS-232 Pass-Thru - Controls the HDMI display from the transmitter side.
  • Compact DigiTOOLS® - With a built-in mounting plate for versatile installation.
  • Size - DigiTOOLS®

Kramer KDS-EN2R Specifications:

  • Input: 1 LAN on an RJ-45 connector
  • Output: 1 HDMI connector
  • Ports: Ethernet, RS-232
  • Max. Resolution: 1080p
  • Standards Compliance: HDMI and HDCP
  • Power Source: 5V DC, 650mA)
  • Operating Temperature: 32° to 131°F (0° to +50°C)
  • Storage Temperature: -49° to 162°F (-10° to +80°C)
  • Humidity: 10% to 85%, RHL non-condensing.
  • Dimensions (WxDxH): 4.7" x 3.5" x 1.1" (12.1cm x9.0cm x 2.8cm)
  • Weight: 1.76lbs (0.8kg) approx.
  • Accessories: 1 power supply
