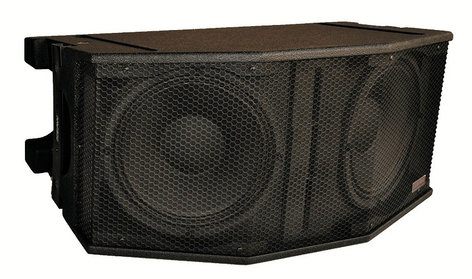

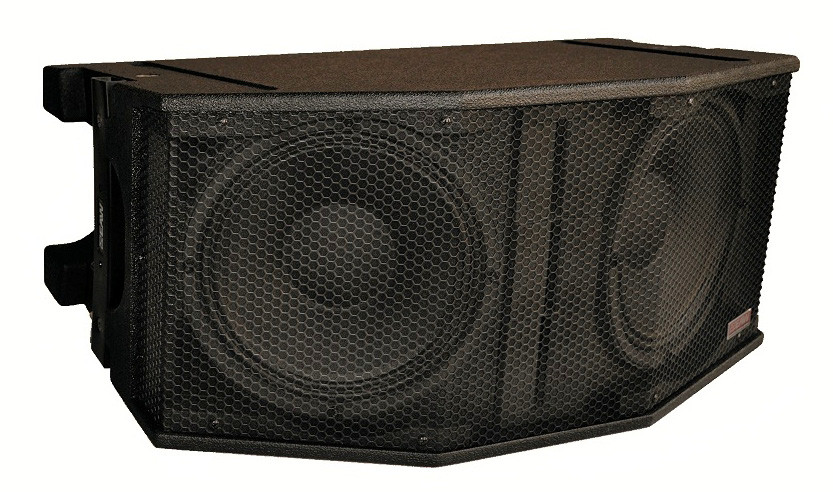

EAW-Eastern Acoustic Wrks JFL213
2-Way 10" Speaker System in Black

OUR PART #:  JFL213-BLACK

The JFL213 is a switchable (bi-amplified or full range) two-way system in a constant curvature line array enclosure.
Learn More
Our Price: $2,664.00
Write the first review.
EAW-Eastern Acoustic Wrks JFL213
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JFL213 is a switchable (bi-amplified or full range) two-way system in a constant curvature line array enclosure. Dual 10-in LF cones, vented; 3x.75-in exit HF compression driver, horn-loaded. 110 degree (h) by 15 degree (v) coverage pattern.

The JFL213 compact, two-way line array module features a range of EAW’s most innovative line array technologies within a mobile, light-weight package appropriate in a wide range of small- to medium-sized venues. With its companion subwoofer, the JFL118, this easy-to-use system solves problems in both portable and permanently installed applications.

The JFL213’s two-way design mounts dual 10-in cone transducers in an optimally vented enclosure and spaced to extend pattern control into the low frequency range. Three horn-loaded, 0.75-in exit / 1.75-in voice coil compression drivers deliver even dispersion of high frequency information over the entire 110° horizontal coverage area.

EAW engineers optimized the JFL213’s size, shape and weight for easy transport and setup by a single person, with side handles designed as part of the rigging system and aligned with the enclosure’s center of balance. Users can mount up to two JFL213s on a loudspeaker stand with a 35mm/1.38-in diameter pole. The cleverly-designed, dual-angle pole mount cup allows the bottom enclosure to be aimed 0° or -15°. (A two-module array with the lower modules aimed at -15° aims the upper module at 0°.) The JFL118 features an integrated pole mount cup, letting it serve as a large, stable base for pole mounting.

The JFL213’s ultra-strong rigging system allows users to hang up to five modules with a 10:1 safety factor, which meets or exceeds all standards enforced throughout the world. A single person can easily connect the modules to the accessory FB221 Fly Bar as well as to each other. The FB221 also doubles as a ground stack base for up to four JFL213s. For permanent installation, each JFL213 provides a pair of M10 threaded mounting points.

The JFL213 allows users to switch between single- or bi-amp powering modes. The JFL213 delivers optimal performance when operated in bi-amp mode with an EAW UX Series digital processor. In addition to the HF shading filters, UX Series digital processor deliver EAW Focusing™ setting, which correct for anomalies that occur in the time domain of any loudspeaker or transducer.

Specifications:

  • Operating Range (-10 dB, Hz): 65 - 20k
  • Axial Sensitivity (1W @ 1m, dB SPL)
    • LF: 96
    • HF: 102
    • Full Range: 95
  • Power Handling / Impedance (Watts @ Ohms)
    • LF: 800 @ 8
    • HF: 160 @ 8
    • Full Range: 800 @ 8
  • Calculated Maximum Output Peak (dB SPL)
    • LF: 131
    • HF: 130
    • Full Range: 130
  • Calculated Maximum Output Long Term (dB SPL)
    • LF: 125
    • HF: 124
    • Full Range: 124
  • Nominal Coverage (degrees)
    • Horizontal: 110
    • Vertical: 15
  • Subsystems
    • LF: 2x 10-in cone, vented
    • HF: 3x .75-in exit compression driver, horn-loaded
  • Powering: Switchable: bi-amplified/passive
  • Accessories
    • Eye Bolt Forged Shoulder M10 X 1.5 X 37mm: 0029818
    • Flybar JFL & HDA Black [FB221]: 2036411
  • Dimensions:
    • 12.37"(H) x 24.84"(W) 15.64"(D)
    • Trap. Angle (degrees top and bottom): 7.5
  • Weights: 62 lbs
