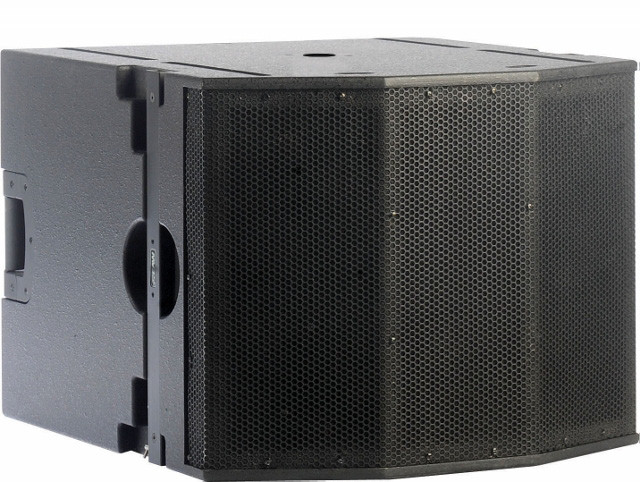

EAW-Eastern Acoustic Wrks JFL118
Black Companion Subwoofer for the JFK210 or JFL213

OUR PART #:  JFL118-BLACK

The JFL118 is a dedicated subwoofer system in an enclosure designed to work with a JFL210 line array. 18-in sub bass cone, vented and in black finish.
Learn More
Our Price: $2,154.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks JFL118
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JFL118 is a dedicated subwoofer system in an enclosure designed to work with a JFL210 line array. 18-in sub bass cone, vented and in black finish.

The JFL118 is a light weight, high-powered, flyable, single 18-inch subwoofer that extends the low frequency response of the companion JFL210 or JFL213 full range line array loudspeakers. JFL118 subwoofers may be ground stacked, flown as part of a JFL210 or JFL213 array or flown separately alongside a JFL210 or JFL213 array. Integral, proprietary rigging will suspend up to six of any combination of JFL118 and JFL210/ JFL213 enclosures with a 10:1 design factor. The optional FB121 fly bar includes multiple suspension points that allow users to easily set an array’s tilt angle. The JFL118 also includes M10 threaded suspension points that allow users to deploy arrays in permanently installed applications by means of cost-effective, forged shoulder eyebolts.

The JFL118 includes a metal cup that allows up to two JFL210 or JFL213 main channel loudspeakers to be pole mounted above up to two stacked JFL118’s. Alternately, JFL210 or JFL213 loudspeakers may be stacked directly atop the JFL118. In this instance, all enclosures lock together using their integral rigging.

JFL118 subwoofers utilize Neutrik® Speakon® STX Series connectors. The STX Series’ all-metal housings are extremely rugged, and feature a built-in gasket providing weather protection to IP54 when used with companion NLT4FX in-line cable connectors. The rear of each JFL118 features three NL4 connectors. Two are used for subwoofer and optional high passed signal input, while the third is used as an output to loop the high-passed signal to JFL210’s, JFL213’s or other loudspeakers.

Specifications:

  • Operating Range (-10 dB, Hz):30 - 150
  • Axial Sensitivity (1W @ 1m, dB SPL): Sub: 94
  • Power Handling / Impedance: Sub - Single Amp: 800 Watts @ 8 Ohms
  • Calculated Maximum Output Peak (dB SPL): Sub (whole space): 129
  • Calculated Maximum Output Long Term (dB SPL): Sub (whole space): 123
  • Subsystems: Sub: 18-in cone, vented
  • Powering: Single
  • Accessories (Sold speparately)
  • Fly Bar Black FB121: 0031170
  • Caster Kit CSTR118: 0032377-90
  • M10 x 1.5 Forged Shoulder Eyebolt: 0029818
  • SPM200 Adjustable Loudspeaker Pole: 2035170-02
  • Dimensions: 24.80"(H) x 19.80"(W) x 29.10"(D)
  • Weights: 98 LBs
