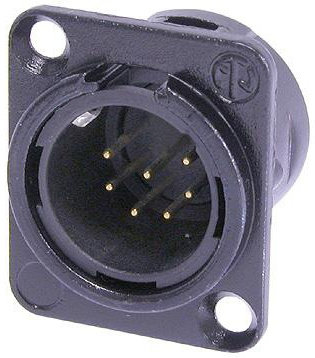

Neutrik NC7MDL-B-1
7-Pin XLR-M Connector with Black Housing and Gold Contacts

OUR PART #:  NC7MDL-B-1

Neutrik's NC7MDL-B-1 is a 7-pole male receptacle with solder cups, black metal housing, and gold contacts.  Universal D-size metal body XLR panel mount series.
Learn More
Our Price: $11.82
List Price: $16.61
Save up to 40% when you order by quantity!
  • Buy 25: $10.68 each.
  • Buy 50: $10.30 each.
  • Buy 100: $9.91 each.
Write the first review.

Related Products

Neutrik's NC7MDL-B-1 is a 7-pole male receptacle with solder cups, black metal housing, and gold contacts.  Universal D-size metal body XLR panel mount series.  UL recognized component.

Features:

  • Robust "D" metal shell
  • Standardized D-sized 24 mm panel cutout
  • Solder cups

Technical Information:

  • Connection Type: XLR
  • Gender: male

Electrical Specifications:

  • Capacitance between contacts: = 9 pF
  • Contact resistance: = 5 mOhm (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GOhm (initial)
  • Rated current per contact: 5 A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D

Material Specifications:

  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium

Environmental Specifications:

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
