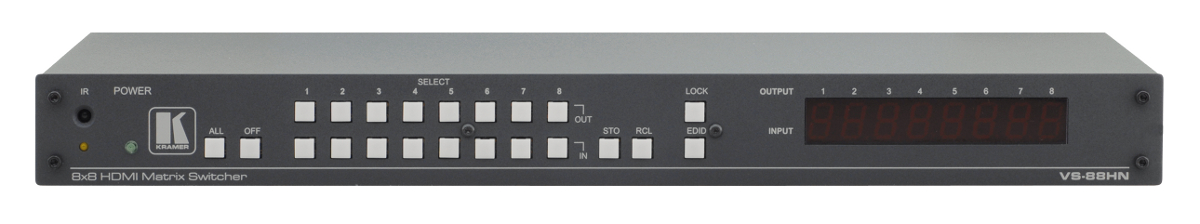

Kramer VS-88HN
8 x 8 HDMI Matrix Switcher


Kramer Electronics VS-88HN is a high-performance matrix switcher for HDMI signals.
Learn More
Our Price: $3,356.00
List Price: $4,195.00
You save 20%!
Write the first review.
Kramer VS-88HN
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Kramer Electronics VS-88HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.


  • Conference room presentations
  • Advertising
  • Rental and staging


  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphicchannel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, Dolby® TrueHD,Dolby Digital Plus, DTS-HD®, and linear PCM 7.1 surround sound.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology -Rebuilds the digital signal to travel longer distances.
  • Output Disconnect - Each output.
  • Front Panel Control Lockout.
  • Memory Locations - Stores multiple switches aspresets to be recalled and executed when needed.
  • Flexible Control Options - Front panel, IR remote,RS-232 (K-Router™ Windows®-based software is included), Ethernet(Windows®-based Ethernet Configuration Manager & Virtual Serial PortManager is included).
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack "ears" included.


  • Inputs: 8 HDMI connectors.
  • Outputs: 8 HDMI connectors.
  • Max. Data Rate: 6.75Gbps (2.25Gbps per graphicchannel).
  • Compliance With HDMI Standard: HDMI and HDCP.
  • Resolution: Up to UXGA; 1080p.
  • Power Consumption: 100-240V AC, 50/60Hz, 33VA.
  • Controls: Front panel buttons, infrared remotecontrol transmitter, RS-232, Ethernet.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 2.5kg (5.5lbs) approx.
  • Accessories: Power cord, IR transmitter, rack ”ears”.
