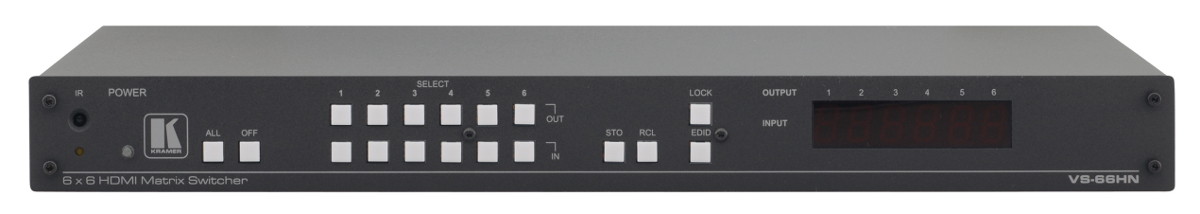

Kramer VS-66HN
6 x 6 HDMI Matrix Switcher

OUR PART #:  VS66HN

From Kramer Electronics comes the VS-66HN, a high-performance matrix switcher for HDMI signals.
Learn More
Our Price: $2,636.00
List Price: $3,295.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS-66HN
Qty:
In Stock

Similar Products

From Kramer Electronics comes the VS-66HN, a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Applications:

  • Conference room presentations
  • Advertising applications
  • Rental and staging

Kramer VS-66HN Features:

  • Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support: Deep Color, x.v.Color™, Dolby® TrueHD,Dolby Digital Plus, DTS-HD®, and linear PCM 7.1 surround sound
  • 3D Pass-Through
  • Kramer Equalization & re-Klocking™ Technology: Rebuilds the digital signal to travel longer distances
  • I-EDIDPro™ Kramer Intelligent EDID Processing™: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
  • Output Disconnect: For each output
  • Front Panel Control Lockout
  • Memory Locations: Stores multiple switches aspresets to be recalled and executed when needed
  • Flexible Control Options: Front panel, IR remote,RS-232 (K-Router™ Windows®-based software is included), Ethernet(Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included)
  • Worldwide Power Supply: 100-240V AC
  • Standard 19” Rack Mount Size: 1U. Rack "ears" included

Kramer VS-66HN Specifications:

  • Inputs: 6 HDMI connectors
  • Outputs: 6 HDMI connectors
  • Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
  • Compliance With HDMI Standard: HDMI and HDCP
  • Resolution: Up to UXGA; 1080p
  • Power Consumption: 100-240V AC, 50/60Hz, 40VA
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 19” x 7” x 1U
  • Weight: 2.5kg (5.5lbs) approx.
  • Accessories: Power cord, IR transmitter, rack ”ears”
  • Options: External remote IR receiver cable
