Gefen GTB-HD4K2K-642-BLK ToolBox 6x2 Matrix for HDMI with Ultra HD Support in Black

OUR PART #: GTB-HD4K2K-642-BLK

Copied to clipboard

The GefenToolBox 6x2 Matrix for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. ...Read more

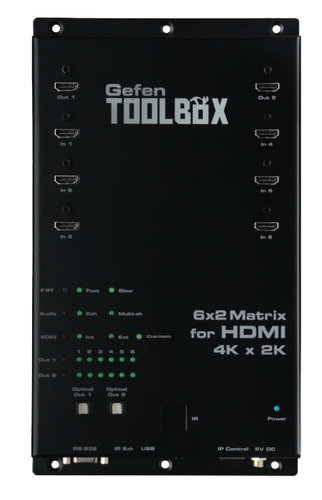

Gefen GTB-HD4K2K-642-BLK ToolBox 6x2 Matrix For HDMI With Ultra HD Support In Black Image 1

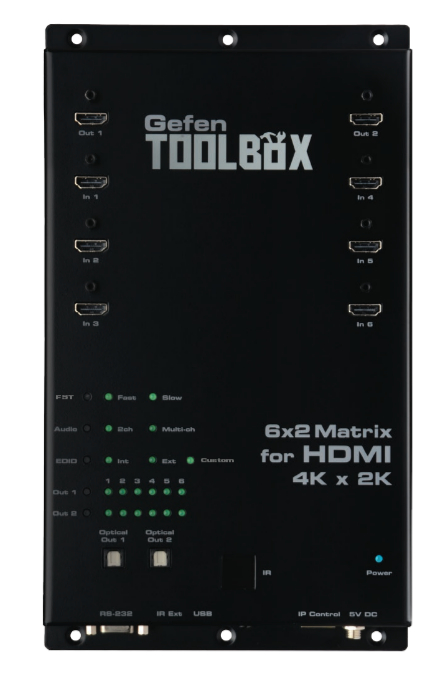

Gefen GTB-HD4K2K-642-BLK ToolBox 6x2 Matrix For HDMI With Ultra HD Support In Black Image 2
Gefen GTB-HD4K2K-642-BLK ToolBox 6x2 Matrix For HDMI With Ultra HD Support In Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The GefenToolBox 6x2 Matrix for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to six Ultra High Definition 4K x 2K or 1080p Full HD sources to be routed to up to two Ultra HD displays.

This product supports resolutions up to 4K x 2K (3840 x 2160 @ 30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD® Master Audio™ are also supported. In addition to through HDMI, digital audio can also be outputted via the two TOSLINK® optical connectors for use with digital audio processors. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.

Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST was created to improve the lengthy HDMI authentication process, based on the HDMI and HDCP specifications. FST allows connecting/disconnecting or turning ON / OFF of displays.

Connect up to six Ultra Hi-Def sources to the HDMI inputs on the matrix using HDMI cables. Connect up to two Ultra HD displays to the HDMI outputs. Using TOSLINK cables, connect up to two A/V Receivers to the Optical outputs. Connect an Ethernet cable from the network to the RJ-45 connector to use the built-in web server or Telnet /UDP capability to control routing, EDID management, and other functions. Connect an RS-232 cable between an automation control device such as Gefen EXT-PACS and GTB-MINI-PACS and the matrix. Connect the included locking power supply to the matrix and to an available electrical outlet. Apply power to the source and displays. The HD sources can now be routed to the displays using the front panel push-buttons, IR remote control, RS-232, Telnet, UDP, or web server interface.

Applications:

  • The Gefen ToolBox 6x2 Matrix is ideal for home theater systems, multiroominstallations, retail establishments, sports bars, schools, museums,hospitals, hotel lobbies, and any other installations where Ultra HighDefinition HDCP-compliant AV content from up to 6 HDMI sources needs to berouted to up to two Ultra HD displays. Also features TOSLINK output for easyconnection to a receiver.

What's in the box?

  • (1) 6x2 Matrix for HDMI 4Kx2K(GTB-HD4K2K-642/GTB-HD4K2K-642-BLK)
  • (1) DB-9 Cable (CAB-DB9-6MF)
  • (1) IR Remote (RMT-848IRN)
  • (1) 5V DC Power Supply (EXT-PS526AIP-LP)
  • (1) Quick-Start Guide (QSG-GTB-HD4K2K-642)

Features:

  • Routes six Ultra Hi-Def sources to two Ultra HDdisplays
  • Supports resolutions up to Ultra HD 4K x 2K (3840 x2160 @ 30Hz)
  • Supports 12-bit Deep Color
  • 3DTV pass-through
  • Lip Sync pass-through
  • Push button controls for Routing, FST Modes, Audio,and EDID management
  • FST Technology speeds up HDCP authentication process
  • Advanced EDID Management for rapid integration ofsources and displays
  • Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital®Plus, and DTS-HD® Master Audio™
  • Supports the use of DVI sources and DVI displays withHDMI-to-DVI adapters (not included)
  • RS-232 Serial interface for remote control using acomputer or automation control system
  • IP control via Telnet, UDP, and the built-in webserver interface
  • IR remote control
  • Field-upgradeable firmware via Mini-USB and IP ports
  • Locking Power Supply
  • Surface-mountable
  • Available in Black or White

Specifications:

    • Maximum Pixel Clock: 300 MHz
    • HDMI Input Connectors: (6) Type A 19-pin female,locking
    • HDMI Output Connectors: (2) Type A 19-pin female,locking
    • Digital Audio Outputs: (2) TOSLINK®
    • USB Port: (1) Mini-B
    • RS-232 serial port: (1) DB-9, female
    • Ethernet (IP Control) Port: (1) RJ-45 jack
    • FST Selector: (1) tact-type, recessed push-button
    • Audio Selector: (1) tact-type, recessed push-button
    • EDID Selector: (1) tact-type, recessed push-button
    • Routing Selectors: (2) tact-type push-buttons
    • Power Indicator: (1) LED, blue
    • FST Indicators: (2) LED, green
    • Audio Indicators: (2) LED, green
    • EDID Indicators: (3) LED, green
    • Routing Indicators: (12) LED, green
    • IR Sensor: (1), on front panel
    • R Extender Port (Receiver): (1) 3.5mm mini-stereojack
    • DC Power Connector: (1) Locking type
    • Power Supply: 5V DC
    • Power Consumption: 20 Watts (max.)
    • Operating Temperature: +32 to 104 °F (0 to +40 °C)
    • Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x301mm x 26mm)
    • Shipping Weight: 6 lbs. (2.7 kg)
  • NOTE Features and Specifications are subject to change without notice.
