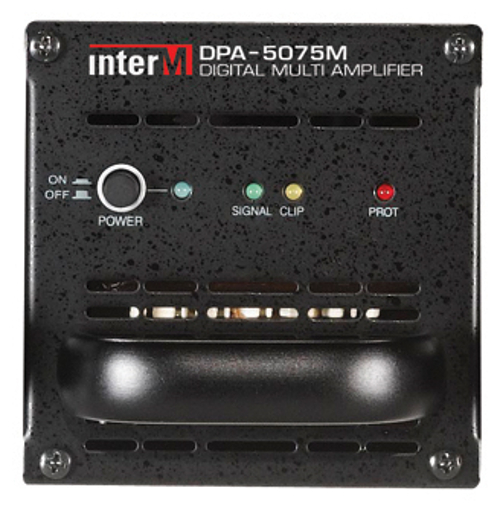

Inter-M Americas Inc DM75
75W Module Amp

OUR PART #:  DM-75

The Inter-M  Amiericas Inc DM75 is a 75W module type amp for the DPA-5075M.
Learn More
Our Price: $333.45
List Price: $366.80
You save 9%!
Write the first review.
Inter-M Americas Inc DM75
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Inter-M  Amiericas Inc DM75 is a 75W module type amp for the DPA-5075M.

Inter-M Americas Inc DM-75 Features:

  • +1 channel, Spare-Amplifier switch function
  • Low power consumption and low heat generation with
  • Digital Amplifier and SMPS(Switching Mode Power Supply)
  • Independent power (SMPS) design for each module.
  • AC 120V, 220~240V 50/60 Hz and DC 24V
  • HPF (High Pass Filter) : 65Hz / 400Hz (-3dB)
  • Signal mapping function.
  • Output bridge function.
  • Input signal and status display LED for each module
  • Status link communication between DPA-5075M (RS-422)
  • DPA-5075M status-check functions from PC (RS-232)
  • Protection circuit for over-heating, over-current and speaker short circuit.
  • Socket contact point protection circuit
  • Balanced input
  • Volume level setup function (internal): -12dB (factory setup)

Inter-M Americas Inc DM-75 Specifications:

  • Rated Output: 75W
  • Speak out/Impedance: 70V/65.3 ohms, 100V/133.3 ohms
  • Input Sensitivity: 1V/10 KOhms balance
  • THD (AES17):
    • Rated Output (75W, 1kHz): Less than 1%
    • 1/3 Rated Output( 25W, 1kHz): Less than 0.1%
  • Signal to Noise Ratio (20 kHz LPF, A-WTD): More than 90 dB
  • High Frequency Characteristics (1 W, 0dB+1/3dB):
    • 100V: More than 20kHz
    • 70V: More than 18kHz
  • Low Frequency Characteristics (1W, -3dB+2dB):
    • Select 65Hz High Pass Filter
    • Select 400Hz High Pass Filter
  • Operating Temperature: -10°C - 40°C
  • Power Source: AC 120V, 220-240V, 50/60Hz, DC24V
  • Power Consumption (1/8 Prated):
    • DPA-5075M+DM-75 5EA - 130W
    • DPA-5075M+DM-75 2EA - 50W
  • Weight: 4.2 lbs (1.9 kg)
  • Dimensions (WxHxD): 3.4" x 3.5" x 10.6" (86.6 x 87.6 x 270.2 mm)
